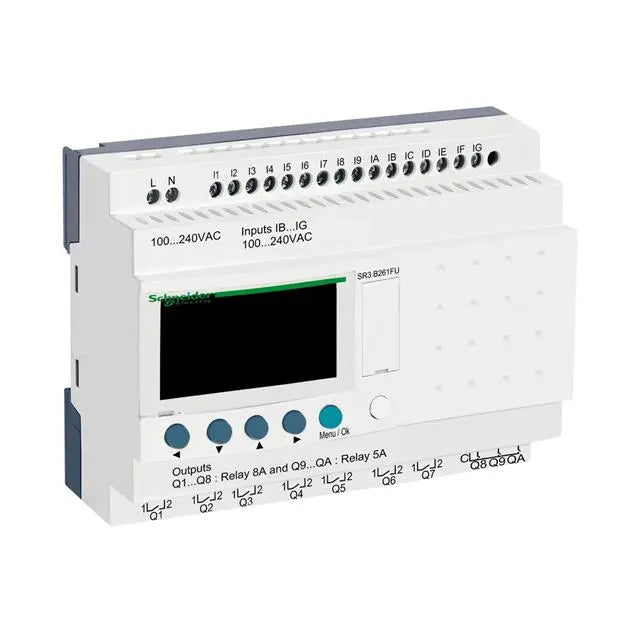

Schneider Electric SR3B261FU | Zelio Logic Smart Relay – 26 I/O
Overview
The Schneider Electric SR3B261FU is a compact and versatile Zelio Logic smart relay, ideal for simple automation tasks in small machines, building management, and lighting systems. It features 26 integrated I/O, supports 100–240V AC supply voltage, and includes an LCD display for easy local monitoring and configuration.
Key Features
-
Integrated I/O:
-
16 digital inputs
-
10 digital outputs (relay)
-
-
Display & Buttons:
-
Built-in backlit LCD screen
-
Navigation keys for local control and diagnostics
-
-
Power Supply: 100–240V AC
-
Programming Options:
-
Zelio Soft software (ladder logic or function block diagram)
-
Local keypad programming
-
-
Memory Backup: EEPROM for data retention without battery
-
Clock/Timer Functions: Built-in real-time clock for scheduling
Technical Specifications
-
Model: SR3B261FU
-
Series: Zelio Logic
-
Power Supply: 100–240V AC
-
Inputs: 16 digital (24V AC/DC)
-
Outputs: 10 relay (8 A max per output)
-
Display: 4 lines, 18 characters each
-
Programming Interface: Mini USB or via display
-
Operating Temperature: -20°C to +55°C
-
Mounting: DIN rail or panel mount
-
Protection Rating: IP20 (body), IP40 (front)
-
Dimensions (W x H x D): 126 mm x 90 mm x 59 mm
-
Weight: Approx. 0.4 kg
Applications
-
Lighting and HVAC Control
-
Access Control Systems
-
Pump and Motor Control
-
Basic Process Automation in Small Equipment
Why Choose the Schneider Electric SR3B261FU?
-
All-in-One Smart Relay with Display and I/O
-
User-Friendly Programming with PC or keypad
-
Flexible Installation and Reliable Performance
-
Cost-Effective Solution for Simple Automation
Order Now
Fast shipping and worldwide delivery available.
