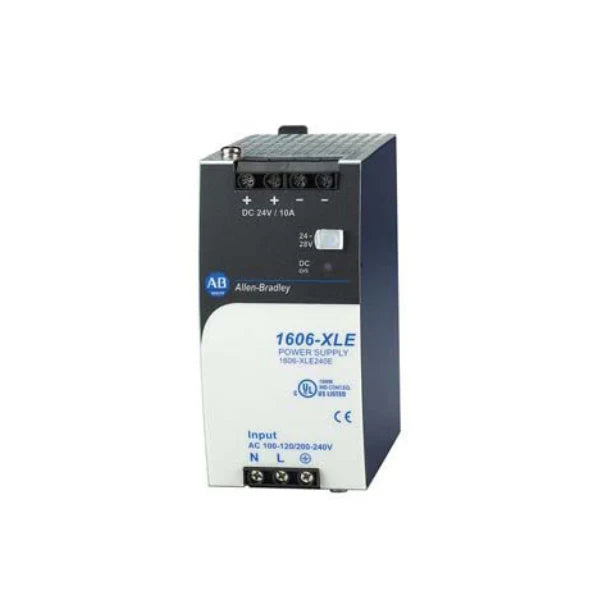

Allen-Bradley 1606-XLE240E | 240W Compact DIN Rail Power Supply for Industrial Control Systems
Overview
The Allen-Bradley 1606-XLE240E is a 240-watt DIN rail-mounted power supply that delivers a 24V DC output at 10 amps. Engineered for high efficiency and long service life, it operates on a wide input range of 85–264V AC and is ideal for use in compact control panels where space and energy efficiency are priorities. It is part of the XLE family, known for delivering robust performance in demanding environments.
Key Features
-
Output Power: 240 W
-
Output Voltage: 24V DC
-
Output Current: 10 A
-
Input Voltage Range: 85–264V AC or 90–375V DC
-
Mounting: DIN rail (snap-on)
-
Efficiency: Up to 91%
-
Compact Size: Slim design for tight enclosures
-
Overload Protection: Electronic shut-down with automatic restart
-
Status Indicator: DC OK LED
Technical Specifications
-
Catalog Number: 1606-XLE240E
-
Series: XLE
-
Input Frequency: 50–60 Hz
-
Operating Temperature: -10°C to +60°C (derating above 45°C)
-
Ripple & Noise: < 100 mVpp
-
Protection: Short circuit, overload, overvoltage, overtemperature
-
Certifications: UL, CE, CSA, RoHS
-
Dimensions (HxWxD): Approx. 125 x 40 x 124 mm
Applications
-
Industrial control panels
-
PLC and automation systems
-
Factory floor equipment
-
Material handling and packaging machines
-
OEM machinery requiring compact power solutions
Why Choose the 1606-XLE240E?
-
High Efficiency in Compact Size
-
Reliable Power Output for Critical Systems
-
Global Input Compatibility (AC & DC)
-
DIN Rail Snap-On Mounting for Fast Installation
-
Backed by Rockwell Automation Quality
Order Now
The Allen-Bradley 1606-XLE240E is in stock and available for immediate worldwide shipping.
