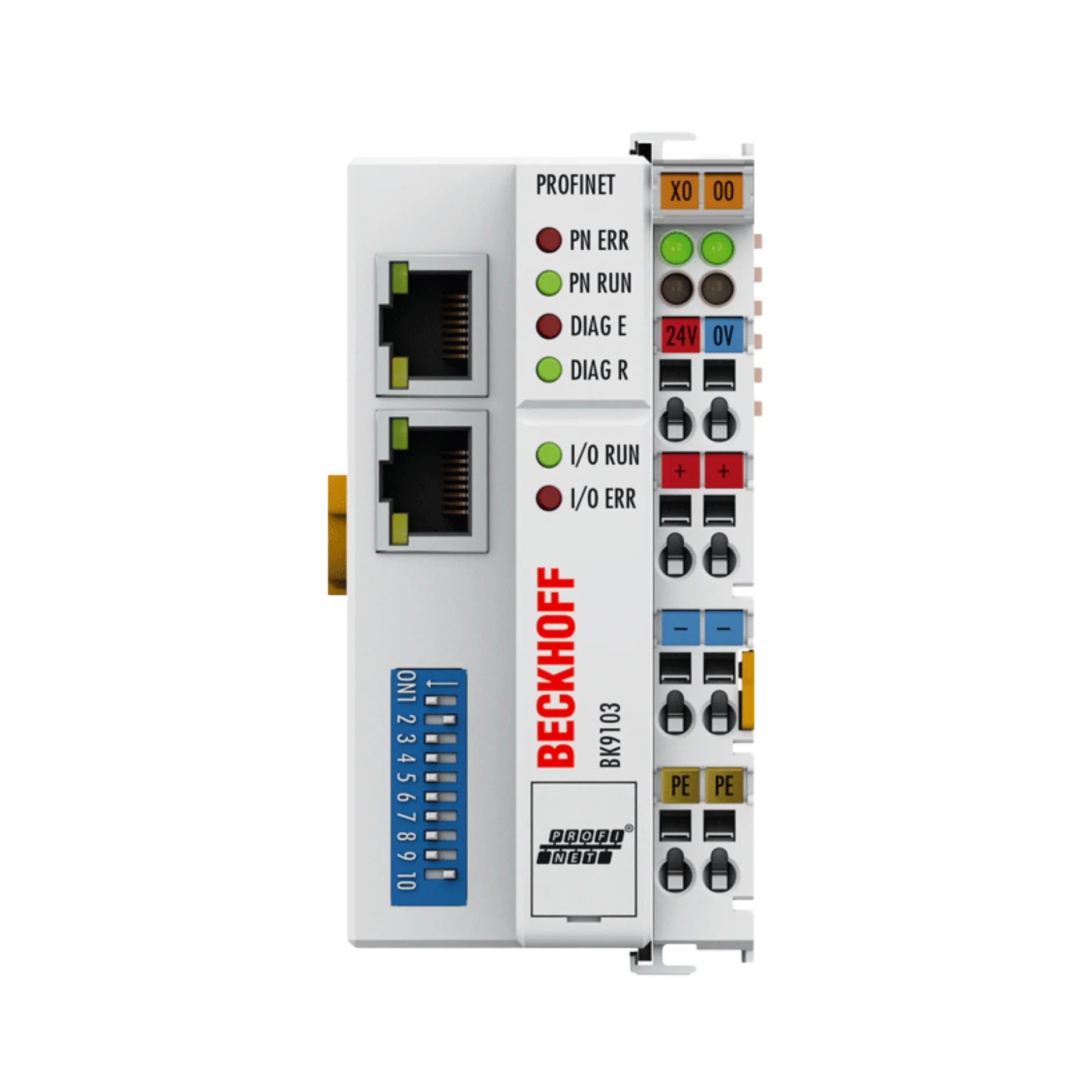

Beckhoff BK9103 PROFINET bus coupler 10/100 Mbit/s

Beckhoff BK9103

SKU: BK9103
Your Price:
$1,280.00
Add to wishlist
Checkout Secure
Order in the next to get it by

10+ disponibles en stock

  • Image of Envío gratuito en todos los pedidos

    Garantía

    Envío gratuito en todos los pedidos
  • Image of 1 año de garantía

    Superaremos cualquier precio

    1 año de garantía
  • Image of Expertos disponibles 7/24/365

    Envío gratis

    Expertos disponibles 7/24/365
  • Image of 30 días de devolución de dinero

    Envío gratis

    30 días de devolución de dinero

Beckhoff BK9103 – Overview

The Beckhoff BK9103 is a PROFINET RT bus coupler designed to connect the modular Beckhoff Bus Terminal system to a PROFINET network. It supports up to 64 connected bus terminals and can be expanded up to 255 when using the K-bus extension. The device offers 10 Mbit/s and 100 Mbit/s Ethernet speeds and features a built-in two-port RJ45 switch for flexible line or star topologies.

This coupler simplifies I/O station wiring and automates terminal recognition and process image mapping, making it ideal for industrial automation systems requiring modular, high-performance infrastructure.

Key Features

  • Supports PROFINET RT protocol Class B

  • Gigabit Ethernet compatibility: 10/100 Mbit/s automatic recognition

  • Two RJ45 ports provide integrated Ethernet switch for line topology

  • Supports up to 64 bus terminals standard; 255 with K-bus extension

  • 512 bytes input / 512 bytes output process image capacity

  • 24 V DC power supply (-15% / +20%)

  • Automated I/O mapping of connected bus terminals

  • Line topology support: up to 20 devices cascaded, max 2 km length

  • Electrical isolation: 500 V (power contacts / supply / fieldbus)

  • IP20 protection rating, 35 mm DIN-rail mountable

Technical Specifications

  • Part Numbers:
    – BK9103
    – BK 9103

  • Protocol: PROFINET RT (Class B)

  • Data Transfer Rate: 10/100 Mbit/s (automatic recognition)

  • Bus Interface: 2 × RJ45 ports, integrated switch

  • Max Bus Terminals: 64 standard, 255 with K-bus extension

  • Max Process Data: 512 bytes input / 512 bytes output

  • Power Supply: 24 V DC (-15% / +20%)

  • Current Consumption: 70 mA + (K-bus current)/4, max 500 mA

  • K-bus Power Supply Capacity: up to 1750 mA

  • Topology Support: Line or star wiring, up to 20 devices cascaded, max 2 km line length

  • Max Distance Between Stations: 100 m

  • Electrical Isolation (Dielectric Strength): 500 V

  • Operating Temperature: -25 °C … +60 °C

  • Storage Temperature: -40 °C … +85 °C

  • Weight: Approx. 170 g

  • Dimensions (W × H × D): 51 mm × 100 mm × 69 mm

  • Mounting: 35 mm DIN-rail

  • Protection Rating: IP20

  • Manufacturer: Beckhoff Automation

Weight: 0.10 – 0.23 kg (0.22 – 0.50 lb)
Packed dimensions: 12 × 7 × 6 cm (4.7 × 2.8 × 2.4 in)

Applications

  • Modular I/O systems requiring PROFINET RT connectivity

  • Machine control panels with distributed bus terminals

  • Industrial plants with flexible station topology (line or star)

  • Automation setups where up to 64 (or expanded 255) terminals are needed

Why Choose Beckhoff BK9103

  • Enables seamless PROFINET integration for Beckhoff bus terminal systems

  • High flexibility in topology and scalability for large I/O counts

  • Built-in line topology support reduces wiring complexity and cost

  • Compact, industrial-grade design with global certifications

Order Now

The Beckhoff BK9103 PROFINET Bus Coupler is available for order and ships worldwide.



Productos nuevos y genuinos – Sellados de fábrica En PLCpartssolution, todos nuestros productos son 100 % nuevos, genuinos y se entregan en su embalaje original sellado de fábrica. Garantizamos componentes auténticos que cumplen con los más altos estándares de rendimiento y fiabilidad de la industria.
Garantía de 1 año incluida Todos los productos nuevos vendidos por PLCpartssolution incluyen una garantía de 1 año. Garantizamos la calidad y fiabilidad de nuestras piezas, garantizando la cobertura contra defectos de fabricación en condiciones normales de funcionamiento.
Aviso legal: PLCpartssolution es un proveedor independiente de productos de automatización industrial reacondicionados y excedentes. No somos distribuidores, revendedores ni representantes autorizados de las marcas que aparecen en este sitio web. Todas las marcas comerciales, nombres de marca y logotipos son propiedad de sus respectivos dueños. PLCpartssolution no está afiliado, respaldado ni aprobado por ABB, Fanuc, B&R, Rockwell Automation, Schneider Electric, Siemens ni por ninguno de los otros fabricantes mencionados.
