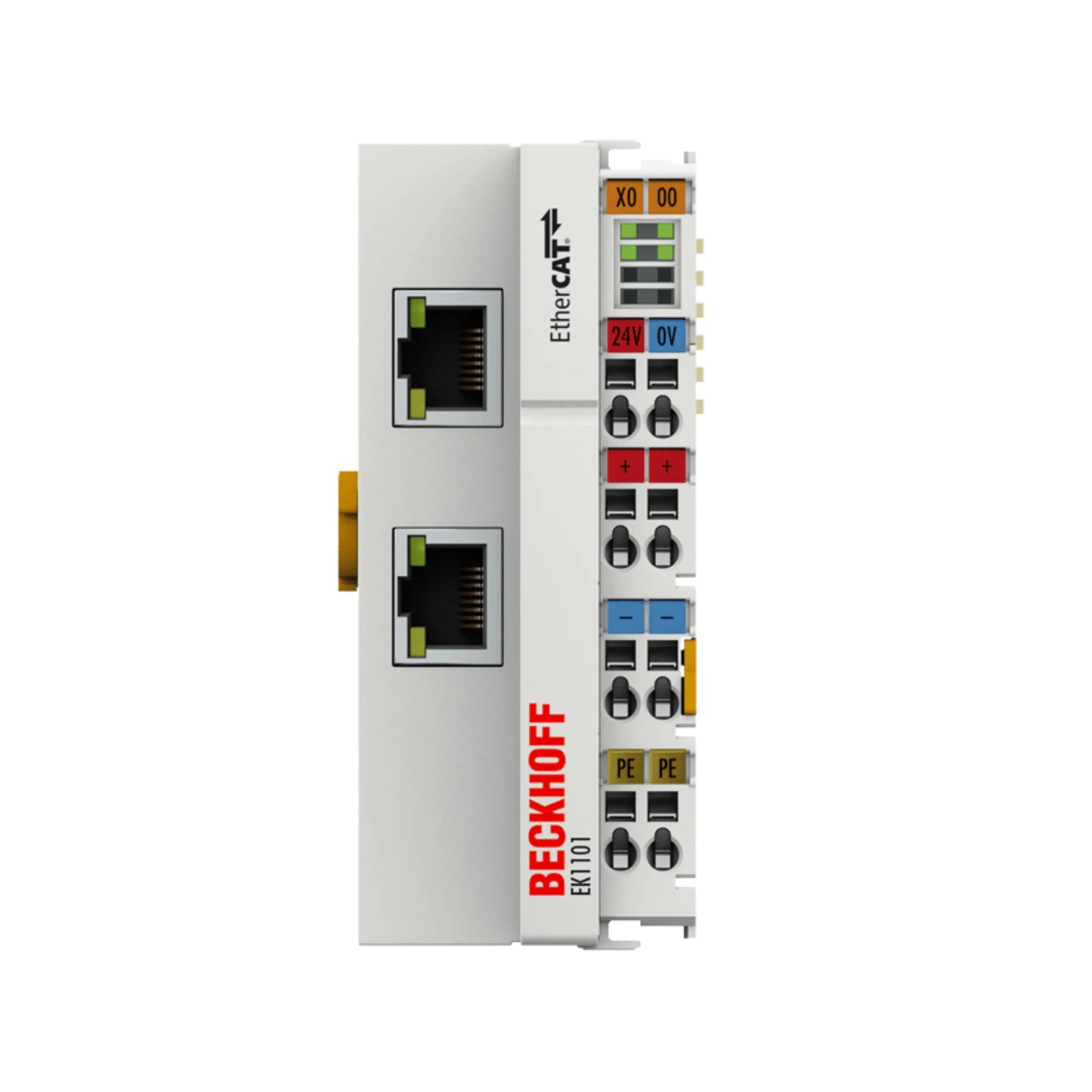

Beckhoff EK1101 EtherCAT coupler with two RJ45 ports 24 V DC

Beckhoff EK1101

SKU: EK1101
Your Price:
$410.00
Add to wishlist
Checkout Secure
Order in the next to get it by

10+ disponibles en stock

  • Image of Envío gratuito en todos los pedidos

    Garantía

    Envío gratuito en todos los pedidos
  • Image of 1 año de garantía

    Superaremos cualquier precio

    1 año de garantía
  • Image of Expertos disponibles 7/24/365

    Envío gratis

    Expertos disponibles 7/24/365
  • Image of 30 días de devolución de dinero

    Envío gratis

    30 días de devolución de dinero

Beckhoff EK1101 – Overview

The Beckhoff EK1101 is a standard EtherCAT coupler used to connect EtherCAT Terminals (EL series) with the EtherCAT network. It establishes the communication between the field I/O and the control system using two RJ45 ports, allowing daisy-chain topology with a maximum data rate of 100 Mbit/s.

The coupler automatically detects connected terminals, maps them into the process image, and supports up to 65,535 EtherCAT devices, ensuring scalability for distributed automation systems.

Key Features

  • Connects EtherCAT Terminals (EL series) to EtherCAT network

  • Two RJ45 ports for network in/out (100 Mbit/s)

  • Automatic terminal recognition and process image configuration

  • Compact 24 V DC-powered module for DIN-rail mounting

  • Power contacts for field supply up to 10 A

  • Electrical isolation between field and system levels

  • IP20 protection for control cabinet installation

  • Diagnostic LEDs for EtherCAT and power status

Technical Specifications

  • Part Numbers:
      – EK1101
      – EK 1101

  • Protocol: EtherCAT

  • Interface: 2 × RJ45 ports (EtherCAT in/out)

  • Supported Terminals: EtherCAT Terminals (ELxxxx series)

  • Data Rate: 100 Mbit/s (full duplex)

  • Max Number of Terminals: 65,535 EtherCAT devices

  • Power Supply: 24 V DC (–15% / +20%)

  • Power Contact Load: Max. 24 V DC / 10 A

  • Current Consumption (E-bus): Max. 500 mA

  • Electrical Isolation: 500 V between system and field levels

  • Operating Temperature: –25 °C … +60 °C

  • Storage Temperature: –40 °C … +85 °C

  • Mounting: 35 mm DIN-rail

  • Protection Rating: IP20

  • Manufacturer: Beckhoff Automation

  • Weight: 0.10 – 0.23 kg (0.22 – 0.50 lb)

  • Packed dimensions: 12 × 7 × 6 cm (4.7 × 2.8 × 2.4 in)

Applications

  • Integration of distributed EtherCAT Terminals in automation networks

  • Machine and process control with modular I/O expansion

  • Industrial control panels using EtherCAT for high-speed communication

  • Scalable automation architectures requiring flexible I/O topologies

Why Choose Beckhoff EK1101

  • High-speed EtherCAT performance with dual-port design

  • Compact and robust housing for reliable operation

  • Simplifies integration of EtherCAT Terminals

  • Suitable for modular and distributed automation environments

Order Now

The Beckhoff EK1101 EtherCAT Coupler is available for order and ships worldwide.
