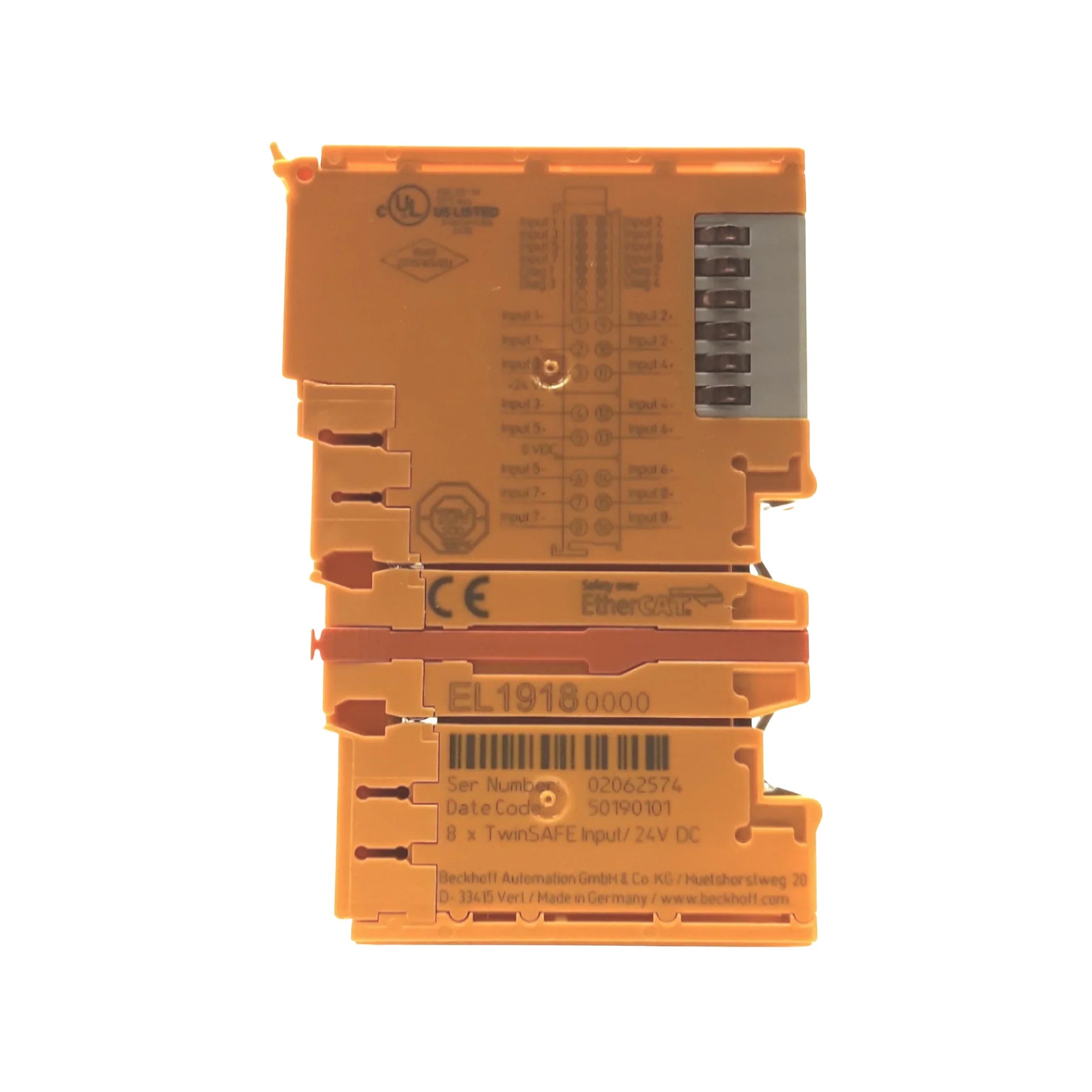

Beckhoff EL1918 TwinSAFE Logic 8-channel digital input terminal 24 V DC

Beckhoff EL1918

SKU: EL1918
Your Price:
$580.00
Add to wishlist
Checkout Secure
Order in the next to get it by

10+ disponibles en stock

  • Image of Envío gratuito en todos los pedidos

    Garantía

    Envío gratuito en todos los pedidos
  • Image of 1 año de garantía

    Superaremos cualquier precio

    1 año de garantía
  • Image of Expertos disponibles 7/24/365

    Envío gratis

    Expertos disponibles 7/24/365
  • Image of 30 días de devolución de dinero

    Envío gratis

    30 días de devolución de dinero

Beckhoff EL1918 – Overview

The Beckhoff EL1918 is a TwinSAFE Logic capable EtherCAT input terminal with eight fail-safe digital inputs at 24 V DC. It supports the Safety-over-EtherCAT (FSoE) protocol and can act either as a dedicated input terminal or as a full safety logic controller with up to 128 safe connections.
This modular safety component enables flexible and scalable safety architectures in industrial automation setups.

Key Features

  • Eight safe digital inputs for 24 V DC sensors

  • Integrated TwinSAFE Logic functionality, suitable for safety control

  • Supports up to 128 safe connections

  • Parameterised test-pulse configuration for each input channel

  • Certified to SIL 3 (IEC 61508) and PL e / Category 4 (EN ISO 13849-1)

  • Compact DIN-rail mountable, 12 mm width, IP20 rating

Technical Specifications

  • Part Numbers:
      – EL1918
      – EL 1918

  • Number of Inputs: 8 safe digital input channels

  • Nominal Voltage: 24 V DC (-15% / +20%)

  • Protocol: TwinSAFE / Safety-over-EtherCAT (FSoE)

  • Max Safe Connections: Up to 128

  • Current Consumption (E-bus): Typical 165 mA

  • Connection Technology: 1-/2-wire

  • Protection Rating: IP20

  • Housing Dimensions: Width approx. 12 mm × Height 100 mm × Depth 68 mm

  • Operating Temperature: –25 °C … +60 °C

  • Storage Temperature: –40 °C … +85 °C

  • Manufacturing Format: HD (High Density) housing with signal LEDs

  • Manufacturer: Beckhoff Automation

Weight: 0.10 – 0.23 kg (0.22 – 0.50 lb)
Packed dimensions: 12 × 7 × 6 cm (4.7 × 2.8 × 2.4 in)

Applications

  • Safety-input acquisition for industrial machines and automation systems

  • Distributed safety zones with integrated logic processing

  • Modular safety control installations using EtherCAT I/O

  • Systems requiring certified SIL 3 / PL e safety compliance

Why Choose Beckhoff EL1918

  • Combines safe digital input acquisition and integrated logic capacity

  • Simplifies wiring and cabinet layout with very narrow 12 mm footprint

  • High flexibility in safety design: switchable between input-only and full logic

  • Robust industrial design and compliance with top safety standards

Order Now

The Beckhoff EL1918 TwinSAFE Logic 8-Channel Digital Input Terminal is available for order and ships worldwide.



Productos nuevos y genuinos – Sellados de fábrica En PLCpartssolution, todos nuestros productos son 100 % nuevos, genuinos y se entregan en su embalaje original sellado de fábrica. Garantizamos componentes auténticos que cumplen con los más altos estándares de rendimiento y fiabilidad de la industria.
Garantía de 1 año incluida Todos los productos nuevos vendidos por PLCpartssolution incluyen una garantía de 1 año. Garantizamos la calidad y fiabilidad de nuestras piezas, garantizando la cobertura contra defectos de fabricación en condiciones normales de funcionamiento.
Aviso legal: PLCpartssolution es un proveedor independiente de productos de automatización industrial reacondicionados y excedentes. No somos distribuidores, revendedores ni representantes autorizados de las marcas que aparecen en este sitio web. Todas las marcas comerciales, nombres de marca y logotipos son propiedad de sus respectivos dueños. PLCpartssolution no está afiliado, respaldado ni aprobado por ABB, Fanuc, B&R, Rockwell Automation, Schneider Electric, Siemens ni por ninguno de los otros fabricantes mencionados.
