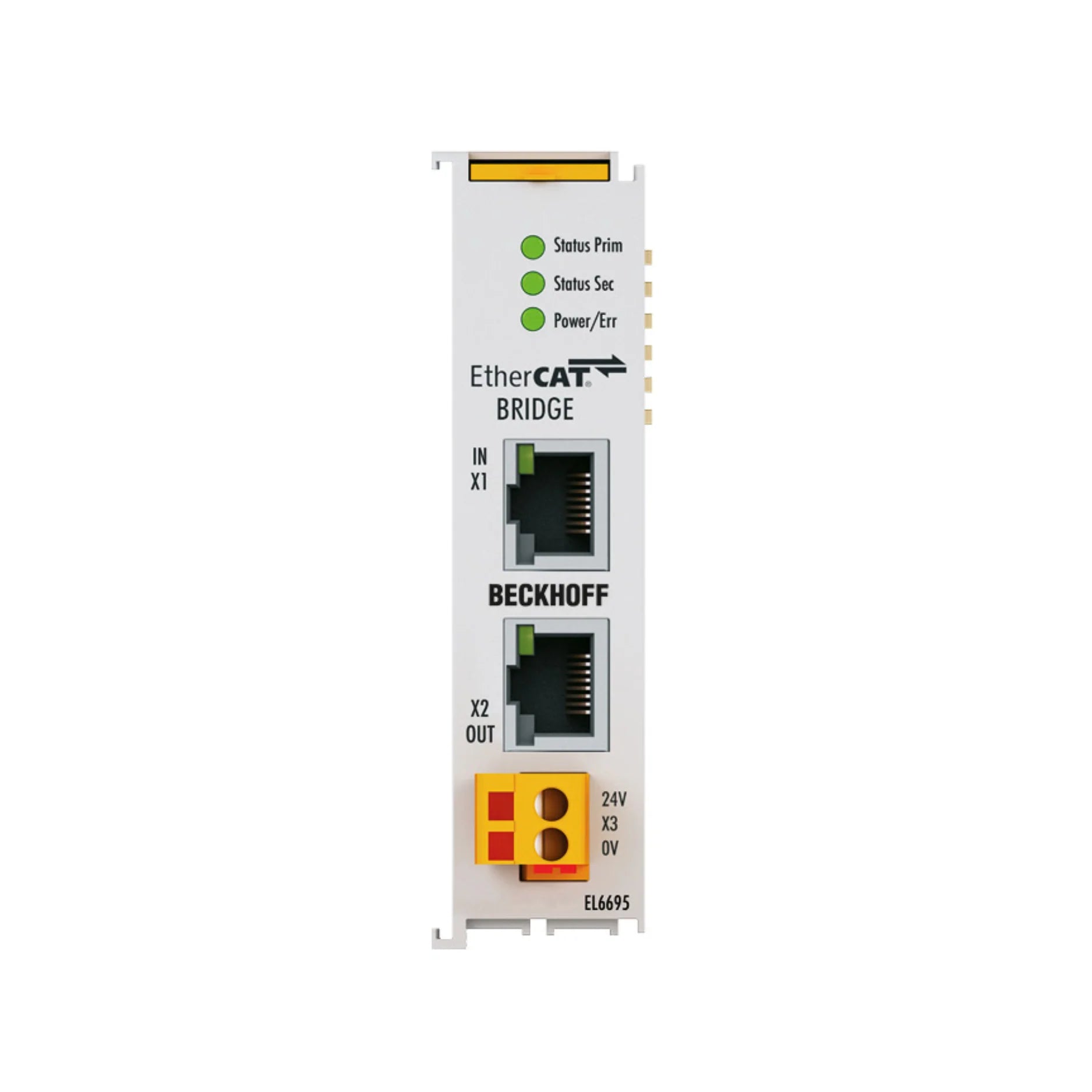

Beckhoff EL6695 EtherCAT bridge terminal dual RJ45 100 Mbps

Beckhoff EL6695

SKU: EL6695
Your Price:
$540.00
Add to wishlist
Checkout Secure
Order in the next to get it by

10+ disponibles en stock

  • Image of Envío gratuito en todos los pedidos

    Garantía

    Envío gratuito en todos los pedidos
  • Image of 1 año de garantía

    Superaremos cualquier precio

    1 año de garantía
  • Image of Expertos disponibles 7/24/365

    Envío gratis

    Expertos disponibles 7/24/365
  • Image of 30 días de devolución de dinero

    Envío gratis

    30 días de devolución de dinero

Beckhoff EL6695 – Overview

The Beckhoff EL6695 is an EtherCAT bridge terminal designed to enable real-time data exchange between separate EtherCAT strands under different masters. It supports dual 100 Mbit/s RJ45 ports on the secondary side and provides functions such as distributed clock synchronization, asynchronous protocols (AoE, FoE, EoE), and flexible CoE device emulation. The module is powered from the primary side via the E-bus, with a secondary 24 V supply for the Ethernet ports.

Key Features

  • Bridge between two EtherCAT network segments with different masters

  • Two RJ45 ports at 100 Mbit/s for EtherCAT in/out

  • Supports distributed clocks in both directions

  • Flexible CoE configuration and device emulation mode

  • High data throughput with process image size up to ~3 kB each direction

  • Supports asynchronous communication (AoE, EoE, FoE, NPI)

  • Electrical isolation of 500 V between E-bus and secondary side

  • DIN-rail mountable housing for industrial panels

Technical Specifications

  • Part Numbers:
      – EL6695
      – EL 6695

  • Protocol: EtherCAT bridge (data exchange & synchronization)

  • Interfaces: Primary side: E-bus (terminal strand)
      Secondary side: 2 × 100 Mbit/s RJ45 in/out

  • Max Cable Length (secondary ports): 100 m per 100BASE-TX segment

  • Process Image Size: Up to 3 kB input / 3 kB output (dependent on EtherCAT master)

  • Power Supply: Primary via E-bus; Secondary field supply 24 V DC

  • Current Consumption: Primary ~400 mA via E-bus; Secondary ~70 mA at 24 V

  • Electrical Isolation: 500 V between E-bus and secondary side

  • Operating Temperature: 0 °C … +55 °C

  • Storage Temperature: -25 °C … +85 °C

  • Protection Rating: IP20

  • Mounting: DIN-rail (35 mm)

  • Housing Dimensions: Width 24 mm × Height 100 mm × Depth 52 mm

  • Weight: Approx. 75 g

  • Manufacturer: Beckhoff Automation

  • Weight: 0.10 – 0.23 kg (0.22 – 0.50 lb)

  • Packed dimensions: 12 × 7 × 6 cm (4.7 × 2.8 × 2.4 in)

Applications

  • Linking two EtherCAT I/O stations under separate masters

  • Industrial systems requiring high-speed data exchange between network segments

  • Synchronization of distributed clocks across EtherCAT nests

  • Integration of mixed master EtherCAT setups in modular automation plants

Why Choose Beckhoff EL6695

  • Provides a robust solution for bridging EtherCAT networks without custom cabling

  • Enables high-speed, synchronized data transfer between segmented I/O systems

  • Industrial-grade design with electric isolation and compact footprint

  • Supports advanced EtherCAT functions including CoE device emulation and asynchronous protocols

Order Now

The Beckhoff EL6695 EtherCAT Bridge Terminal is available for order and ships worldwide.


Productos nuevos y genuinos – Sellados de fábrica En PLCpartssolution, todos nuestros productos son 100 % nuevos, genuinos y se entregan en su embalaje original sellado de fábrica. Garantizamos componentes auténticos que cumplen con los más altos estándares de rendimiento y fiabilidad de la industria.
Garantía de 1 año incluida Todos los productos nuevos vendidos por PLCpartssolution incluyen una garantía de 1 año. Garantizamos la calidad y fiabilidad de nuestras piezas, garantizando la cobertura contra defectos de fabricación en condiciones normales de funcionamiento.
Aviso legal: PLCpartssolution es un proveedor independiente de productos de automatización industrial reacondicionados y excedentes. No somos distribuidores, revendedores ni representantes autorizados de las marcas que aparecen en este sitio web. Todas las marcas comerciales, nombres de marca y logotipos son propiedad de sus respectivos dueños. PLCpartssolution no está afiliado, respaldado ni aprobado por ABB, Fanuc, B&R, Rockwell Automation, Schneider Electric, Siemens ni por ninguno de los otros fabricantes mencionados.
