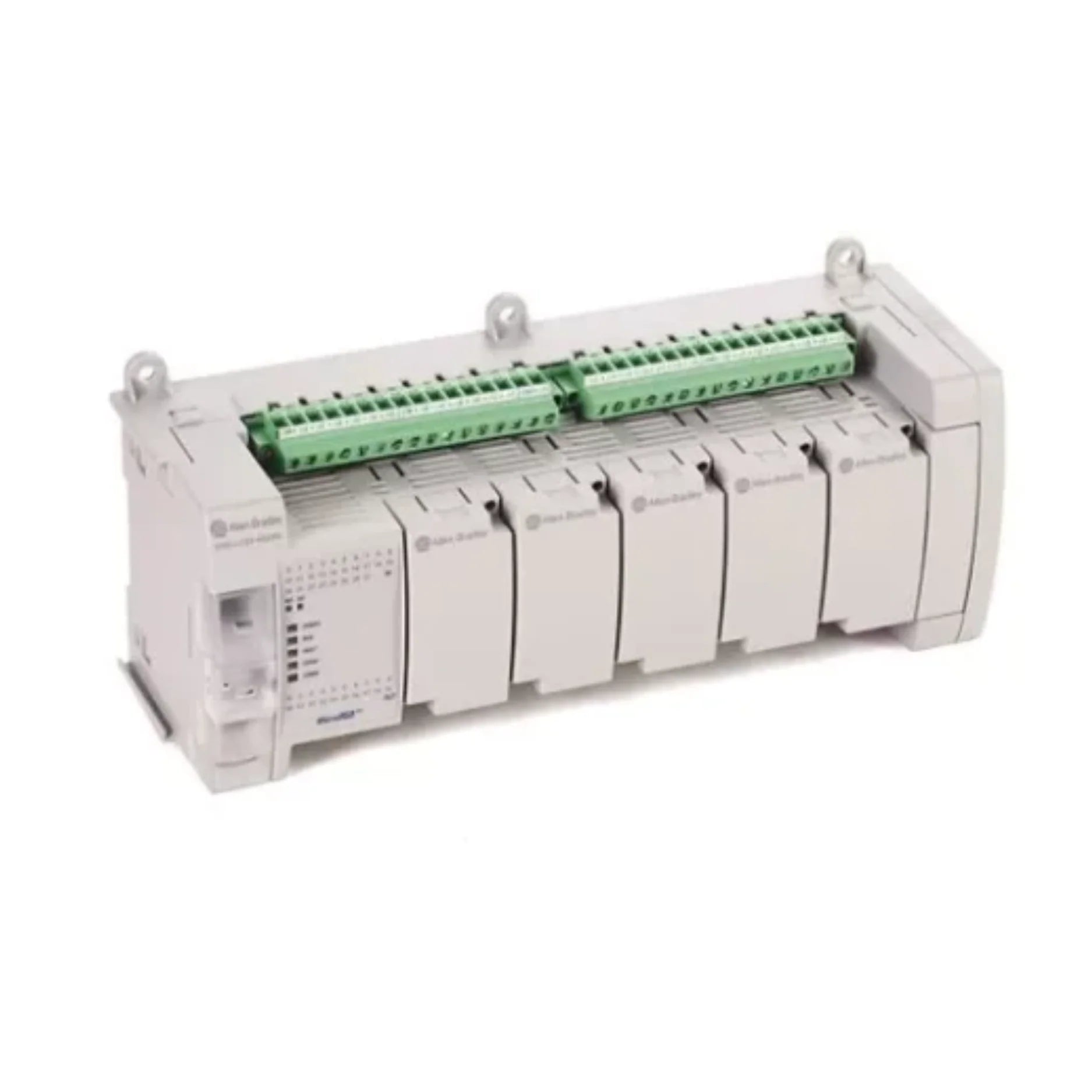

Allen-Bradley 2080-LC50-48QWB | Micro850 48-Point Programmable Controller
Overview
The Allen-Bradley 2080-LC50-48QWB is a Micro850 programmable logic controller (PLC) designed for mid-size machine control applications. It features 28 digital inputs, 20 relay outputs, and supports 24V DC power. With embedded EtherNet/IP, USB, and RS232/485 communication ports, this controller offers flexible connectivity options. It supports up to 5 plug-in modules and 4 expansion I/O modules, allowing for scalable system configurations.
Key Features
-
Digital Inputs: 28 (12/24V DC/AC, sink/source)
-
Relay Outputs: 20 (NO contacts, 125V DC / 250V AC)
-
High-Speed Counters: 6 channels (shared with inputs)
-
Embedded Communication Ports: -
EtherNet/IP: 10/100 Mbps
-
USB 2.0: Programming port
-
RS232/RS485: Non-isolated combo serial port

-
-
Plug-In Module Support: Up to 5 modules
-
Expansion I/O Support: Up to 4 modules
-
Memory: -
Program: 10 KB
-
Data: 20 KB

-
-
Real-Time Clock: Integrated
-
Mounting: DIN rail or panel mount
-
Operating Temperature: -20 to 65 °C (-4 to 149 °F)
-
Certifications: CE, UL, cULus, KC, RCM, RoHS
Technical Specifications
-
Catalog Number: 2080-LC50-48QWB
-
Power Supply: 24V DC
-
Dimensions (H x W x D): 90 x 230 x 80 mm
-
Weight: Approximately 0.905 kg
-
Programming Software: Connected Components Workbench (CCW)
-
Programming Languages: Ladder Diagram (LD), Function Block Diagram (FBD), Structured Text (ST)
Applications
-
Machine Control Systems
-
Packaging Equipment
-
Material Handling Systems
-
Process Skids
-
Industrial Automation
Why Choose the 2080-LC50-48QWB?
-
Scalable Architecture: Supports plug-in and expansion modules for system customization
-
Flexible Connectivity: Multiple communication ports for seamless integration
-
Compact Design: Saves space in control panels
-
Reliable Performance: Designed for industrial environments
-
Easy Programming: Compatible with CCW software for efficient development
Order Now
                                    Description




                                Allen-Bradley 2080-LC50-48QWB | Micro850 48-Point Programmable Controller
Overview
The Allen-Bradley 2080-LC50-48QWB is a Micro850 programmable logic controller (PLC) designed for mid-size machine control applications. It features 28 digital inputs, 20 relay outputs, and supports 24V DC power. With embedded EtherNet/IP, USB, and RS232/485 communication ports, this controller offers flexible connectivity options. It supports up to 5 plug-in modules and 4 expansion I/O modules, allowing for scalable system configurations.
Key Features
-
Digital Inputs: 28 (12/24V DC/AC, sink/source)
-
Relay Outputs: 20 (NO contacts, 125V DC / 250V AC)
-
High-Speed Counters: 6 channels (shared with inputs)
-
Embedded Communication Ports: -
EtherNet/IP: 10/100 Mbps
-
USB 2.0: Programming port
-
RS232/RS485: Non-isolated combo serial port

-
-
Plug-In Module Support: Up to 5 modules
-
Expansion I/O Support: Up to 4 modules
-
Memory: -
Program: 10 KB
-
Data: 20 KB

-
-
Real-Time Clock: Integrated
-
Mounting: DIN rail or panel mount
-
Operating Temperature: -20 to 65 °C (-4 to 149 °F)
-
Certifications: CE, UL, cULus, KC, RCM, RoHS
Technical Specifications
-
Catalog Number: 2080-LC50-48QWB
-
Power Supply: 24V DC
-
Dimensions (H x W x D): 90 x 230 x 80 mm
-
Weight: Approximately 0.905 kg
-
Programming Software: Connected Components Workbench (CCW)
-
Programming Languages: Ladder Diagram (LD), Function Block Diagram (FBD), Structured Text (ST)
Applications
-
Machine Control Systems
-
Packaging Equipment
-
Material Handling Systems
-
Process Skids
-
Industrial Automation
Why Choose the 2080-LC50-48QWB?
-
Scalable Architecture: Supports plug-in and expansion modules for system customization
-
Flexible Connectivity: Multiple communication ports for seamless integration
-
Compact Design: Saves space in control panels
-
Reliable Performance: Designed for industrial environments
-
Easy Programming: Compatible with CCW software for efficient development
