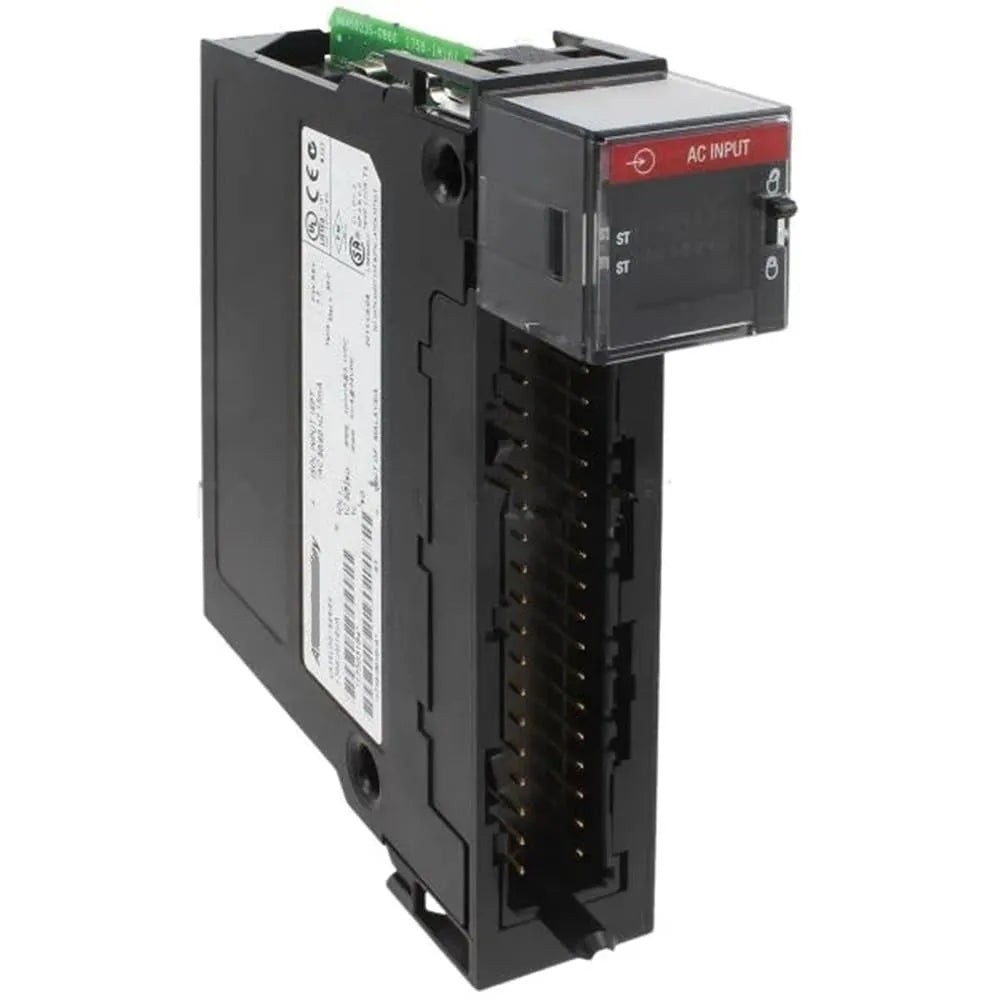

Allen-Bradley 1756-IM16I | ControlLogix 16-Point Isolated AC Input Module
Overview
The Allen-Bradley 1756-IM16I is a high-performance AC input module designed for ControlLogix PLC systems. Featuring 16 individually isolated input points, it supports 159-265V AC signals, providing reliable and noise-resistant digital input processing for industrial automation applications.
With channel-to-channel isolation, this module minimizes ground loops and signal interference, ensuring accurate data acquisition in demanding environments such as factory automation, process control, and machine monitoring.
Key Features
- 16 Isolated AC Input Channels – Prevents crosstalk and ensures signal integrity
- Wide Operating Voltage Range: 159-265V AC
- Individually Isolated Inputs – Enhances noise immunity and prevents ground loops
- Fast Input Response Time: 8ms (On/Off delay max)
- High Immunity to Electrical Noise – Ideal for industrial environments
- Integrated Diagnostics and LED Indicators – Provides real-time input status monitoring
- 36-Pin Terminal Block Connection – Secure and stable wiring
- Compatible with ControlLogix Systems – Seamless integration with Allen-Bradley PLCs
Technical Specifications
- Model: 1756-IM16I
- Series: ControlLogix
- Number of Inputs: 16 (Individually Isolated)
- Input Voltage Range: 159-265V AC
- Input Frequency: 47-63Hz
- Input Impedance: 150 kΩ
- Maximum Off-State Voltage: 60V AC
- Signal Delay: 8ms (On/Off)
- Isolation Voltage: 2500V AC (Between channels)
- Backplane Current Draw: 100mA at 5.1V DC, 2.5mA at 24V DC
- Operating Temperature: 0°C to 60°C (32°F to 140°F)
- Mounting: Chassis Mount (ControlLogix System)
- Connector Type: 36-Pin Terminal Block
Applications
- Industrial Process Control – Provides high-reliability AC input monitoring
- Factory Automation – Ensures accurate data acquisition from field devices
- High-Voltage Digital Input Applications – Supports robust control in power-intensive environments
- Machine and Equipment Monitoring – Offers noise-resistant signal processing
Why Choose the Allen-Bradley 1756-IM16I?
- Isolated AC Inputs – Prevents interference and improves signal accuracy
- Seamless Integration with ControlLogix PLCs – Optimized for industrial automation
- High-Voltage Compatibility – Designed for demanding power control applications
- Reliable and Durable Design – Ensures long-term performance in harsh environments
Order Now
Fast shipping and worldwide delivery available.
New & Genuine Products – Factory Sealed
At PLCpartssolution, all our products are 100% new, genuine, and come in original factory-sealed packaging. We guarantee authentic components that meet the highest industry standards for performance and reliability.
1-Year Warranty Included
All new products sold by PLCpartssolution come with a 1-year warranty. We stand behind the quality and reliability of our parts, ensuring coverage against manufacturing defects under normal operating conditions.
