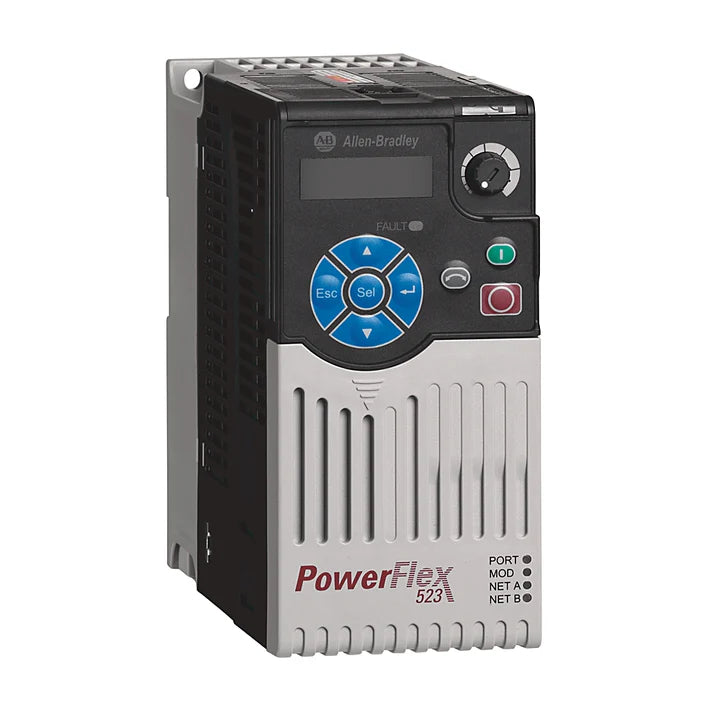

Allen-Bradley 25A-D2P3N104 | Compact and Affordable AC Drive for General Purpose Applications
Overview
The Allen-Bradley 25A-D2P3N104 is a PowerFlex 523 AC drive designed for basic motor control applications in a compact form factor. It offers 1.0 HP (0.75 kW) for both normal and heavy-duty usage, operates at 480V AC, and supports V/Hz and sensorless vector control. Ideal for OEMs and cost-sensitive applications.
Key Features
-
Input Voltage: 480V AC, 3-phase
-
Output Current: 2.3 A
-
Motor Rating:
-
1.0 HP (0.75 kW) Normal Duty
-
1.0 HP (0.75 kW) Heavy Duty
-
-
Frame Size: A
-
Enclosure Type: IP20 / NEMA Open Type
-
EMC Filter: Not included
-
Control Modes:
-
Volts-per-Hertz (V/Hz)
-
Sensorless Vector Control
-
-
Integrated Communication: RS-485 (Modbus RTU)
-
User Interface: LED keypad (integrated)
-
Programming Software: Connected Components Workbench (CCW)
-
Mounting: Panel or DIN rail
-
Certifications: UL, cULus, CE, RoHS
-
Ambient Temperature Range: -10°C to 50°C (with derating above)
Technical Specifications
-
Catalog Number: 25A-D2P3N104
-
Input Frequency: 47–63 Hz
-
Output Frequency: 0–500 Hz
-
Digital Inputs: 5
-
Analog Inputs: 2 (1 voltage, 1 current)
-
Relay Outputs: 1
-
Analog Outputs: 1
-
Dimensions (HxWxD): Refer to Frame A datasheet
-
Weight: Refer to datasheet
Applications
-
Small conveyors and fans
-
Pump control systems
-
Light-duty mixers
-
Compact OEM machinery
-
Cost-sensitive automation systems
Why Choose the 25A-D2P3N104?
-
Simple and cost-effective motor control
-
Compact size for tight spaces
-
Easy installation and commissioning
-
Ideal for standalone or basic control systems
-
Flexible mounting and wiring options
Order Now
Available and in stock. Ships globally.
