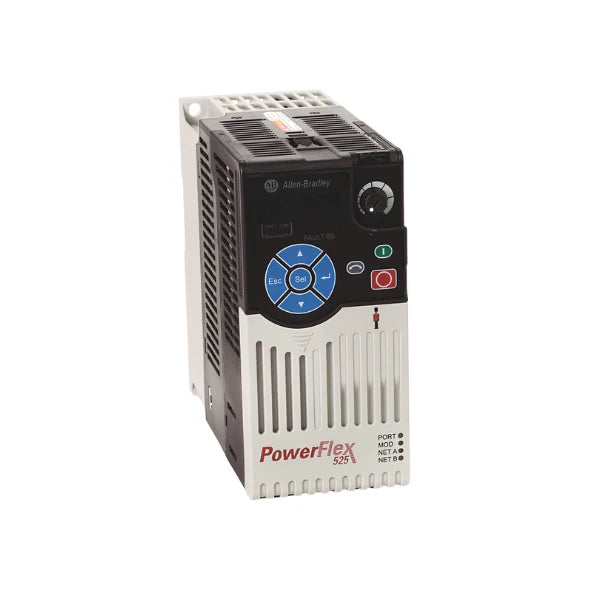

Allen-Bradley 25B-B5P0N104 | Compact AC Drive with Embedded Safety and Network Control
Overview
The Allen-Bradley 25B-B5P0N104 is a PowerFlex 525 AC drive designed for reliable, space-efficient motor control. Offering built-in EtherNet/IP and Safe Torque Off (STO) functionality, it supports 1 HP motors in both normal and heavy-duty applications. Its flexible mounting options and communication capabilities make it ideal for machine-level automation.
Key Features
-
Input Voltage: 240V AC, 3-phase
-
Output Current: 5 Amps
-
Motor Power Rating:
-
0.75 kW / 1.0 HP (Normal & Heavy Duty)
-
-
Frame Size: A
-
Enclosure Type: IP20 / NEMA Open Type
-
EMC Filter: Not included (no CE filter)
-
Communication: Embedded EtherNet/IP and DSI
-
Safety Function: Safe Torque Off (STO)
-
Control Methods:
-
Volts-per-Hertz (V/Hz)
-
Sensorless Vector Control
-
Closed Loop (optional encoder card)
-
-
Keypad: Integral with LCD display
-
Software: Studio 5000, Connected Components Workbench (CCW)
-
Mounting: Panel or DIN rail
-
Plug-and-play USB programming port
Technical Specifications
-
Catalog Number: 25B-B5P0N104
-
Frequency Range: 0–500 Hz
-
Input Frequency: 47–63 Hz
-
Digital Inputs: 7
-
Analog Inputs: 2
-
Relay Outputs: 1
-
Analog Outputs: 1
-
Ambient Operating Temp: -20°C to 50°C (with derating above 50°C)
-
Certifications: UL, cUL, CE, RoHS
Applications
-
Conveyors and sorters
-
Machine tools
-
Small pumps and fans
-
Packaging equipment
-
Compact OEM machinery
Why Choose the 25B-B5P0N104?
-
Embedded EtherNet/IP for seamless control integration
-
STO for built-in functional safety
-
Compact design fits in tight control cabinets
-
Versatile motor control with multiple mounting options
-
Designed for fast setup and reliable performance
Order Now
Ready to ship worldwide.
