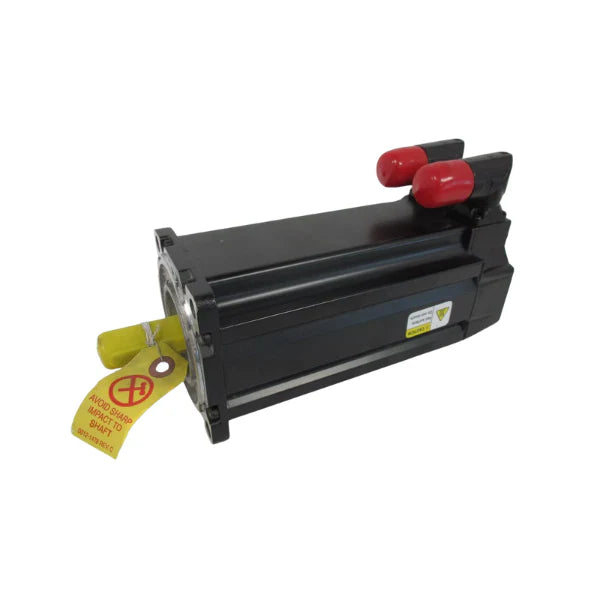

Allen-Bradley MPL-B430P-MJ74AA
Overview
The Allen-Bradley MPL-B430P-MJ74AA is a high-performance MPL-series servo motor optimized for use with Kinetix servo drives. This model provides 3.0 Nm continuous torque, a maximum speed of 5000 RPM, and is equipped with a 24-bit high-resolution encoder for precise positioning. The motor features a keyed shaft, IP65 environmental protection, and a 400V class windings, making it ideal for demanding motion control applications.
Key Features
-
Continuous Stall Torque: 3.0 Nm
-
Peak Torque: Up to 9.1 Nm
-
Voltage Class: 400V
-
Maximum Speed: 5000 RPM
-
Feedback: 24-bit MPL multi-turn encoder
-
Shaft: Keyed shaft with DIN 6885 keyway
-
Enclosure: IP65 with shaft seal
-
Thermistor for thermal protection
-
Frame Size: 100 mm (frame 4)
-
Winding Code: P
-
Connection: Rotatable circular connectors
Technical Specifications
-
Catalog Number: MPL-B430P-MJ74AA
-
Motor Type: Brushless AC servo motor
-
Torque (Continuous): 3.0 Nm
-
Torque (Peak): ~9.1 Nm
-
Voltage: 400V class
-
Speed Rating: 5000 RPM max
-
Feedback Device: 24-bit encoder, multi-turn absolute
-
Shaft: Keyed
-
Flange Size: 100 mm
-
Protection Rating: IP65 (with mating connectors)
-
Cooling: Natural convection
-
Mounting: Flange mount
-
Weight: Approx. 5.2 kg (11.5 lbs)
-
Standards: UL, CE, CSA
Applications
-
High-speed pick-and-place machines
-
Packaging and labeling systems
-
Material handling and robotics
-
Precision assembly systems
-
Multi-axis coordinated motion applications
Why Choose the MPL-B430P-MJ74AA
-
High torque density in a compact frame
-
Accurate and repeatable motion with 24-bit encoder
-
Compatible with Kinetix 6000/6200/6500 drives
-
IP65-rated durability for industrial environments
Order Now
The Allen-Bradley MPL-B430P-MJ74AA servo motor is in stock and ships worldwide.
