Allen-Bradley 2198-E4020-ERS
Overview

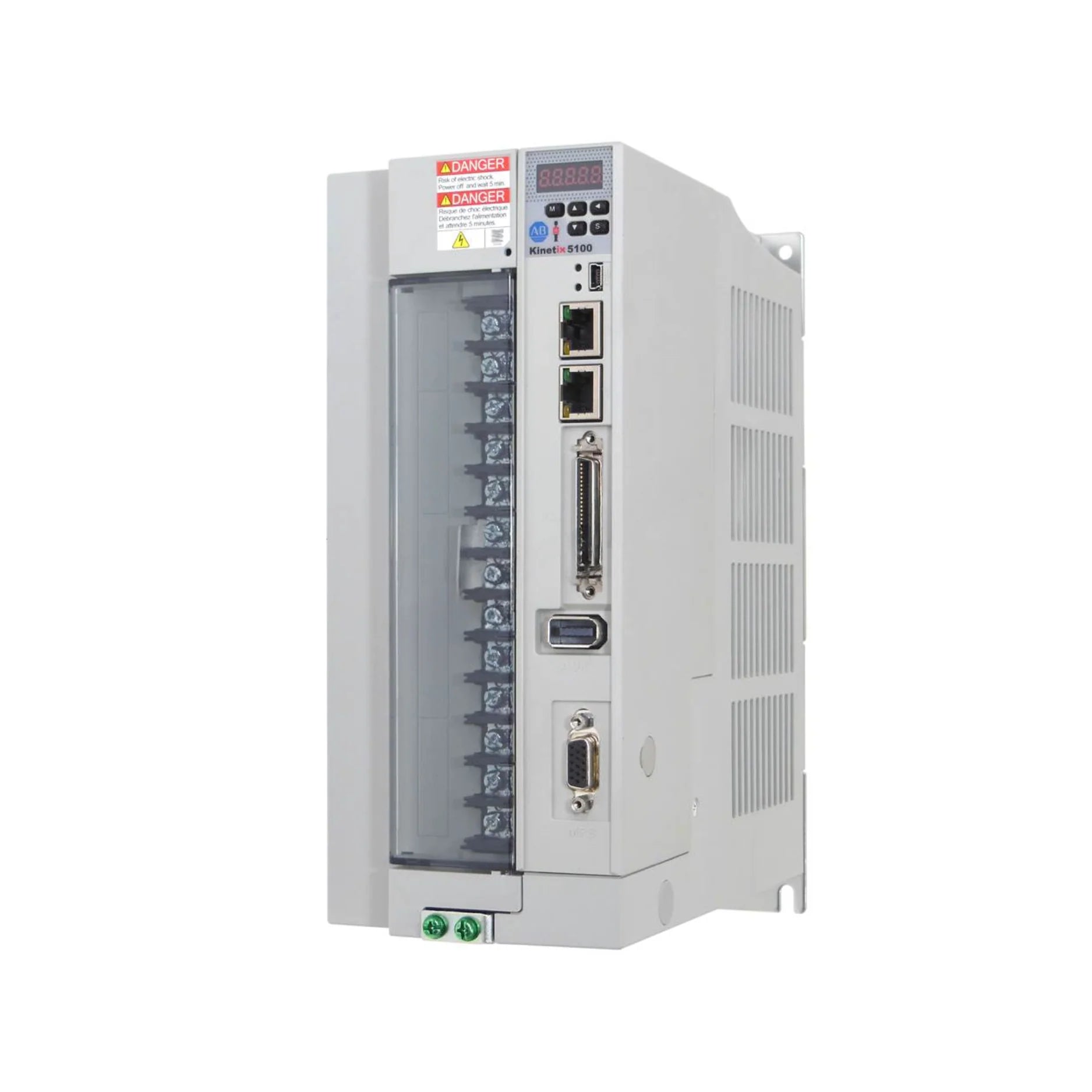

The Allen-Bradley 2198-E4020-ERS is a Kinetix 5100 single-axis servo drive built for high-performance motion applications. It operates on 380–480V AC three-phase input, delivering 2.0kW of output power and 7.42A continuous current. Designed with Safe Torque Off (STO), an internal shunt IGBT and resistor, and spring tension connectors, this drive offers EtherNet/IP connectivity and a compact, panel-mount form factor.
Key Features
-
Drive Series: Kinetix 5100
-
Axis Type: Single-axis indexing
-
Rated Power: 2.0 kW
-
Continuous Output Current: 7.42A
-
Input Voltage: 380–480V AC, 3-phase
-
Safety Function: Safe Torque Off (STO)
-
Shunt Components: Internal IGBT and resistor
-
Wiring Type: Spring tension connectors
-
Networking: EtherNet/IP
-
Mounting Type: Panel mount
-
Enclosure Rating: IP20 (open type)
Technical Specifications
-
Catalog Number: 2198-E4020-ERS
-
Input Frequency: 50/60 Hz
-
Control Modes: Position, velocity, indexing
-
Safety Compliance: STO per IEC 61800-5-2
-
Cooling Method: Natural or fan-assisted
-
Operating Temperature: 0°C to +50°C
-
Certifications: UL, CE, RoHS, cULus
-
Connectivity: EtherNet/IP for motion control and diagnostics
Applications
-
Material handling and transport
-
Packaging and cutting machinery
-
Precision indexing systems
-
Modular OEM machines
-
Multi-axis equipment needing compact drives
Why Choose the 2198-E4020-ERS (Kinetix 5100)
-
Higher Power Range: Supports more robust motor demands
-
Integrated Braking Management: Built-in shunt handles excess energy
-
Safety Built-In: STO eliminates need for external circuitry
-
Flexible Wiring: Quick spring connectors save installation time
-
Network-Ready: EtherNet/IP ensures seamless control integration
Order Now
The Allen-Bradley 2198-E4020-ERS servo drive is available and ships worldwide.
