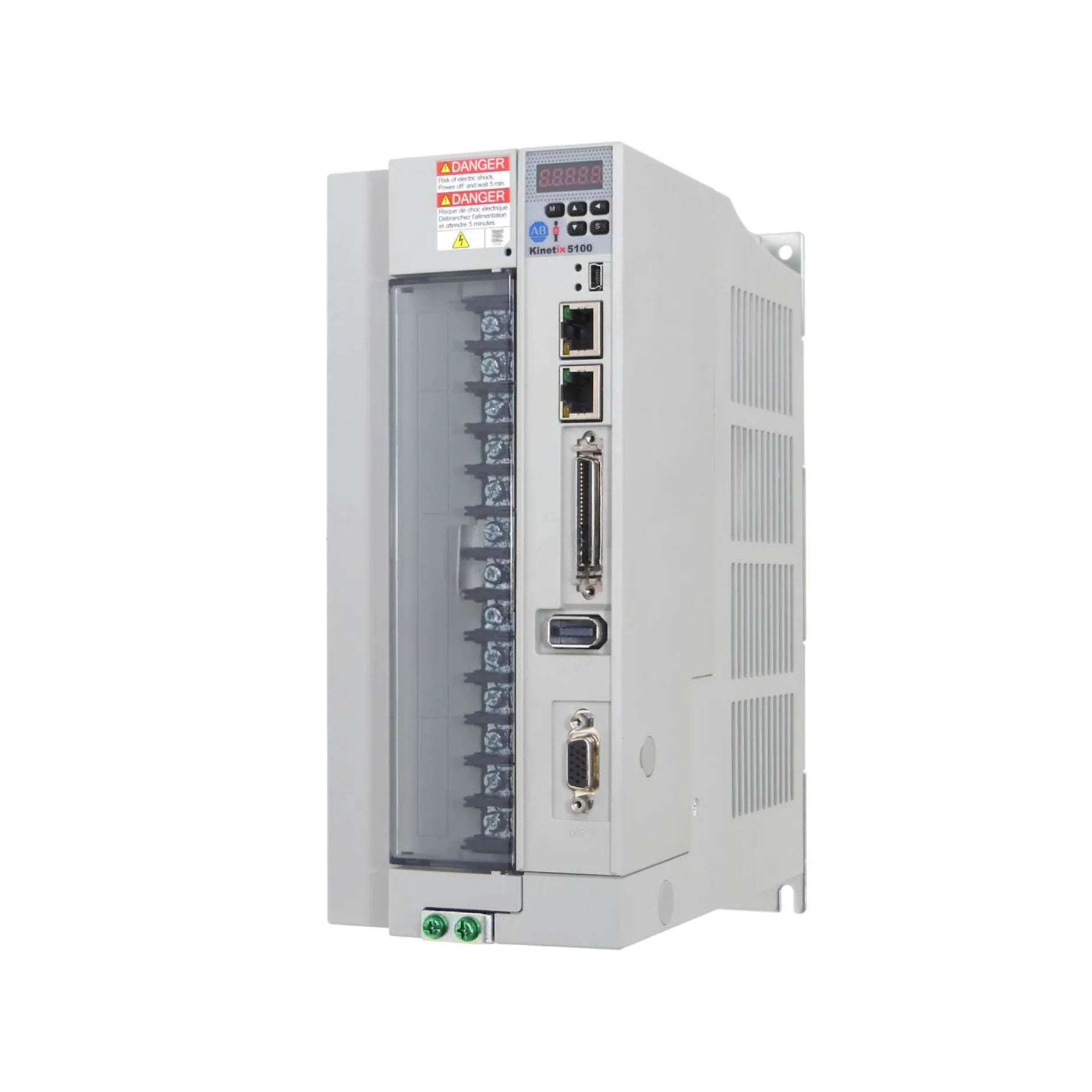

Allen-Bradley 2198-E4030-ERS

Overview

The Allen-Bradley 2198-E4030-ERS is a Kinetix 5100 single-axis servo drive designed for demanding motion control applications with 380–480V AC three-phase input. Delivering 3.0kW output power and 13.95A continuous current, this drive integrates Safe Torque Off (STO) safety functionality, an internal shunt IGBT and resistor, and spring tension connectors for simplified wiring. Built-in EtherNet/IP enables smooth integration with Allen-Bradley control systems.


Key Features

  • Drive Family: Kinetix 5100

  • Axis Control: Single-axis indexing

  • Rated Power: 3.0 kW

  • Continuous Current: 13.95A

  • Input Voltage: 380–480V AC, 3-phase

  • Safety Functionality: Safe Torque Off (STO)

  • Internal Shunt: Integrated IGBT and resistor

  • Connectors: Spring tension terminals

  • Network Interface: EtherNet/IP

  • Mounting: Panel mount

  • Enclosure: IP20 (open type)


Technical Specifications

  • Catalog Number: 2198-E4030-ERS

  • Input Frequency: 50/60 Hz

  • Peak Current: Higher than continuous for short bursts

  • Control Modes: Position, velocity, and indexing

  • Safety Standard: Complies with IEC 61800-5-2 (STO)

  • Cooling Method: Forced convection

  • Operating Temperature: 0°C to +50°C

  • Certifications: UL, CE, RoHS, cULus

  • Connectivity: EtherNet/IP for high-performance integration


Applications

  • High-speed cutting and converting machines

  • Industrial robotics and automation

  • Precision material handling systems

  • OEM machinery with mid-range power needs

  • Multi-axis synchronized systems


Why Choose the 2198-E4030-ERS (Kinetix 5100)

  • Reliable Power: Handles larger motors with 3.0kW output

  • Built-In Energy Management: Internal shunt reduces external component needs

  • Certified Safety: STO ensures safe machine operation

  • Time-Saving Setup: Spring connectors simplify wiring

  • Flexible Integration: EtherNet/IP communication built in


Order Now

The Allen-Bradley 2198-E4030-ERS servo drive is available and ships worldwide.



New & Genuine Products – Factory Sealed At PLCpartssolution, all our products are 100% new, genuine, and come in original factory-sealed packaging. We guarantee authentic components that meet the highest industry standards for performance and reliability.
1-Year Warranty Included All new products sold by PLCpartssolution come with a 1-year warranty. We stand behind the quality and reliability of our parts, ensuring coverage against manufacturing defects under normal operating conditions.
Disclaimer: PLCpartssolution is an independent supplier of surplus and refurbished industrial automation products. We are not an authorized distributor, reseller, or representative of the brands listed on this website. All trademarks, brand names, and logos are the property of their respective owners. PLCpartssolution is not affiliated with, endorsed by, or approved by ABB, Fanuc, B&R, Rockwell Automation, Schneider Electric, Siemens, or any other manufacturers mentioned.

Description

Allen-Bradley 2198-E4030-ERS

Overview

The Allen-Bradley 2198-E4030-ERS is a Kinetix 5100 single-axis servo drive designed for demanding motion control applications with 380–480V AC three-phase input. Delivering 3.0kW output power and 13.95A continuous current, this drive integrates Safe Torque Off (STO) safety functionality, an internal shunt IGBT and resistor, and spring tension connectors for simplified wiring. Built-in EtherNet/IP enables smooth integration with Allen-Bradley control systems.


Key Features

  • Drive Family: Kinetix 5100

  • Axis Control: Single-axis indexing

  • Rated Power: 3.0 kW

  • Continuous Current: 13.95A

  • Input Voltage: 380–480V AC, 3-phase

  • Safety Functionality: Safe Torque Off (STO)

  • Internal Shunt: Integrated IGBT and resistor

  • Connectors: Spring tension terminals

  • Network Interface: EtherNet/IP

  • Mounting: Panel mount

  • Enclosure: IP20 (open type)


Technical Specifications

  • Catalog Number: 2198-E4030-ERS

  • Input Frequency: 50/60 Hz

  • Peak Current: Higher than continuous for short bursts

  • Control Modes: Position, velocity, and indexing

  • Safety Standard: Complies with IEC 61800-5-2 (STO)

  • Cooling Method: Forced convection

  • Operating Temperature: 0°C to +50°C

  • Certifications: UL, CE, RoHS, cULus

  • Connectivity: EtherNet/IP for high-performance integration


Applications

  • High-speed cutting and converting machines

  • Industrial robotics and automation

  • Precision material handling systems

  • OEM machinery with mid-range power needs

  • Multi-axis synchronized systems


Why Choose the 2198-E4030-ERS (Kinetix 5100)

  • Reliable Power: Handles larger motors with 3.0kW output

  • Built-In Energy Management: Internal shunt reduces external component needs

  • Certified Safety: STO ensures safe machine operation

  • Time-Saving Setup: Spring connectors simplify wiring

  • Flexible Integration: EtherNet/IP communication built in


Order Now

The Allen-Bradley 2198-E4030-ERS servo drive is available and ships worldwide.
