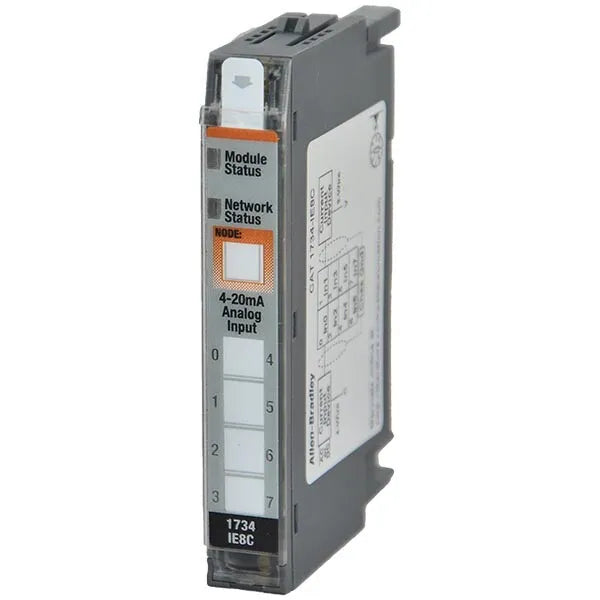

Allen-Bradley 1734-IE8C | 8-Channel Compact Analog Current Input Module for POINT I/O Systems

Overview

The Allen-Bradley 1734-IE8C is an 8-channel analog input module designed for current signal acquisition (4–20 mA) in distributed POINT I/O systems. This compact model offers high-density input in a smaller form factor, delivering accurate, high-resolution data for process and machine control applications.

Key Features

  • 8 Analog Current Inputs – Compact channel configuration (non-isolated)

  • Input Range: 4–20 mA standard industrial signal

  • High Resolution: 16-bit data precision

  • Space-Saving Design: Smaller than standard POINT I/O analog modules

  • Efficient I/O Density: Ideal for space-constrained or OEM applications

  • Built-in Diagnostics: Channel status and fault LEDs

  • Hot-Swappable: Supports replacement without system downtime

Technical Specifications

  • Catalog Number: 1734-IE8C

  • Series: POINT I/O Compact

  • Input Type: Analog current (4–20 mA)

  • Number of Channels: 8 (non-isolated)

  • Resolution: 16-bit

  • Input Impedance: ~100 Ohms

  • Accuracy: ±0.1% full scale typical

  • Update Rate: <2 ms per channel

  • Current Draw: 85 mA @ 5V DC, 50 mA @ 24V DC

  • Operating Temperature: -20°C to +55°C (-4°F to 131°F)

  • Storage Temperature: -40°C to +85°C (-40°F to 185°F)

  • Relative Humidity: 5% to 95% non-condensing

  • Certifications: UL, CE, CSA, C-Tick, RoHS

Applications

  • Process Control and Monitoring

  • Remote I/O Panels and Skids

  • Compact OEM Machine Automation

  • Tank Level, Flow, and Pressure Transducers

  • Industrial Building Systems

Why Choose the 1734-IE8C?

  • High-Density Input – 8 channels in a single, compact module

  • Reliable Current Measurement – Standard 4–20 mA signal support

  • POINT I/O Integration – Easy configuration in Studio 5000

  • Reduced Panel Space – Perfect for distributed and remote I/O

  • Cost-Effective Expansion – Increase analog input capacity without increasing footprint

Order Now

Available and ready for worldwide shipping.

New & Genuine Products – Factory Sealed At PLCpartssolution, all our products are 100% new, genuine, and come in original factory-sealed packaging. We guarantee authentic components that meet the highest industry standards for performance and reliability.
1-Year Warranty Included All new products sold by PLCpartssolution come with a 1-year warranty. We stand behind the quality and reliability of our parts, ensuring coverage against manufacturing defects under normal operating conditions.
Disclaimer: PLCpartssolution is an independent supplier of surplus and refurbished industrial automation products. We are not an authorized distributor, reseller, or representative of the brands listed on this website. All trademarks, brand names, and logos are the property of their respective owners. PLCpartssolution is not affiliated with, endorsed by, or approved by ABB, Fanuc, B&R, Rockwell Automation, Schneider Electric, Siemens, or any other manufacturers mentioned.
