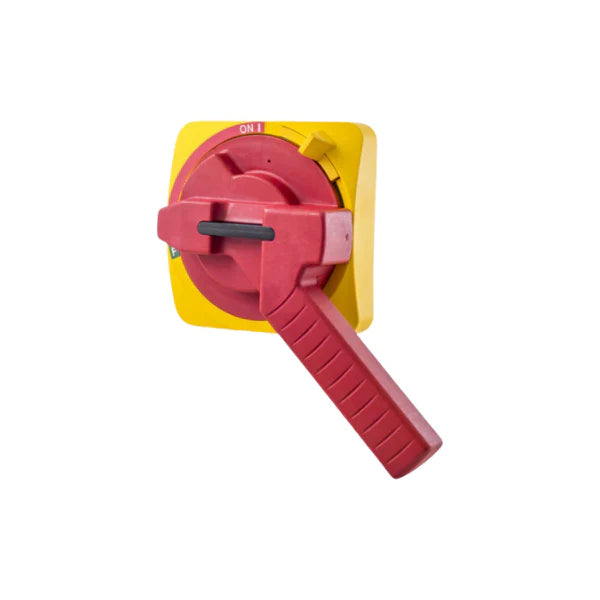

Allen-Bradley 194R-HM4E disconnect handle, red/yellow, with defeater, NEMA 4X, IP66, for 194R switches.

Allen-Bradley 194R-HM4E

SKU: 194R-HM4E
Your Price:
$360.00
Add to wishlist
Checkout Secure
Order in the next to get it by

10+ Available in Stock

  • Image of Free Shipping on All Orders

    Free Shipping on All Orders
  • Image of 1 Year Warranty

    We will beat any price

    1 Year Warranty
  • Image of Experts Aavaiable 7/24/365

    Free shipping

    Experts Aavaiable 7/24/365
  • Image of 30 days money-back

    30 days money-back

Allen-Bradley 194R-HM4E

Product Overview

The Allen-Bradley 194R-HM4E is a heavy-duty external operating handle designed for use with 194R series disconnect switches. Featuring a red/yellow color scheme for high visibility and a defeater mechanism for authorized access, this handle is rated for NEMA Type 3R, 3, 4, 4X, and 12 enclosures. It meets IP66 protection standards and supports installation in demanding industrial and outdoor environments.

Key Highlights

  • Application: For use with 194R rotary disconnect switches

  • Handle Orientation: Standard mounting

  • Color: Red/yellow for safety and lockout visibility

  • Defeater Mechanism: Allows access with tool when in locked OFF position

  • Environmental Rating: NEMA 3R, 3, 4, 4X, 12

  • Ingress Protection: IP66 – dust-tight and water-resistant

  • Material: Corrosion-resistant plastic for harsh conditions

  • Mounting: Door-mounted with shaft coupling

Detailed Specifications

  • Part Number: 194R-HM4E

  • Type: External operating handle

  • Orientation: Standard

  • Lockable: Accepts up to 3 padlocks in OFF position

  • Temperature Rating: -25°C to +60°C

  • Mount Style: Through-door, compatible with 194R shaft assemblies

  • Certifications: UL, CE, CSA, RoHS

  • Use Case: Indoor or outdoor panels requiring secure disconnection

Common Uses

  • Motor and equipment disconnect systems

  • Industrial control panels and switchboards

  • OEM electrical enclosures

  • Outdoor machinery and process equipment

  • Environments requiring high ingress protection

Why It Stands Out

  • Red/yellow color improves lockout/tagout visibility

  • Rugged and weatherproof with IP66 protection

  • Built-in defeater ensures safety and controlled access

  • Supports multiple NEMA ratings for versatile applications

  • Engineered for reliable operation in harsh environments

Get Yours Today

The Allen-Bradley 194R-HM4E disconnect handle is in stock and ready to ship.

New & Genuine Products – Factory Sealed At PLCpartssolution, all our products are 100% new, genuine, and come in original factory-sealed packaging. We guarantee authentic components that meet the highest industry standards for performance and reliability.
1-Year Warranty Included All new products sold by PLCpartssolution come with a 1-year warranty. We stand behind the quality and reliability of our parts, ensuring coverage against manufacturing defects under normal operating conditions.
Disclaimer: PLCpartssolution is an independent supplier of surplus and refurbished industrial automation products. We are not an authorized distributor, reseller, or representative of the brands listed on this website. All trademarks, brand names, and logos are the property of their respective owners. PLCpartssolution is not affiliated with, endorsed by, or approved by ABB, Fanuc, B&R, Rockwell Automation, Schneider Electric, Siemens, or any other manufacturers mentioned.
