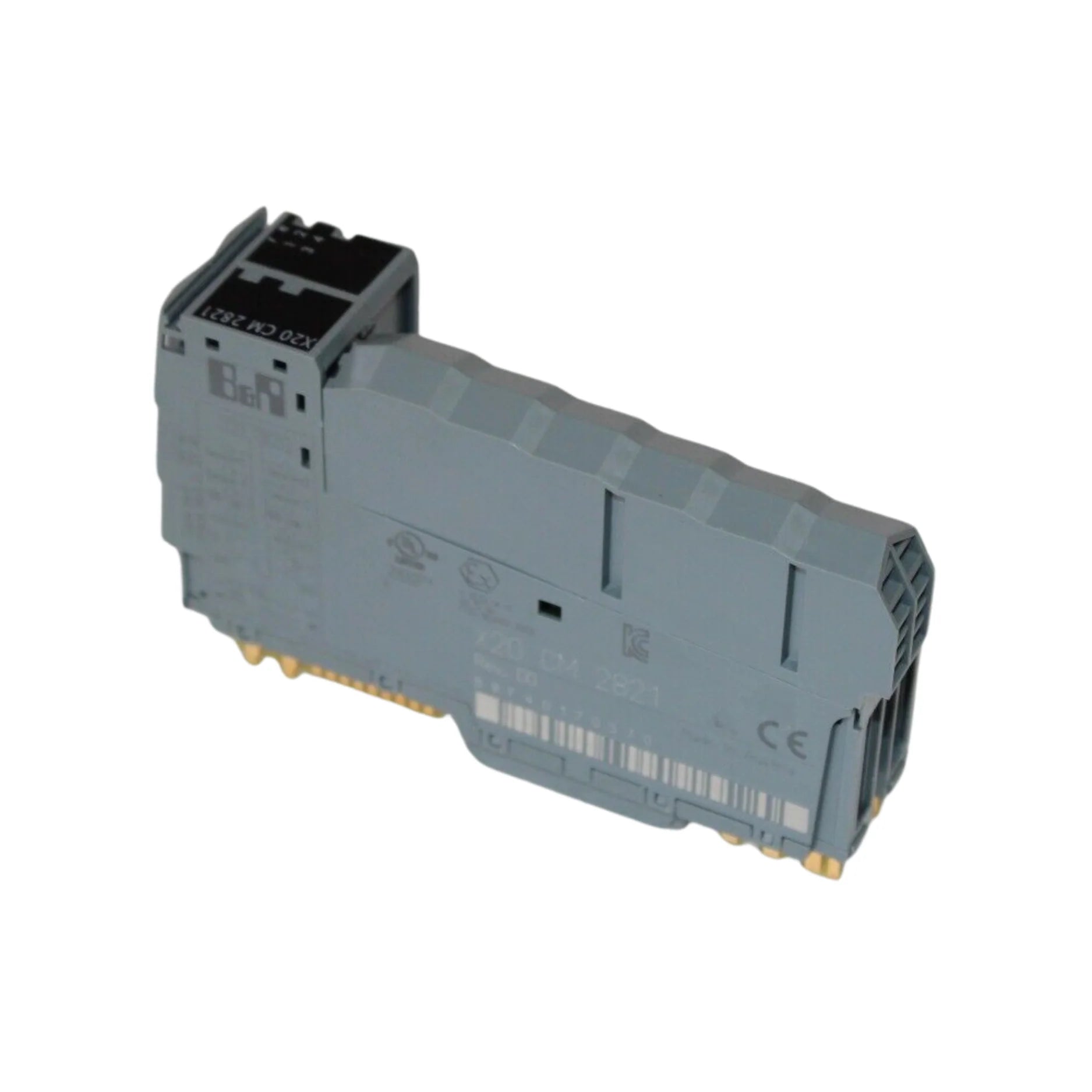

B&R X20CM2821 counter module, 2-channel, 24 V DC, X20 Series

B&R X20CM2821

SKU: X20CM2821
Your Price:
$5,300.00
Add to wishlist
Checkout Secure
Order in the next to get it by

10+ Available in Stock

  • Image of Free Shipping on All Orders

    Free Shipping on All Orders
  • Image of 1 Year Warranty

    We will beat any price

    1 Year Warranty
  • Image of Experts Aavaiable 7/24/365

    Free shipping

    Experts Aavaiable 7/24/365
  • Image of 30 days money-back

    30 days money-back

B&R X20CM2821 | Counter Module | 2 Channels | 24 V DC | X20 Series

Overview

The B&R X20CM2821 is a 2-channel counter module from the X20 Series, designed to handle high-speed counting and frequency measurement tasks in industrial automation. It supports event counting, position tracking, and speed detection for incremental encoders and pulse generators.

Key Features

  • 2 high-speed counter channels

  • Supports pulse, frequency, and position counting

  • 24 V DC input level with short-circuit protection

  • Configurable edge detection and count direction

  • Direct integration with X20 controllers

  • Status LEDs for input diagnostics

  • Compact DIN-rail mountable design

Technical Specifications

  • Catalog Number: X20CM2821

  • Channels: 2 digital counters

  • Input Type: 24 V DC (sink/source)

  • Max Input Frequency: Typically up to 100 kHz

  • Input Filtering: Configurable via software

  • Count Modes: Up/down, quadrature, single-ended

  • Galvanic Isolation: Yes (channel to system)

  • Diagnostics: LED indicators for each channel

  • Mounting: DIN rail with X20 backplane

  • Protection Class: IP20

  • Operating Temperature: 0 °C to +55 °C

  • Storage Temperature: –25 °C to +70 °C

  • Dimensions: Approx. 12.5 × 100 × 72 mm

  • Weight: ~80 g

Applications

  • High-speed counting in packaging and conveyor systems

  • Position tracking for incremental encoders

  • Speed measurement for rotating machinery

  • Industrial automation with real-time monitoring

  • OEM machines requiring event or pulse counting

Why Choose X20CM2821

  • Accurate and fast counter inputs

  • Supports multiple count modes for flexibility

  • Easy setup and diagnostics in Automation Studio

  • Compact for modular installations

  • Reliable for continuous industrial operation

Order Now

The B&R X20CM2821 counter module is available and ships worldwide.

New & Genuine Products – Factory Sealed At PLCpartssolution, all our products are 100% new, genuine, and come in original factory-sealed packaging. We guarantee authentic components that meet the highest industry standards for performance and reliability.
1-Year Warranty Included All new products sold by PLCpartssolution come with a 1-year warranty. We stand behind the quality and reliability of our parts, ensuring coverage against manufacturing defects under normal operating conditions.
Disclaimer: PLCpartssolution is an independent supplier of surplus and refurbished industrial automation products. We are not an authorized distributor, reseller, or representative of the brands listed on this website. All trademarks, brand names, and logos are the property of their respective owners. PLCpartssolution is not affiliated with, endorsed by, or approved by ABB, Fanuc, B&R, Rockwell Automation, Schneider Electric, Siemens, or any other manufacturers mentioned.
