Schneider Electric HMISTU855 | 5.7" Magelis STU HMI

Schneider Electric HMISTU855 | 5.7" Magelis STU Color Touchscreen HMI with Ethernet & USB Connectivity

Overview

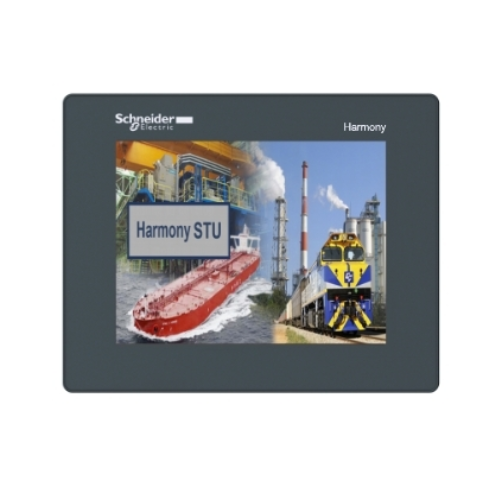

The Schneider Electric HMISTU855 is a 5.7-inch color touchscreen Human-Machine Interface (HMI) from the Magelis STU series, designed to provide intuitive control and monitoring for industrial applications. Featuring a 320 x 240 pixels (QVGA) resolution and 65K color TFT display, this compact HMI offers clear and vibrant visuals. Its innovative 22 mm-diameter push-button style mounting system simplifies installation, eliminating the need for extensive enclosure modifications.

Equipped with embedded Ethernet and USB ports, the HMISTU855 ensures flexible communication with various industrial devices and supports remote access capabilities.

Key Features

• Display: 5.7-inch TFT color touchscreen with 320 x 240 pixels (QVGA) resolution and 65K colors.

• Mounting: 22 mm-diameter push-button style, facilitating easy and quick installation without extensive panel cutouts.

• Connectivity:

  • Ethernet Port: 10/100 Base-T RJ45 for network communication.

  • Serial Port: Multiprotocol RS-485/232 RJ45 for device integration.

  • USB Ports: One mini-USB device port and one USB Host V2.0 port for peripheral connectivity.

• Memory: 16 MB Flash application memory with 64 KB backup FRAM; expandable storage via USB.

• Backlight: LED with a lifespan of approximately 50,000 hours, ensuring long-term reliability.

• Power Supply: 24V DC with a removable connector for secure power connections.

• Software Compatibility: Configurable using Schneider Electric's Vijeo Designer software, enabling efficient application development and deployment.

Technical Specifications

• Model Number: HMISTU855

• Display Size: 5.7 inches

• Resolution: 320 x 240 pixels (QVGA)

• Color Support: 65K colors

• Backlight Type: LED

• Communication Ports:

  • Ethernet: 10/100 Base-T RJ45

  • Serial: RS-485/232 RJ45

  • USB: 1x mini-USB device port, 1x USB Host V2.0 port

• Memory Capacity: 16 MB Flash, 64 KB backup FRAM

• Power Requirements: 24V DC

• Mounting Method: 22 mm-diameter push-button style

• Dimensions: 163 mm x 56.5 mm x 129.15 mm

• Operating Temperature Range: 0°C to 50°C

Applications

• Compact Machines: Ideal for space-constrained industrial equipment requiring user interaction.

• Handling Systems: Enhances control and monitoring in material handling applications.

• Food & Beverage Industry: Suitable for applications requiring strict hygiene standards and reliable operation.

• Pharmaceutical Industry: Ensures precise control and monitoring in regulated environments.

Why Choose the HMISTU855?

• Compact and Innovative Design: The unique push-button style mounting system simplifies installation and reduces panel modification requirements.

• Versatile Connectivity: Embedded Ethernet and USB ports provide flexible communication options with various industrial devices.

• User-Friendly Configuration: Compatible with Vijeo Designer software, facilitating straightforward application development and deployment.

• Reliable Performance: Durable LED backlight and robust design ensure long-term operation in industrial environments.

Order Now

In stock and ready for immediate shipment. Enhance your industrial control systems with the Schneider Electric HMISTU855 Magelis STU 5.7" color touchscreen HMI.
