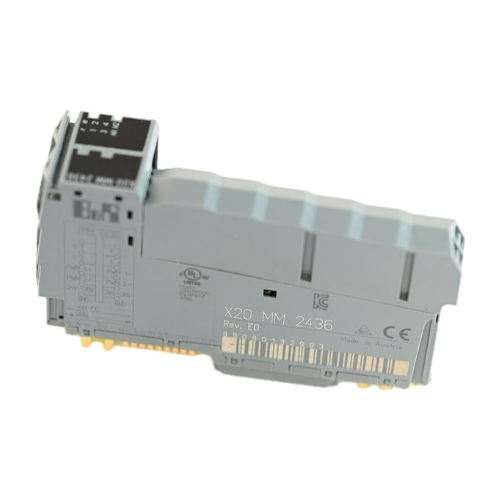

B&R X20MM2436 stepper motor output module, 2-axis control, pulse/direction, X20 Series

B&R X20MM2436 | Motion Control Module for X20 Series

SKU: X20MM2436
Your Price:
$1,852.00
Add to wishlist
Checkout Secure
Order in the next to get it by

10+ Available in Stock

  • Image of Free Shipping on All Orders

    Free Shipping on All Orders
  • Image of 1 Year Warranty

    We will beat any price

    1 Year Warranty
  • Image of Experts Aavaiable 7/24/365

    Free shipping

    Experts Aavaiable 7/24/365
  • Image of 30 days money-back

    30 days money-back

B&R X20MM2436 | Stepper Motor Output Module | 2-Axis | X20 Series | Integrated Control

Overview

The B&R X20MM2436 is a 2-axis stepper motor output module from the X20 series, designed for precise motion control using pulse/direction signals. It enables fast and synchronized positioning for applications that require open-loop stepper motor operation, all in a compact DIN-rail mountable form.

Key Features

  • Controls up to 2 stepper motor axes

  • Pulse/direction output for each axis

  • 24 V digital outputs for control signals

  • Supports synchronized motion sequences

  • Designed for open-loop control systems

  • Full integration with B&R Automation Studio

  • Compact X20 form factor with high reliability

Technical Specifications

  • Catalog Number: X20MM2436

  • Number of Axes: 2

  • Output Type: Pulse/direction

  • Output Voltage: 24 V DC (typical)

  • Max Pulse Frequency: Typically up to 100 kHz per channel

  • Interface: X20 backplane bus

  • Mounting: DIN rail

  • Protection Class: IP20 (when installed)

  • Operating Temperature: 0 °C to +55 °C

  • Storage Temperature: –25 °C to +70 °C

  • Dimensions: Approx. 12.5 × 100 × 72 mm

  • Weight: ~100 g

Applications

  • Stepper motor-based positioning systems

  • Automated pick-and-place and conveyor setups

  • Packaging and material handling machinery

  • Cost-effective motion control without encoder feedback

  • OEM machines requiring simple multi-axis motion

Why Choose X20MM2436

  • Enables precise 2-axis motion without complex servo systems

  • Easy integration with the rest of the X20 I/O ecosystem

  • Reliable and compact for industrial environments

  • Full support in B&R software tools

  • Ideal for open-loop motion automation

Order Now

The B&R X20MM2436 stepper motor output module is available and ships worldwide.

New & Genuine Products – Factory Sealed At PLCpartssolution, all our products are 100% new, genuine, and come in original factory-sealed packaging. We guarantee authentic components that meet the highest industry standards for performance and reliability.
1-Year Warranty Included All new products sold by PLCpartssolution come with a 1-year warranty. We stand behind the quality and reliability of our parts, ensuring coverage against manufacturing defects under normal operating conditions.
Disclaimer: PLCpartssolution is an independent supplier of surplus and refurbished industrial automation products. We are not an authorized distributor, reseller, or representative of the brands listed on this website. All trademarks, brand names, and logos are the property of their respective owners. PLCpartssolution is not affiliated with, endorsed by, or approved by ABB, Fanuc, B&R, Rockwell Automation, Schneider Electric, Siemens, or any other manufacturers mentioned.
