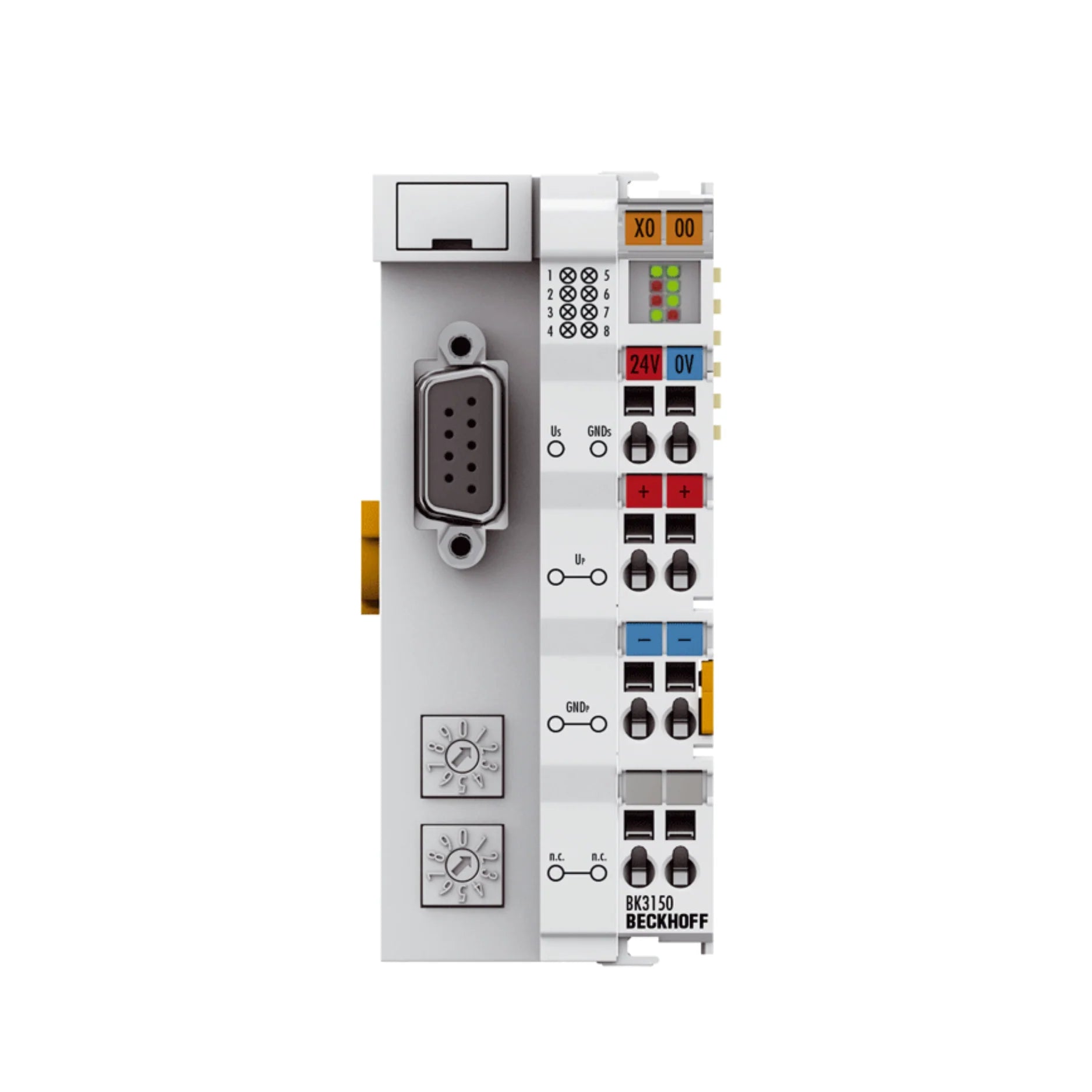

Beckhoff BK3150 PROFIBUS compact bus coupler

Beckhoff BK3150

SKU: BK3150
Your Price:
$230.00
Add to wishlist
Checkout Secure
Order in the next to get it by

10+ disponíveis em estoque

  • Image of Frete grátis em todos os pedidos

    Garantia

    Frete grátis em todos os pedidos
  • Image of Garantia de 1 ano

    Nós superaremos qualquer preço

    Garantia de 1 ano
  • Image of Especialistas disponíveis 24 horas por dia, 7 dias por semana, 365 dias por ano

    Frete grátis

    Especialistas disponíveis 24 horas por dia, 7 dias por semana, 365 dias por ano
  • Image of 30 dias de devolução do dinheiro

    Frete grátis

    30 dias de devolução do dinheiro

Beckhoff BK3150 – Overview

The Beckhoff BK3150 is a compact bus coupler designed for the PROFIBUS fieldbus system, integrating with the Beckhoff Bus Terminal architecture. It supports connection of up to 64 Bus Terminals (up to 255 with K-bus extension) and provides automatic baud rate detection up to 12 Mbaud. Optimised for dense installations and industrial automation environments.

Key Features

  • Supports connection of up to 64 Bus Terminals (255 with K-bus extension)

  • Max. fieldbus data: 128 bytes input + 128 bytes output

  • Automatic baud rate detection up to 12 Mbaud

  • Standard D-sub 9-pin interface for PROFIBUS connection

  • Compact housing for efficient installation in control cabinets

  • Power supply 24 V DC, K-bus current supply up to 1750 mA

  • Electrical isolation of 500 V between power contact / supply / fieldbus

  • Robust industrial design, mounting on 35 mm DIN-rail

Technical Specifications

  • Part Number: BK3150

  • Number of Bus Terminals: 64 (255 when K-bus extension used)

  • Max. Data Bytes (Fieldbus): 128 bytes input, 128 bytes output

  • Bus Interface: 1 × D-sub 9-pin

  • Data Transfer Rate: Automatic detection, up to 12 Mbaud

  • Power Supply: 24 V DC (-15 % / +20 %)

  • Input Current: 70 mA + (total K-bus current)/4, max 500 mA

  • Current Supply for K-bus: 1750 mA

  • Power Contacts: max. 24 V DC / max. 10 A

  • Electrical Isolation: 500 V (power contact / supply voltage / fieldbus)

  • Dimensions (W × H × D): 44 mm × 100 mm × 68 mm

  • Weight: Approx. 100 g

  • Operating Temperature: -25 °C … +60 °C

  • Storage Temperature: -40 °C … +85 °C

  • Protection Rating: IP20

  • Approvals / Markings: CE, CCC, UL, ATEX, IECEx

  • Manufacturer: Beckhoff Automation

  • Packed weight/dimensions: 0.10 – 0.23 kg (0.22 – 0.50 lb) | 12 × 7 × 6 cm (4.7 × 2.8 × 2.4 in)

Applications

  • Integration of Beckhoff Bus Terminals into PROFIBUS networks

  • Compact machine control cabinets where space is limited

  • Distributed I/O architectures requiring fieldbus connectivity

  • Industrial automation systems using PROFIBUS DP for device communication

Why Choose Beckhoff BK3150

  • High flexibility in connecting up to 255 Bus Terminals via K-bus extension

  • Wide fieldbus data bandwidth (128 bytes in/out) for comprehensive I/O usage

  • Proven industrial design with extensive approvals and wide temperature range

  • Efficient integration into compact control panels thanks to slim housing

  • Beckhoff’s longstanding reliability in automation environments

Order Now

The Beckhoff BK3150 PROFIBUS Compact Bus Coupler is available for order and ships worldwide.



Produtos novos e genuínos – lacrados de fábrica Na PLCpartssolution, todos os nossos produtos são 100% novos, genuínos e vêm na embalagem original lacrada de fábrica. Garantimos componentes autênticos que atendem aos mais altos padrões de desempenho e confiabilidade da indústria.
Garantia de 1 ano incluída Todos os produtos novos vendidos pela PLCpartssolution contam com garantia de 1 ano. Garantimos a qualidade e a confiabilidade de nossas peças, garantindo cobertura contra defeitos de fabricação em condições normais de operação.
Aviso Legal: A PLCpartssolution é uma fornecedora independente de produtos de automação industrial excedentes e recondicionados. Não somos distribuidores, revendedores ou representantes autorizados das marcas listadas neste site. Todas as marcas registradas, nomes de marcas e logotipos são propriedade de seus respectivos proprietários. A PLCpartssolution não é afiliada, endossada ou aprovada pela ABB, Fanuc, B&R, Rockwell Automation, Schneider Electric, Siemens ou quaisquer outros fabricantes mencionados.
