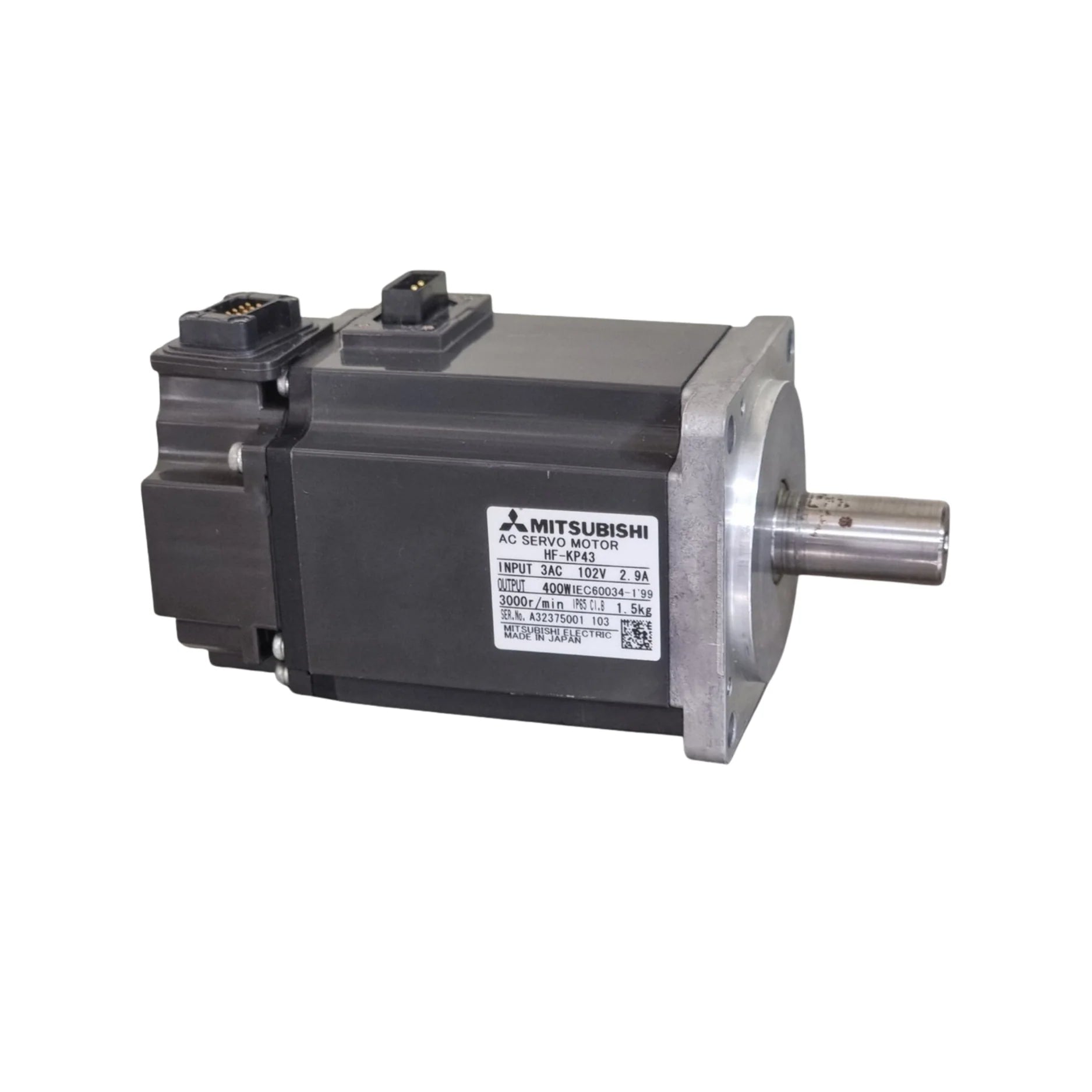

Mitsubishi HF-KP43
Overview
The Mitsubishi HF-KP43 is a compact 400 W servo motor from the HF-KP series, designed for applications requiring high response and precise positioning. Featuring a keyed shaft and incremental encoder, this low-inertia motor is ideal for compact machinery with demanding motion control needs.
Key Features
Rated Power: 400 W
Rated Speed: 3000 rpm (max speed: 6000 rpm)
Encoder: 131,072 p/rev Incremental
Shaft: Keyed, with or without oil seal (depending on variant)
Compact, low-inertia design for fast response
IP65 protection rating (excluding shaft)
Compatible with Mitsubishi MR-J3 and MR-J2S servo amplifiers
Flange mount type for easy installation
Technical Specifications
Model Number: HF-KP43
Rated Torque: Approx. 1.27 Nm
Max Torque: Approx. 3.81 Nm
Rated Voltage: 200 V AC
Rotor Inertia: 0.13 × 10⁻⁴ kg·m²
Cooling Method: Natural convection
Mounting: Flange-mounted
Operating Temp: 0 °C to +40 °C
Insulation Class: F
Certifications: CE, UL, RoHS
Applications
Semiconductor and electronics manufacturing
Compact pick-and-place machines
Precision conveyors
Automated inspection systems
Small robotic and mechatronic equipment
Why Choose the HF-KP43
Excellent speed and torque response
Ideal for high-precision, small-space applications
Strong compatibility with Mitsubishi servo drives
Built for reliability and long service life
Proven Mitsubishi servo performance
Order Now
The Mitsubishi HF-KP43 servo motor is available and ships worldwide.
Return to Mitsubishi HF Series Servo Motors for more options in this product line.
Explore our complete range of Mitsubishi Servo Motors, including HF, HC, and other high-performance AC servo models for motion control and automation.
