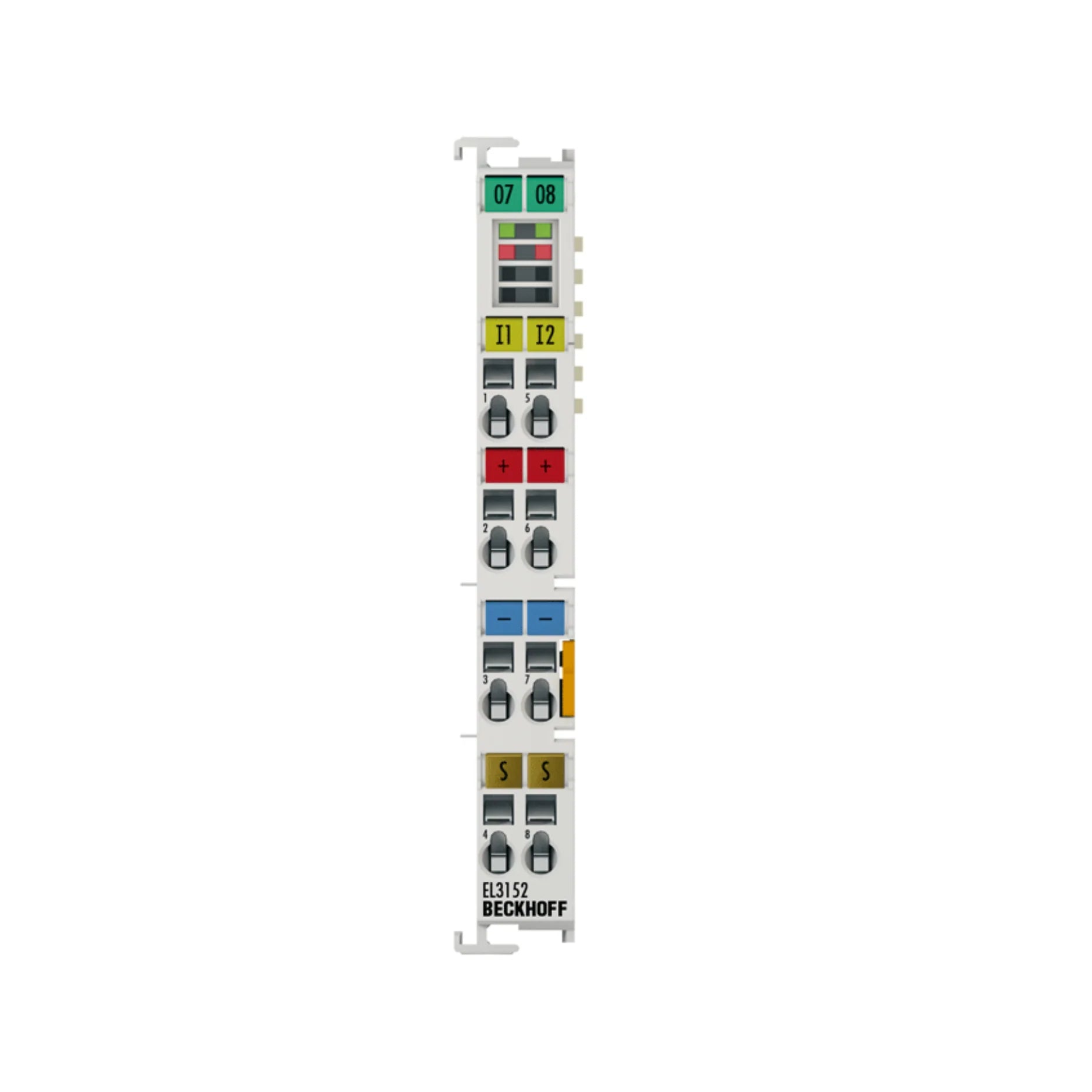

Beckhoff EL3152 2-channel analog input terminal 4–20 mA

Beckhoff EL3152

SKU: EL3152
Your Price:
$470.00
Add to wishlist
Checkout Secure
Order in the next to get it by

10+ disponíveis em estoque

  • Image of Frete grátis em todos os pedidos

    Garantia

    Frete grátis em todos os pedidos
  • Image of Garantia de 1 ano

    Nós superaremos qualquer preço

    Garantia de 1 ano
  • Image of Especialistas disponíveis 24 horas por dia, 7 dias por semana, 365 dias por ano

    Frete grátis

    Especialistas disponíveis 24 horas por dia, 7 dias por semana, 365 dias por ano
  • Image of 30 dias de devolução do dinheiro

    Frete grátis

    30 dias de devolução do dinheiro

Beckhoff EL3152 – Overview

The Beckhoff EL3152 is a 2-channel analog input terminal designed for 4–20 mA current signals. It offers 16-bit resolution, fast conversion, and full electrical isolation for reliable signal acquisition in industrial automation systems.

Key Features

  • Two analog input channels for 4–20 mA current signals

  • 16-bit resolution (including sign)

  • Very fast conversion time (~60 µs, fast mode ~40 µs)

  • Input filter limit frequency up to ~5 kHz

  • Electrical isolation of 500 V between EtherCAT bus and signal channels

  • Compact 12 mm DIN-rail housing width

  • On-module LED indicators for diagnostics and channel status

  • Designed for industrial readiness with wide temperature range

Technical Specifications

  • Part Number: EL3152

  • Number of Inputs: 2 (single-ended)

  • Signal Type: 4–20 mA current input

  • Resolution: 16-bit (including sign)

  • Conversion Time: Approx. 60 µs, fast mode ~40 µs

  • Input Filter Limit Frequency: 5 kHz

  • Electrical Isolation: 500 V (E-bus / signal)

  • Current Consumption (E-bus): Typical ~170 mA

  • Housing Width: ~12 mm

  • Operating Temperature: –25 °C … +60 °C

  • Storage Temperature: –40 °C … +85 °C

  • Protection Rating: IP20

  • Mounting: 35 mm DIN-rail

  • Manufacturer: Beckhoff Automation

  • Weight: Approx. 0.10 – 0.23 kg (0.22 – 0.50 lb)

  • Packed Dimensions: 12 × 7 × 6 cm (4.7 × 2.8 × 2.4 in)

Applications

  • Precise current signal acquisition (4–20 mA) in machine and process automation

  • Use in distributed I/O systems based on EtherCAT technology

  • High-speed measurement applications requiring minimal latency

  • Control cabinet installations where space is constrained

Why Choose Beckhoff EL3152

  • Dual-channel in a slim module for efficient space utilization

  • Very high resolution and fast response for accurate signal capture

  • Robust design with full galvanic isolation to protect signal integrity

  • Seamless integration into EtherCAT networks and modular I/O systems

  • Trusted industrial brand and proven reliability

Order Now

The Beckhoff EL3152 2-Channel Analog Input Terminal is available for order and ships worldwide.


Produtos novos e genuínos – lacrados de fábrica Na PLCpartssolution, todos os nossos produtos são 100% novos, genuínos e vêm na embalagem original lacrada de fábrica. Garantimos componentes autênticos que atendem aos mais altos padrões de desempenho e confiabilidade da indústria.
Garantia de 1 ano incluída Todos os produtos novos vendidos pela PLCpartssolution contam com garantia de 1 ano. Garantimos a qualidade e a confiabilidade de nossas peças, garantindo cobertura contra defeitos de fabricação em condições normais de operação.
Aviso Legal: A PLCpartssolution é uma fornecedora independente de produtos de automação industrial excedentes e recondicionados. Não somos distribuidores, revendedores ou representantes autorizados das marcas listadas neste site. Todas as marcas registradas, nomes de marcas e logotipos são propriedade de seus respectivos proprietários. A PLCpartssolution não é afiliada, endossada ou aprovada pela ABB, Fanuc, B&R, Rockwell Automation, Schneider Electric, Siemens ou quaisquer outros fabricantes mencionados.
