Beckhoff EL7041 stepper motor terminal 48 V DC 5 A EtherCAT

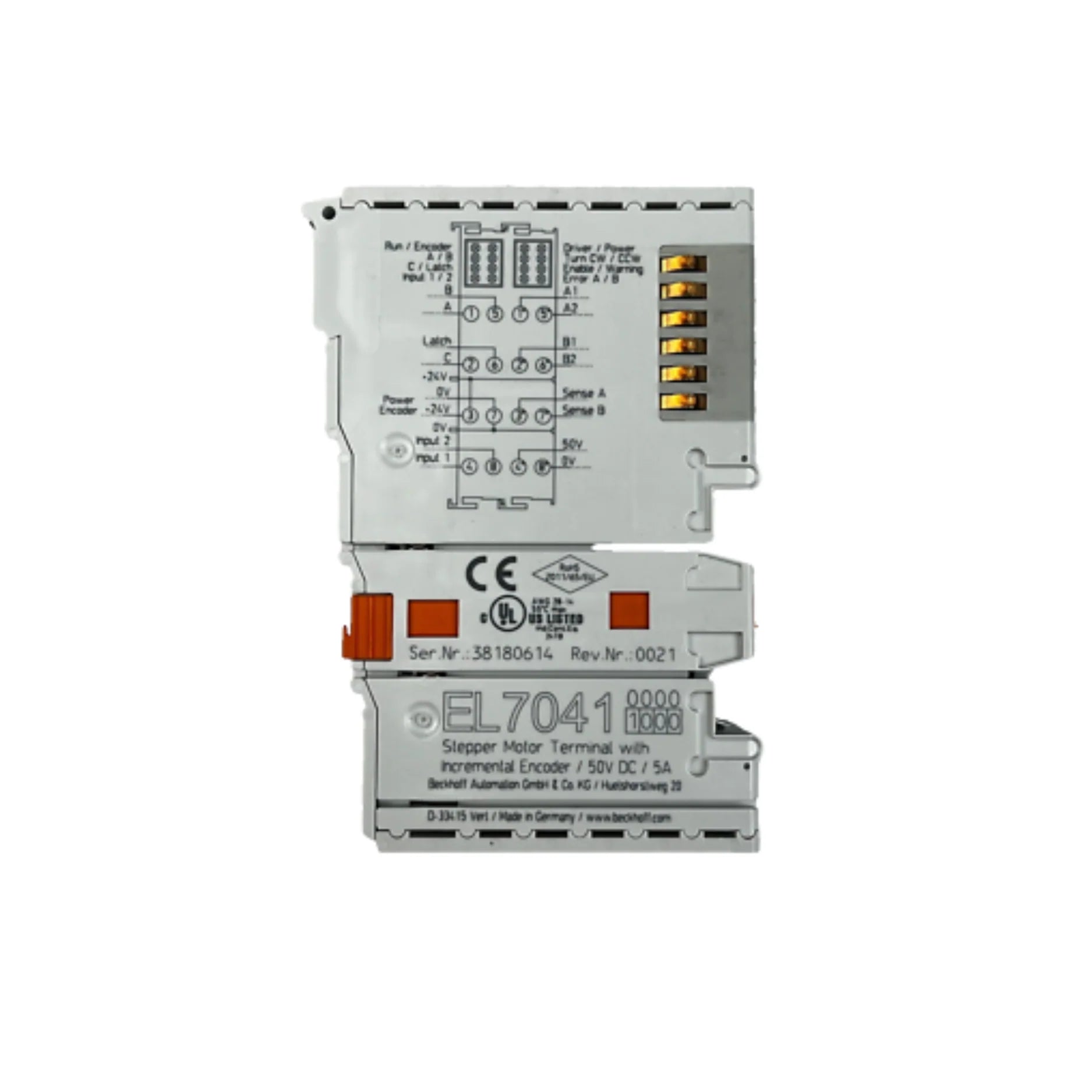

Beckhoff EL7041

SKU: EL7041
Your Price:
$280.00
Add to wishlist
Checkout Secure
Order in the next to get it by

10+ disponíveis em estoque

  • Image of Frete grátis em todos os pedidos

    Garantia

    Frete grátis em todos os pedidos
  • Image of Garantia de 1 ano

    Nós superaremos qualquer preço

    Garantia de 1 ano
  • Image of Especialistas disponíveis 24 horas por dia, 7 dias por semana, 365 dias por ano

    Frete grátis

    Especialistas disponíveis 24 horas por dia, 7 dias por semana, 365 dias por ano
  • Image of 30 dias de devolução do dinheiro

    Frete grátis

    30 dias de devolução do dinheiro

Beckhoff EL7041 – Overview

The Beckhoff EL7041 is a compact EtherCAT terminal designed for the direct connection of 2-phase stepper motors up to 5 A.
It integrates both the power stage and control logic, providing incremental encoder inputs and limit switch inputs for position feedback and safety. With microstepping up to 64×, the EL7041 ensures smooth, quiet motion and precise control in compact automation setups.

Key Features

  • Controls 2-phase stepper motors up to 5 A per channel

  • Supply voltage range: 8 V DC to 48 V DC for the power stage

  • Integrated incremental encoder interface (A, B, and Z channels)

  • Two digital inputs for limit or reference switches

  • Adjustable microstepping resolution up to 1/64 step

  • Current control frequency approximately 30 kHz

  • LED indicators for status, enable, warning, and error

  • 500 V electrical isolation between E-bus and field level

  • Compact 12 mm housing for DIN-rail mounting, IP20 protection

Technical Specifications

  • Part Numbers:
      – EL7041
      – EL 7041

  • Channels: 1 (for 2-phase stepper motors)

  • Rated Output Current: 5 A

  • Power Supply (Motor): 8 V DC … 48 V DC

  • Encoder Input Frequency: up to 400 kHz (quadrature evaluation)

  • Microstepping Resolution: up to 1/64 step

  • Isolation Voltage: 500 V (E-bus/field)

  • Operating Temperature: 0 °C … +55 °C

  • Storage Temperature: –25 °C … +85 °C

  • Mounting: 35 mm DIN rail

  • Protection Class: IP20

  • Dimensions (W × H × D): approx. 12 mm × 100 mm × 68 mm

  • Manufacturer: Beckhoff Automation

Weight: 0.10 – 0.23 kg (0.22 – 0.50 lb)
Packed dimensions: 12 × 7 × 6 cm (4.7 × 2.8 × 2.4 in)

Applications

  • Direct EtherCAT integration of stepper motors in automation systems

  • Compact motion control in packaging, labeling, and assembly machines

  • Cost-effective stepper motor axes in distributed control architectures

  • Applications requiring quiet, smooth, and precise motor movement

Why Choose Beckhoff EL7041

  • Combines motor driver, feedback, and I/O in a single compact terminal

  • Reduces wiring and panel space by integrating into EtherCAT I/O

  • Adjustable microstepping for precise, low-noise motion

  • Reliable electrical isolation and industrial-grade durability

  • Optimized for distributed automation and modular system design

Order Now

The Beckhoff EL7041 Stepper Motor Terminal is available for order and ships worldwide.
