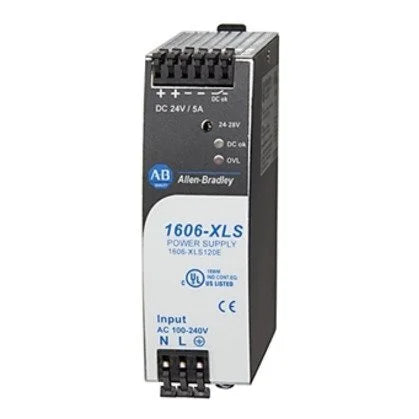

Allen-Bradley 1606-XLS120E | 120W High-Efficiency DIN-Rail Power Supply for Industrial Applications
Overview
The Allen-Bradley 1606-XLS120E is a 120W switched-mode DIN-rail power supply delivering 24V DC at 5A. Designed for use in industrial automation systems, it features enhanced performance, high energy efficiency, and advanced protection features. This model belongs to the XLS series, which offers improved regulation and operational reliability.
Key Features
-
24V DC / 5A Output – Delivers stable power for PLCs, HMIs, sensors, and relays
-
Wide Input Voltage Range – 85–264V AC / 90–375V DC
-
High Efficiency (up to 94.6%) – Reduces energy loss and heat generation
-
Single-Phase Operation – Compact design ideal for panel installations
-
Power Boost Function – Up to 150% peak load for short durations
-
Overload, Overvoltage & Short-Circuit Protection – Ensures safety and equipment longevity
-
Conformal Coated PCB – Enhanced resistance to dust and humidity
-
DIN-Rail Mountable – Fast and flexible installation
Technical Specifications
-
Catalog Number: 1606-XLS120E
-
Output Voltage: 24V DC (adjustable 24–28V DC)
-
Output Current: 5A continuous (6A for 4 seconds boost)
-
Output Power: 120W
-
Input Voltage Range: 85–264V AC / 90–375V DC
-
Input Frequency: 47–63 Hz
-
Efficiency: Up to 94.6%
-
Mounting: DIN rail (EN 60715)
-
Operating Temperature: -25°C to +70°C (derating >60°C)
-
Dimensions (HxWxD): Approx. 124 x 32 x 124 mm
-
Certifications: UL, CE, CSA, CB, GL, RoHS
Applications
-
Industrial Control Panels
-
Automation and Machine Systems
-
Process Control and Instrumentation
-
Material Handling Equipment
-
Building and Facility Management
Why Choose the 1606-XLS120E?
-
Compact, High-Efficiency Power – Ideal for demanding industrial applications
-
Reliable Performance – Provides stable voltage under fluctuating loads
-
Enhanced Protection – Built-in safeguards for system and component safety
-
Global Certifications – Ready for international use and compliance
-
Long Service Life – Quality engineering and robust design
Order Now
Available and ready for global shipment.
