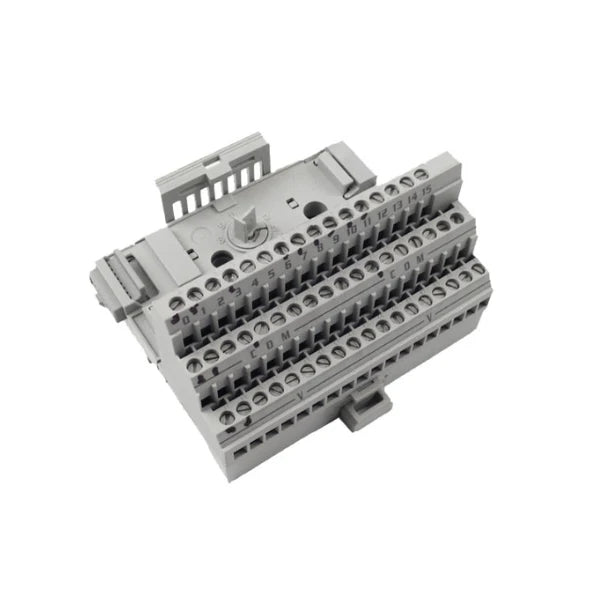

Allen-Bradley 1794-TB3 FLEX I/O terminal block with 16 terminals, screw clamp wiring, and DIN rail mount for modular industrial automation systems.

Allen-Bradley 1794-TB3

SKU: 1794-TB3
Your Price:
$80.00
Add to wishlist
Checkout Secure
Order in the next to get it by

10+ Available in Stock

  • Image of Free Shipping on All Orders

    Free Shipping on All Orders
  • Image of 1 Year Warranty

    We will beat any price

    1 Year Warranty
  • Image of Experts Aavaiable 7/24/365

    Free shipping

    Experts Aavaiable 7/24/365
  • Image of 30 days money-back

    30 days money-back

Allen-Bradley 1794-TB3 | Reliable Terminal Base for FLEX I/O Systems

Overview

The Allen-Bradley 1794-TB3 is a terminal base unit designed for the FLEX I/O system, providing a 3-wire cage clamp connection for 16 I/O points. Its compact design and DIN rail mounting make it suitable for various industrial applications requiring distributed I/O solutions.

Key Features

  • Termination Type: 3-wire cage clamp

  • I/O Capacity: 16 I/O terminals

  • Common Terminals: 18

  • +V Terminals: 18

  • Mounting: DIN rail

  • Enclosure: Open-style (IP20)

  • Operating Temperature: -20°C to 70°C (-4°F to 158°F)

  • Compatibility: Designed for use with FLEX I/O modules

  • Certifications: UL, cULus, CE, RoHS

Technical Specifications

  • Catalog Number: 1794-TB3

  • Current Capacity: 10 A max

  • Wire Size: 22–12 AWG (0.34–3.3 mm²) solid or stranded copper wire rated at 75°C or greater

  • Terminal Screw Torque: 0.56–0.79 Nm (5–7 lb-in)

  • Dimensions (HxWxD): 94 x 94 x 69 mm (3.7 x 3.7 x 2.7 in.)

  • Weight: Approximately 0.249 kg

Applications

  • Distributed control systems

  • Industrial automation

  • Machine control panels

  • Process control systems

Why Choose the 1794-TB3?

  • Flexible Wiring: Accommodates 3-wire connections for various I/O configurations

  • Compact Design: Saves space in control panels

  • Easy Installation: DIN rail mounting simplifies setup

  • Reliable Performance: Suitable for demanding industrial environments

Order Now

Available and ready to ship globally.

New & Genuine Products – Factory Sealed At PLCpartssolution, all our products are 100% new, genuine, and come in original factory-sealed packaging. We guarantee authentic components that meet the highest industry standards for performance and reliability.
1-Year Warranty Included All new products sold by PLCpartssolution come with a 1-year warranty. We stand behind the quality and reliability of our parts, ensuring coverage against manufacturing defects under normal operating conditions.
