Allen-Bradley 1732ES-IB12XOB4
Overview

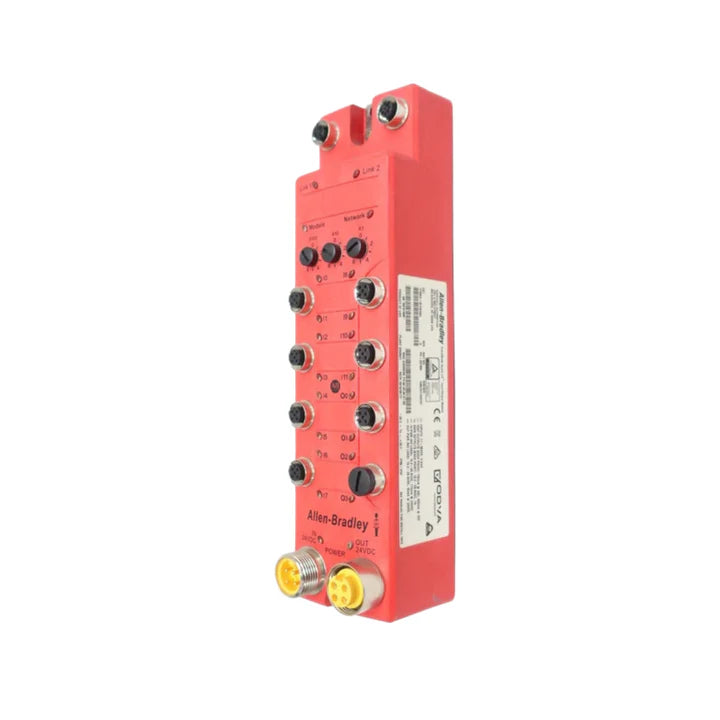

The Allen-Bradley 1732ES-IB12XOB4 is a safety-rated ArmorBlock® Guard I/O module with 12 inputs and 4 outputs, designed for on-machine, distributed safety control. Operating at 24V DC, this module supports EtherNet/IP with CIP Safety protocol, providing safe and deterministic communication in harsh industrial environments.
With its IP67-rated sealed housing, M12 connectors, and support for Device Level Ring (DLR) topology, it ensures reliable performance in applications where safety, durability, and space-saving field installation are key.
Key Features
-
Inputs: 12 safety-rated digital inputs
-
Outputs: 4 safety-rated digital outputs
-
Protocol: EtherNet/IP with CIP Safety
-
Power Supply: 24V DC
-
Connector Type: M12
-
Protection Class: IP67 for washdown and outdoor use
-
Mounting: Machine-mounted ArmorBlock form factor
-
Safety Standards: SIL 3, PLe (ISO 13849-1), CAT 4
-
Network Topology: Supports Device Level Ring (DLR)
Technical Specifications
-
Catalog Number: 1732ES-IB12XOB4
-
Input Type: Safety digital input, sourcing
-
Output Type: Safety digital output, sourcing
-
Output Current: 2A max per point
-
Operating Voltage: 24V DC (nominal)
-
Isolation: Inputs/outputs isolated from network
-
Operating Temperature: -20°C to +60°C
-
Certifications: CE, cULus, TUV, ATEX Zone 2, IECEx
-
Housing: Rugged sealed body with vibration resistance
Applications
-
Machine safety systems
-
Safety-rated I/O in field installations
-
Robotics and automated work cells
-
Automotive and material handling
-
Food and beverage washdown areas
Why Choose the 1732ES-IB12XOB4
-
Integrated Safety: CIP Safety over EtherNet/IP for advanced protection
-
Field-Ready: Rugged IP67 housing for harsh environments
-
Efficient Wiring: M12 connectors reduce panel wiring
-
Reliable Communication: DLR minimizes network downtime
-
Flexible Mounting: Ideal for space-constrained installations
Order Now
The Allen-Bradley 1732ES-IB12XOB4 Guard I/O module is available and ships worldwide.
