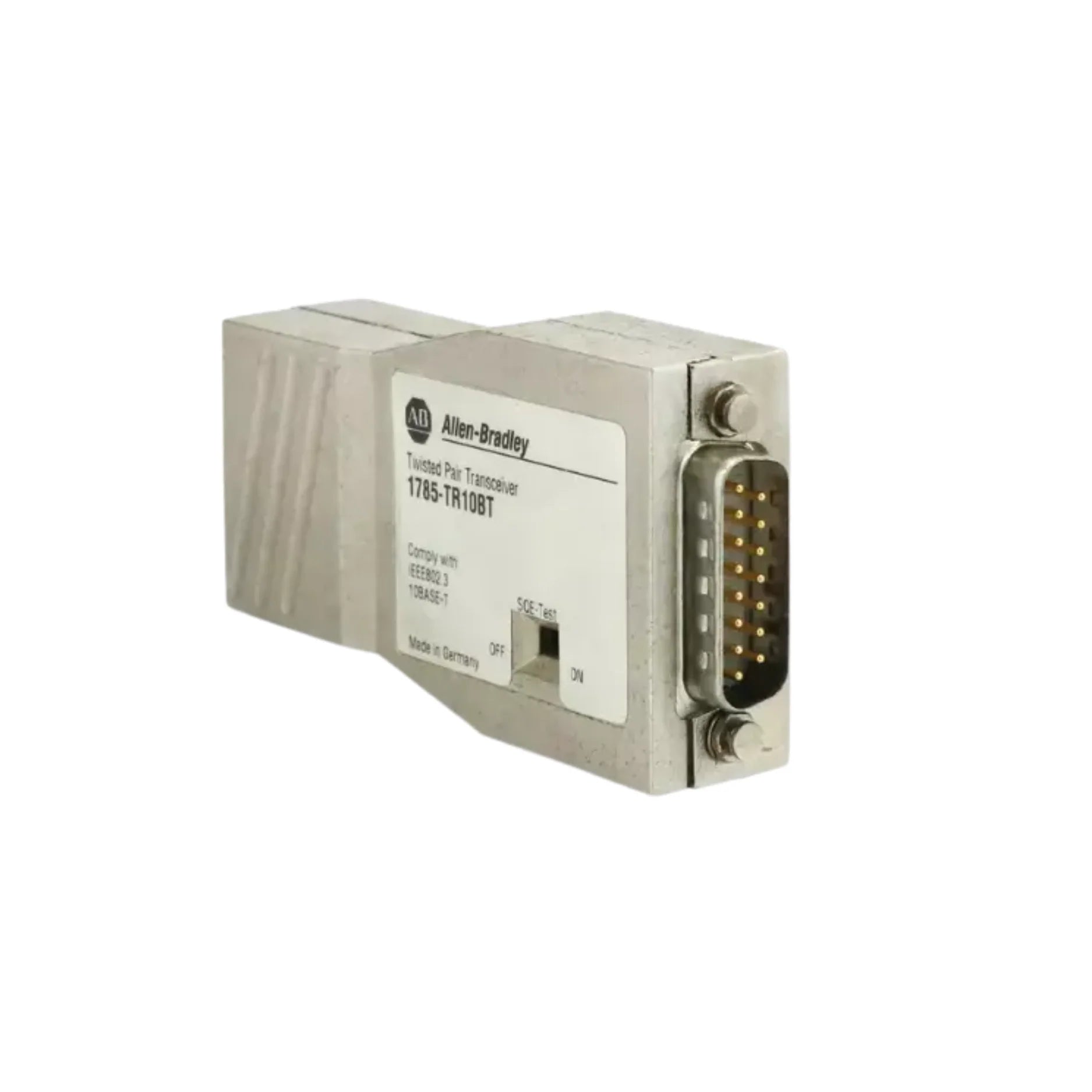

Allen-Bradley 1785-TR10BT
Overview
The Allen-Bradley 1785-TR10BT is a 10Base-T Ethernet transceiver designed to enable twisted-pair Ethernet connectivity for PLC-5 systems. It is typically used in conjunction with the 1785-ENET Ethernet communication module, providing a reliable RJ45 interface for data exchange over standard Ethernet networks. Compact and durable, this transceiver supports easy integration of legacy Allen-Bradley systems into modern industrial Ethernet architectures.
Key Features
-
Interface Type: 10Base-T (IEEE 802.3)
-
Connector: RJ45 (twisted-pair)
-
Compatible Module: 1785-ENET Ethernet Interface
-
Function: Provides Ethernet connectivity for PLC-5 via AUI port
-
Indicator LEDs: Network activity and status
-
Mounting: Inline, compact design for panel or cable installation
-
Durability: Designed for use in industrial automation environments
-
Ease of Use: Plug-and-play compatible with existing AUI-based modules
Technical Specifications
-
Catalog Number: 1785-TR10BT
-
Network Speed: 10 Mbps (10Base-T)
-
Connector Type: RJ45, AUI to twisted-pair
-
Standard: IEEE 802.3 compliant
-
Compatibility: Works with 1785-ENET and other AUI-based devices
-
Operating Voltage: Supplied via AUI interface
-
Environmental Rating: Industrial-duty components
-
Certifications: UL, CE, CSA
-
Installation: Inline connection from AUI port to RJ45 network
Applications
-
Adding Ethernet capability to PLC-5 controllers
-
Converting AUI ports to RJ45 twisted-pair Ethernet
-
Integration of legacy systems into Ethernet/IP networks
-
Factory floor automation networks
-
Remote monitoring and SCADA connectivity
Why Choose the 1785-TR10BT
-
Cost-Effective Modernization: Enables Ethernet use without replacing legacy systems
-
Simple Installation: Direct AUI to RJ45 conversion
-
Compact Design: Easy to deploy in tight control panel layouts
-
Industrial Performance: Built for 24/7 automation use
-
Rock-Solid Reliability: Compatible with Allen-Bradley’s proven hardware
Order Now
The Allen-Bradley 1785-TR10BT Ethernet transceiver is available and ships worldwide.
