Kinetix 5700 dual-axis servo drive, 86A, EtherNet/IP, with safety features.

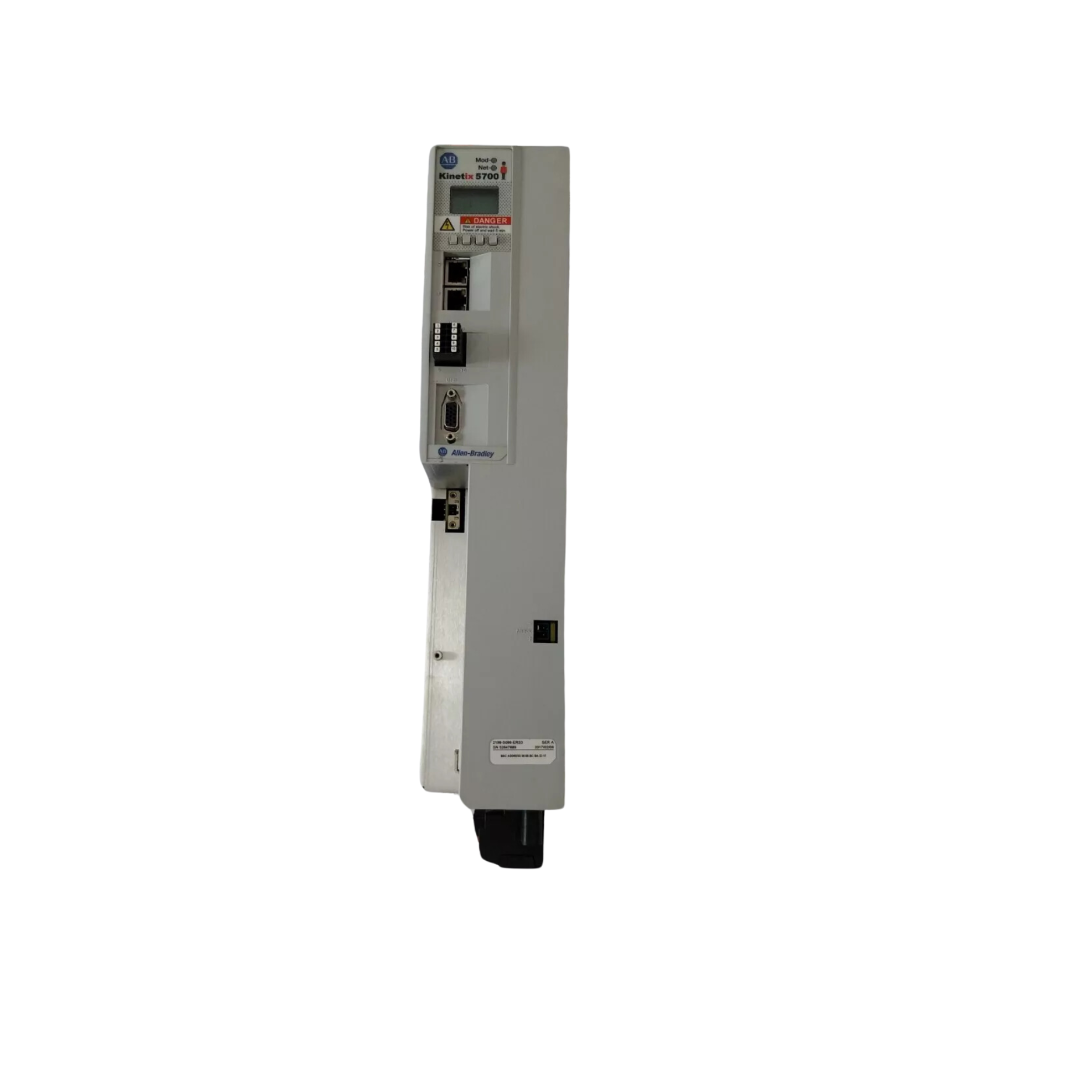

Allen-Bradley 2198-S086-ERS3

SKU: 2198-S086-ERS3
Your Price:
$4,510.00
Add to wishlist
Checkout Secure
Order in the next to get it by

10+ Available in Stock

  • Image of Free Shipping on All Orders

    Free Shipping on All Orders
  • Image of 1 Year Warranty

    We will beat any price

    1 Year Warranty
  • Image of Experts Aavaiable 7/24/365

    Free shipping

    Experts Aavaiable 7/24/365
  • Image of 30 days money-back

    30 days money-back

Allen-Bradley 2198-S086-ERS3

Overview

The Allen-Bradley 2198-S086-ERS3 is a Kinetix 5700 series dual-axis servo drive designed for high-power, high-performance motion control applications. Featuring 86A continuous output current per axis, EtherNet/IP connectivity, and integrated advanced safety features, this drive delivers optimal control in large and complex automation systems. Ideal for OEMs and end-users demanding high throughput and flexible configuration.

Key Features

  • Series: Kinetix 5700

  • Axes: Dual-axis

  • Output Current: 86A continuous per axis

  • Input Voltage: 400–480V AC, 3-phase

  • Integrated Dual-Port EtherNet/IP

  • Safety: Integrated Safe Torque-Off and Safe Stop 1

  • Compatible with Studio 5000 Logix Designer

  • Designed for high-performance multi-axis systems

Technical Specifications

  • Catalog Number: 2198-S086-ERS3

  • Continuous Output Current: 86 A per axis

  • Peak Output Current: Up to 172 A (short duration)

  • Input Voltage Range: 342–528V AC, 3-phase

  • Frequency: 47–63 Hz

  • Communication Interface: EtherNet/IP

  • Dimensions (H x W x D): Approx. 380 mm x 120 mm x 260 mm

  • Cooling: Internal fan

  • Mounting: Panel mount

  • Certifications: cULus, CE, TUV, KCC

Applications

  • High-speed packaging machinery

  • Multi-axis assembly lines

  • Robotics and pick-and-place systems

  • Printing and converting systems

  • Large conveyors and gantry systems

Why Choose the 2198-S086-ERS3?

  • High-current capacity for demanding motion control

  • Integrated safety reduces wiring and downtime

  • Real-time EtherNet/IP communication

  • Seamless integration with Logix-based systems

  • Energy-efficient and compact form factor

Order Now

The Allen-Bradley 2198-S086-ERS3 servo drive is in stock and ready to support your most demanding automation applications.

New & Genuine Products – Factory Sealed At PLCpartssolution, all our products are 100% new, genuine, and come in original factory-sealed packaging. We guarantee authentic components that meet the highest industry standards for performance and reliability.
1-Year Warranty Included All new products sold by PLCpartssolution come with a 1-year warranty. We stand behind the quality and reliability of our parts, ensuring coverage against manufacturing defects under normal operating conditions.
Disclaimer: PLCpartssolution is an independent supplier of surplus and refurbished industrial automation products. We are not an authorized distributor, reseller, or representative of the brands listed on this website. All trademarks, brand names, and logos are the property of their respective owners. PLCpartssolution is not affiliated with, endorsed by, or approved by ABB, Fanuc, B&R, Rockwell Automation, Schneider Electric, Siemens, or any other manufacturers mentioned.
