Allen-Bradley 440E-D13112
Overview

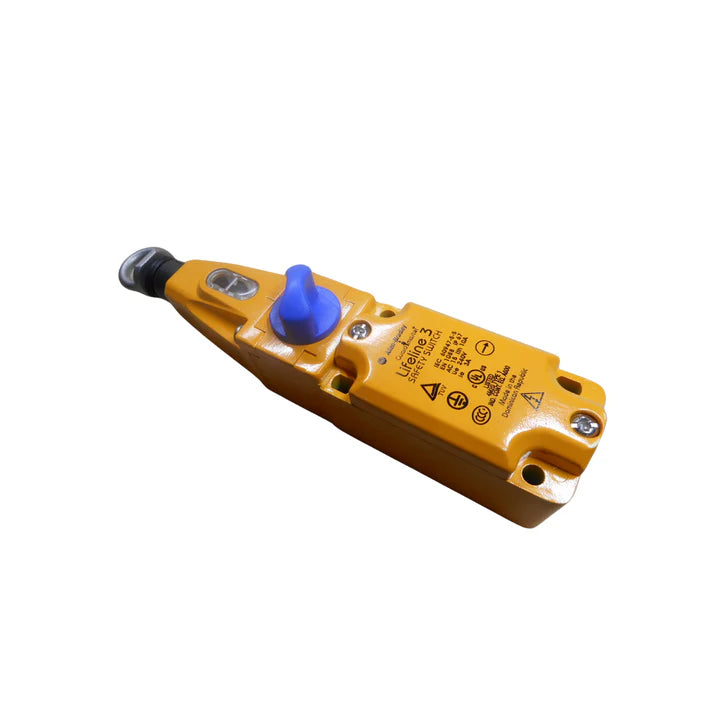

The Allen-Bradley 440E-D13112 is a Lifeline 3 cable pull switch designed for emergency stop applications along conveyors and other machinery. It features a 3NC/1NO contact configuration, M20 conduit entry, and a die-cast zinc housing with an IP67 rating, ensuring durability in harsh environments. The switch supports cable spans up to 30 meters, providing a reliable safety solution for long equipment runs.
Key Features
-
Contact Configuration: 3 Normally Closed (NC), 1 Normally Open (NO)
-
Conduit Entry: M20
-
Housing Material: Die-cast zinc alloy
-
Ingress Protection: IP67
-
Maximum Cable Span: 30 meters
-
Mounting: Universal mounting with industry-standard fixing centers (DIN/EN 50041)
-
Cable Status Indicator: Provides visual indication of cable tension status
-
Reset Mechanism: Manual reset via blue reset knob
-
Operation: Switch lockout on cable pull and cable slack conditions
Technical Specifications
-
Catalog Number: 440E-D13112
-
Rated Insulation Voltage (Ui): 500 V
-
Thermal Current (Ith): 10 A
-
Rated Operational Current (Ie):
-
AC-15: 6 A @ 120 V, 3 A @ 240 V, 1.2 A @ 600 V
-
DC-13: 2 A @ 24 V, 0.4 A @ 600 V
-
-
Operating Temperature Range: -25°C to +80°C
-
Dimensions (H x W x D): 204 mm x 40 mm x 56 mm
-
Weight: 0.61 kg
-
Mechanical Life: >1,000,000 operations
-
Standards Compliance: EN 418, ISO 13850, IEC 60947-5-1, IEC 60947-5-5
-
Certifications: CE, cULus, TUV
Applications
-
Conveyor systems
-
Packaging machinery
-
Material handling equipment
-
Automated production lines
-
Long-span emergency stop zones
Why Choose the 440E-D13112
-
Enhanced Safety: Provides emergency stop capability along the entire length of the cable span.
-
Durable Construction: Die-cast housing and IP67 rating ensure reliable operation in demanding environments.
-
Easy Installation: Universal mounting and M20 conduit entry simplify setup.
-
Visual Status Indication: Cable status indicator aids in maintenance and troubleshooting.
Order Now
The Allen-Bradley 440E-D13112 Lifeline 3 cable pull switch is available and ships worldwide.
