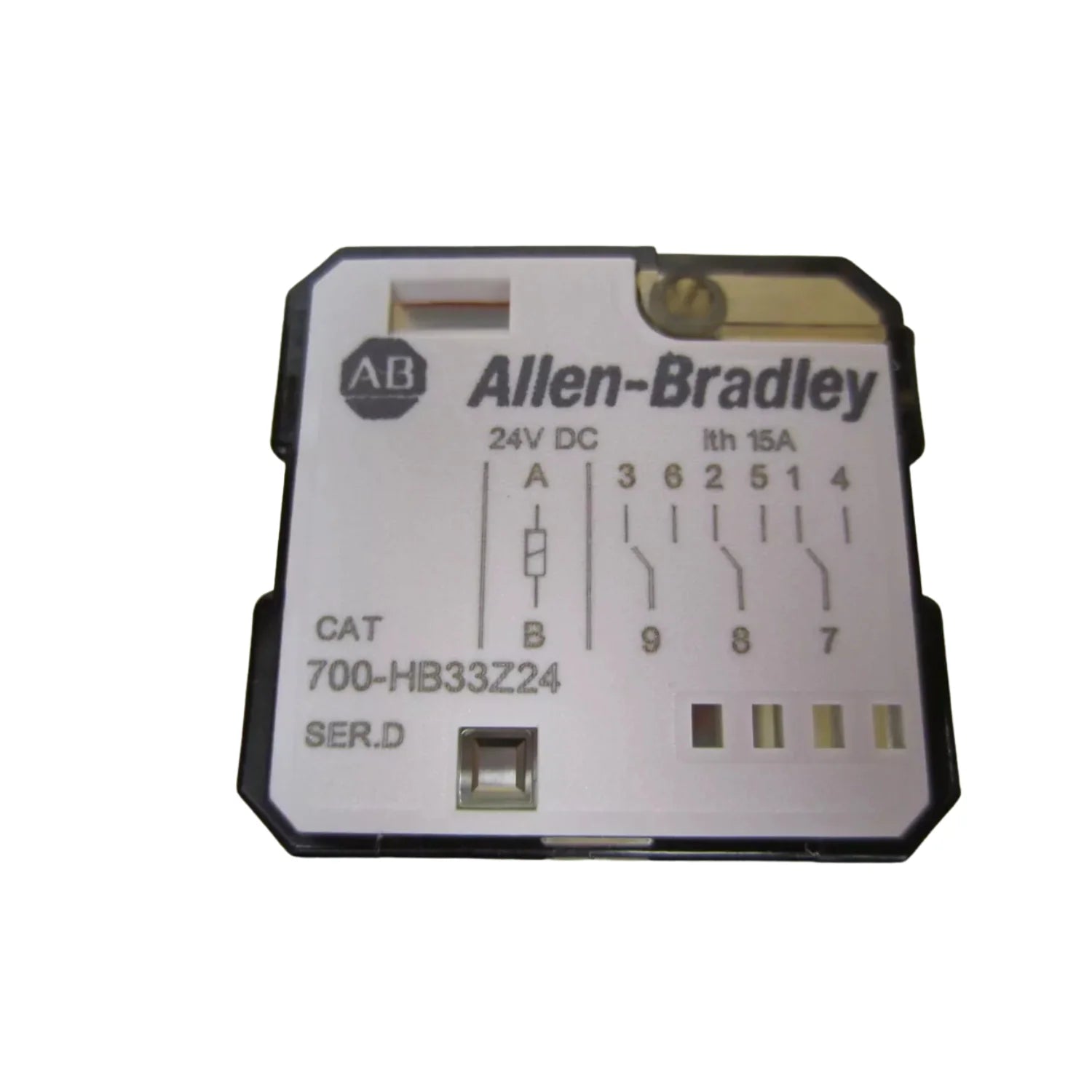

Allen-Bradley 700-HB33Z24 3PDT 24V DC miniature relay with 10A contacts and blade pins for DIN rail socket mounting

Allen-Bradley 700-HB33Z24

SKU: 700-HB33Z24
Your Price:
$54.00
Add to wishlist
Checkout Secure
Order in the next to get it by

10+ Available in Stock

  • Image of Free Shipping on All Orders

    Free Shipping on All Orders
  • Image of 1 Year Warranty

    We will beat any price

    1 Year Warranty
  • Image of Experts Aavaiable 7/24/365

    Free shipping

    Experts Aavaiable 7/24/365
  • Image of 30 days money-back

    30 days money-back

Allen-Bradley 700-HB33Z24

Overview

The Allen-Bradley 700-HB33Z24 is a 3-pole double-throw (3PDT) miniature relay with a 24V DC coil and 10A contact rating. This compact, general-purpose relay is designed for reliable switching in control systems, automation panels, and machine applications. It features blade-style terminals and is compatible with DIN rail mount sockets, making installation quick and efficient.

Key Features

  • Contact Configuration: 3PDT (3 Form C)

  • Coil Voltage: 24V DC

  • Contact Rating: 10 A at 250V AC / 30V DC

  • Mounting Type: DIN rail via socket (e.g., 700-HN series)

  • Terminal Style: Blade pins

  • Indicator: Built-in LED status indicator (varies by socket)

  • Manual Operator: Yes

  • Dielectric Strength: 2500V AC, 50/60 Hz for 1 minute

  • Insulation Resistance: ≥ 100 MΩ at 500V DC

Technical Specifications

  • Catalog Number: 700-HB33Z24

  • Relay Type: General-purpose electromechanical

  • Electrical Life: 100,000 operations (resistive load)

  • Mechanical Life: 10,000,000 operations

  • Ambient Temperature: -40°C to +55°C

  • Contact Material: Silver alloy

  • Housing Material: Flame-retardant plastic

  • Approvals: UL, CSA, CE

Applications

  • Industrial automation systems

  • Motor control circuits

  • PLC interfacing

  • Panel control systems

  • HVAC and building management

Why Choose the 700-HB33Z24

  • Compact Footprint: Saves space in panel layouts

  • Flexible Integration: Works with various DIN rail sockets

  • Reliable Performance: Suitable for both AC and DC switching

  • Easy Troubleshooting: Optional LED status indication

  • High Durability: Extended mechanical and electrical life

Order Now

The Allen-Bradley 700-HB33Z24 miniature relay is in stock and ships worldwide.

New & Genuine Products – Factory Sealed At PLCpartssolution, all our products are 100% new, genuine, and come in original factory-sealed packaging. We guarantee authentic components that meet the highest industry standards for performance and reliability.
1-Year Warranty Included All new products sold by PLCpartssolution come with a 1-year warranty. We stand behind the quality and reliability of our parts, ensuring coverage against manufacturing defects under normal operating conditions.
Disclaimer: PLCpartssolution is an independent supplier of surplus and refurbished industrial automation products. We are not an authorized distributor, reseller, or representative of the brands listed on this website. All trademarks, brand names, and logos are the property of their respective owners. PLCpartssolution is not affiliated with, endorsed by, or approved by ABB, Fanuc, B&R, Rockwell Automation, Schneider Electric, Siemens, or any other manufacturers mentioned.
