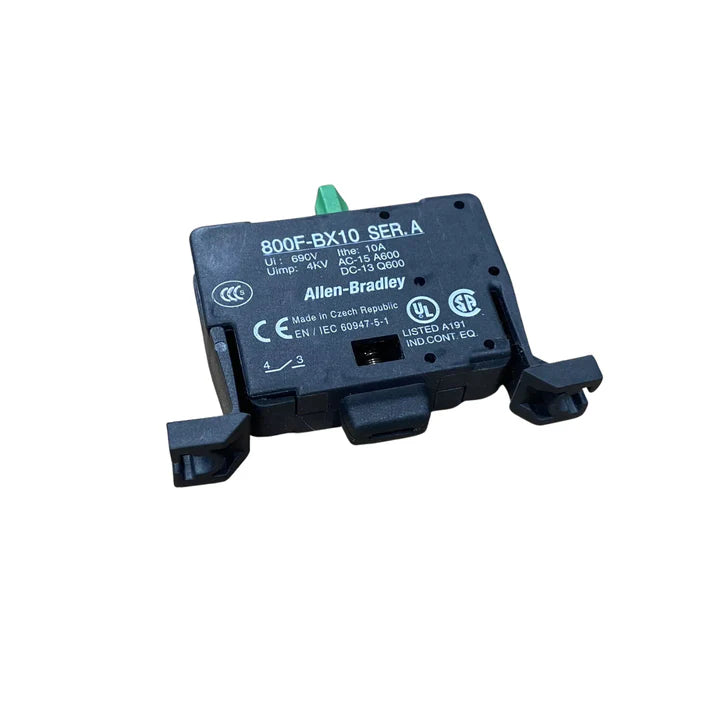

Allen-Bradley 800F-BX10 22.5mm contact block, 1NO, screw terminals, base mount, 600V AC/DC

Allen-Bradley 800F-BX10

SKU: 800F-BX10
Your Price:
$46.00
Add to wishlist
Checkout Secure
Order in the next to get it by

10+ Available in Stock

  • Image of Free Shipping on All Orders

    Free Shipping on All Orders
  • Image of 1 Year Warranty

    We will beat any price

    1 Year Warranty
  • Image of Experts Aavaiable 7/24/365

    Free shipping

    Experts Aavaiable 7/24/365
  • Image of 30 days money-back

    30 days money-back

Allen-Bradley 800F-BX10

Overview

The Allen-Bradley 800F-BX10 is a 22.5mm contact block designed for industrial control applications. Featuring a 1 Normally Open (1NO) contact configuration, screw terminals, and base mounting, this contact block ensures reliable performance in demanding environments. With a maximum operational voltage of 600V AC/DC and a thermal current rating of 10A, it is suitable for a wide range of control circuits.

Key Features

  • Contact Configuration: 1 Normally Open (1NO)

  • Mounting Style: Base mount

  • Termination Style: Screw terminals

  • Operational Voltage: Up to 600V AC/DC

  • Thermal Current Rating: 10A

  • Durability: Mechanical life of 10 million operations

  • Certifications: UL Recognized, CSA Certified, CE Marked, CCC

Technical Specifications

  • Catalog Number: 800F-BX10

  • Contact Block Type: Standard

  • Utilization Category (AC): A600, AC-15

  • Utilization Category (DC): Q600, DC-13

  • Wire Range: #18–12 AWG (0.75–2.5 mm²)

  • Tightening Torque: 6–8 in-lb (0.7–0.9 N·m)

  • Operating Temperature: -25°C to +70°C

  • Storage Temperature: -40°C to +85°C

  • Humidity: ≤95% RH from 25°C to 60°C

  • Ingress Protection: IP20

  • Dimensions (H x W x D): 12.5 mm x 20.0 mm x 0.2 mm

  • Weight: 12 g

Applications

  • Industrial control panels

  • Machinery and equipment control

  • Automation systems

  • OEM applications

Why Choose the 800F-BX10

  • Reliable Performance: Designed for high durability with a mechanical life of 10 million operations.

  • Versatile Use: Suitable for both AC and DC circuits up to 600V.

  • Ease of Installation: Screw terminals and base mounting simplify assembly.

  • Compliance: Meets international standards, including UL, CSA, CE, and CCC certifications.

Order Now

The Allen-Bradley 800F-BX10 contact block is available and ready to ship worldwide.

New & Genuine Products – Factory Sealed At PLCpartssolution, all our products are 100% new, genuine, and come in original factory-sealed packaging. We guarantee authentic components that meet the highest industry standards for performance and reliability.
1-Year Warranty Included All new products sold by PLCpartssolution come with a 1-year warranty. We stand behind the quality and reliability of our parts, ensuring coverage against manufacturing defects under normal operating conditions.
Disclaimer: PLCpartssolution is an independent supplier of surplus and refurbished industrial automation products. We are not an authorized distributor, reseller, or representative of the brands listed on this website. All trademarks, brand names, and logos are the property of their respective owners. PLCpartssolution is not affiliated with, endorsed by, or approved by ABB, Fanuc, B&R, Rockwell Automation, Schneider Electric, Siemens, or any other manufacturers mentioned.
