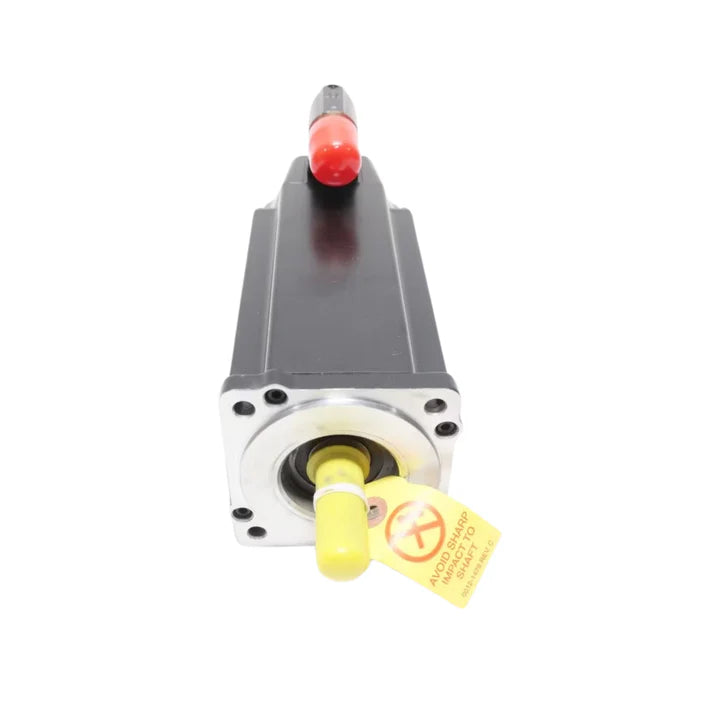

Allen-Bradley VPL-B1003F-PJ14AA 100mm servo motor, 460V, 1.1 Nm, keyed shaft, 5000 RPM, single-turn encoder

Allen-Bradley VPL-B1003F-PJ14A

SKU: VPL-B1003F-PJ14A
Your Price:
$4,100.00
Add to wishlist
Checkout Secure
Order in the next to get it by

10+ Available in Stock

  • Image of Free Shipping on All Orders

    Free Shipping on All Orders
  • Image of 1 Year Warranty

    We will beat any price

    1 Year Warranty
  • Image of Experts Aavaiable 7/24/365

    Free shipping

    Experts Aavaiable 7/24/365
  • Image of 30 days money-back

    30 days money-back

Allen-Bradley VPL-B1003F-PJ14AA

Overview

The Allen-Bradley VPL-B1003F-PJ14AA is a compact and high-speed servo motor from the Kinetix VPL-Series, offering 1.1 Nm continuous stall torque and a maximum speed of 5000 RPM. Designed for 460V AC operation, it features a 100mm frame, keyed shaft, and single-turn encoder feedback, making it ideal for high-performance motion control in compact industrial machinery.

Key Features

  • Frame Size: 100 mm

  • Rated Voltage: 460V AC

  • Continuous Stall Torque: 1.1 Nm

  • Maximum Speed: 5000 RPM

  • Shaft Type: Keyed with shaft seal

  • Feedback Device: Single-turn 14-bit encoder

  • Brake Option: No brake

  • Connector Orientation: Rotatable

  • Mounting: Flange mount

  • Insulation Class: F

  • Enclosure Protection: IP66 with shaft seal and proper mating connectors

Technical Specifications

  • Catalog Number: VPL-B1003F-PJ14AA

  • Peak Torque: ~3.3 Nm (typical)

  • Rotor Inertia: Approx. 0.00021 kg·m²

  • Feedback Resolution: 14-bit single-turn encoder

  • Ambient Operating Temp: 0°C to +40°C

  • Storage Temp: -30°C to +85°C

  • Vibration Rating: 2G (10–2000 Hz)

  • Certifications: UL, cUL, CE, RoHS

  • Cooling Method: Natural convection

Applications

  • Pick-and-place systems

  • Small-scale robotics

  • Packaging equipment

  • Electronic assembly machinery

  • Automated inspection systems

Why Choose the VPL-B1003F-PJ14AA

  • Compact Power: High-speed servo performance in a small footprint

  • Reliable Feedback: Accurate positioning with single-turn encoder

  • Efficient Design: Optimized for machine builders and OEMs

  • Versatile Use: Ideal for light-to-medium duty industrial motion control

  • Global Standards: Meets UL, CE, and RoHS requirements

Order Now

The Allen-Bradley VPL-B1003F-PJ14AA servo motor is available and ships worldwide.

New & Genuine Products – Factory Sealed At PLCpartssolution, all our products are 100% new, genuine, and come in original factory-sealed packaging. We guarantee authentic components that meet the highest industry standards for performance and reliability.
1-Year Warranty Included All new products sold by PLCpartssolution come with a 1-year warranty. We stand behind the quality and reliability of our parts, ensuring coverage against manufacturing defects under normal operating conditions.
Disclaimer: PLCpartssolution is an independent supplier of surplus and refurbished industrial automation products. We are not an authorized distributor, reseller, or representative of the brands listed on this website. All trademarks, brand names, and logos are the property of their respective owners. PLCpartssolution is not affiliated with, endorsed by, or approved by ABB, Fanuc, B&R, Rockwell Automation, Schneider Electric, Siemens, or any other manufacturers mentioned.
