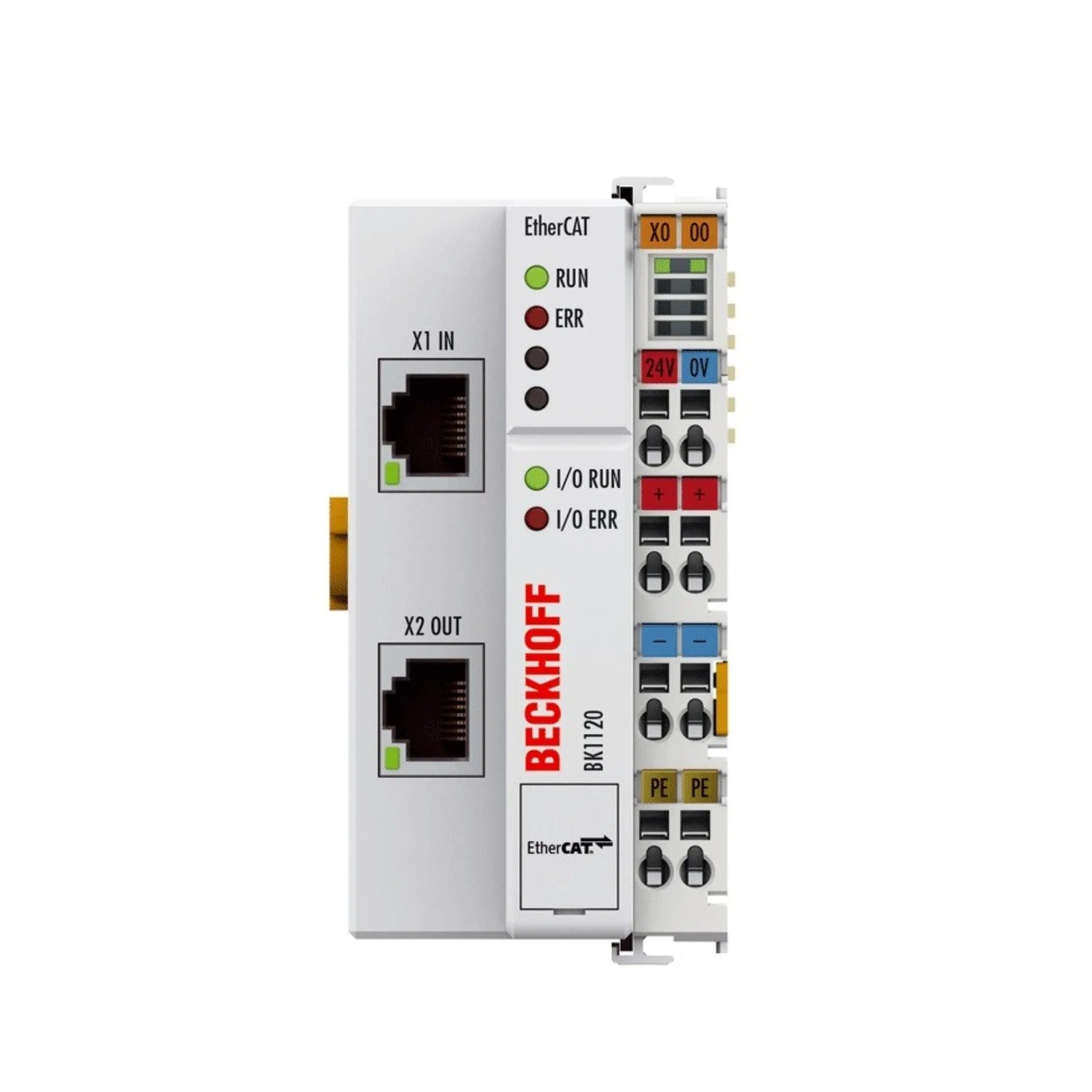

Beckhoff BK1120

SKU: BK1120

Your Price:

$510.00

Order in the next to get it by

10+ Available in Stock

Free Shipping on All Orders
We will beat any price
1 Year Warranty
Free shipping
Experts Aavaiable 7/24/365
30 days money-back

Beckhoff BK1120 – Overview

The Beckhoff BK1120 is an EtherCAT bus coupler designed to connect the EtherCAT protocol (100BASE-TX) to standard Beckhoff K-Bus terminals. It provides two RJ45 ports for line or star topology connection and supports up to 64 terminals (or up to 255 with K-Bus extension).

Compact and efficient, the BK1120 operates on 24 V DC, forwarding both system and field power through integrated power contacts. It offers high data rates and easy DIN-rail installation for industrial automation environments.

Key Features

EtherCAT bus coupler for K-Bus terminals
2 × RJ45 ports for flexible network configuration
Supports up to 64 terminals (255 with extension)
100 Mbps EtherCAT communication speed
24 V DC system and field power
Up to 10 A field current via power contacts
Compact DIN-rail mountable housing
500 V electrical isolation between supply and Ethernet

Technical Specifications

Part Numbers:
– BK1120
– BK 1120
Protocol: EtherCAT (100BASE-TX)
Network Interface: 2 × RJ45 ports
Maximum Number of Terminals: 64 (255 with K-Bus extension)
Fieldbus Data Capacity: 1024 bytes input / 1024 bytes output
Power Supply: 24 V DC (–15% / +20%)
Power Contacts: Max. 24 V DC / 10 A
Current Consumption (E-Bus): 70 mA + sum of K-Bus current / 4
K-Bus Current Supply: Max. 1750 mA
Operating Temperature: –25 °C to +60 °C
Storage Temperature: –40 °C to +85 °C
Isolation Voltage: 500 V (Ethernet / Power)
Enclosure Type: IP20
Mounting: DIN-rail
Manufacturer: Beckhoff Automation
Weight: 0.10 – 0.23 kg (0.22 – 0.50 lb)
Packed dimensions: 12 × 7 × 6 cm (4.7 × 2.8 × 2.4 in)

Applications

Integration of standard K-Bus terminals into EtherCAT systems
Distributed control systems and modular I/O architectures
Compact industrial control panels
Factory automation and process control applications

Why Choose Beckhoff BK1120

Reliable EtherCAT to K-Bus integration
Compact and easy to mount on DIN rail
Flexible configuration for high I/O counts
Efficient 24 V DC design for industrial control environments

Order Now

The Beckhoff BK1120 EtherCAT Bus Coupler is available for order and ships worldwide.
