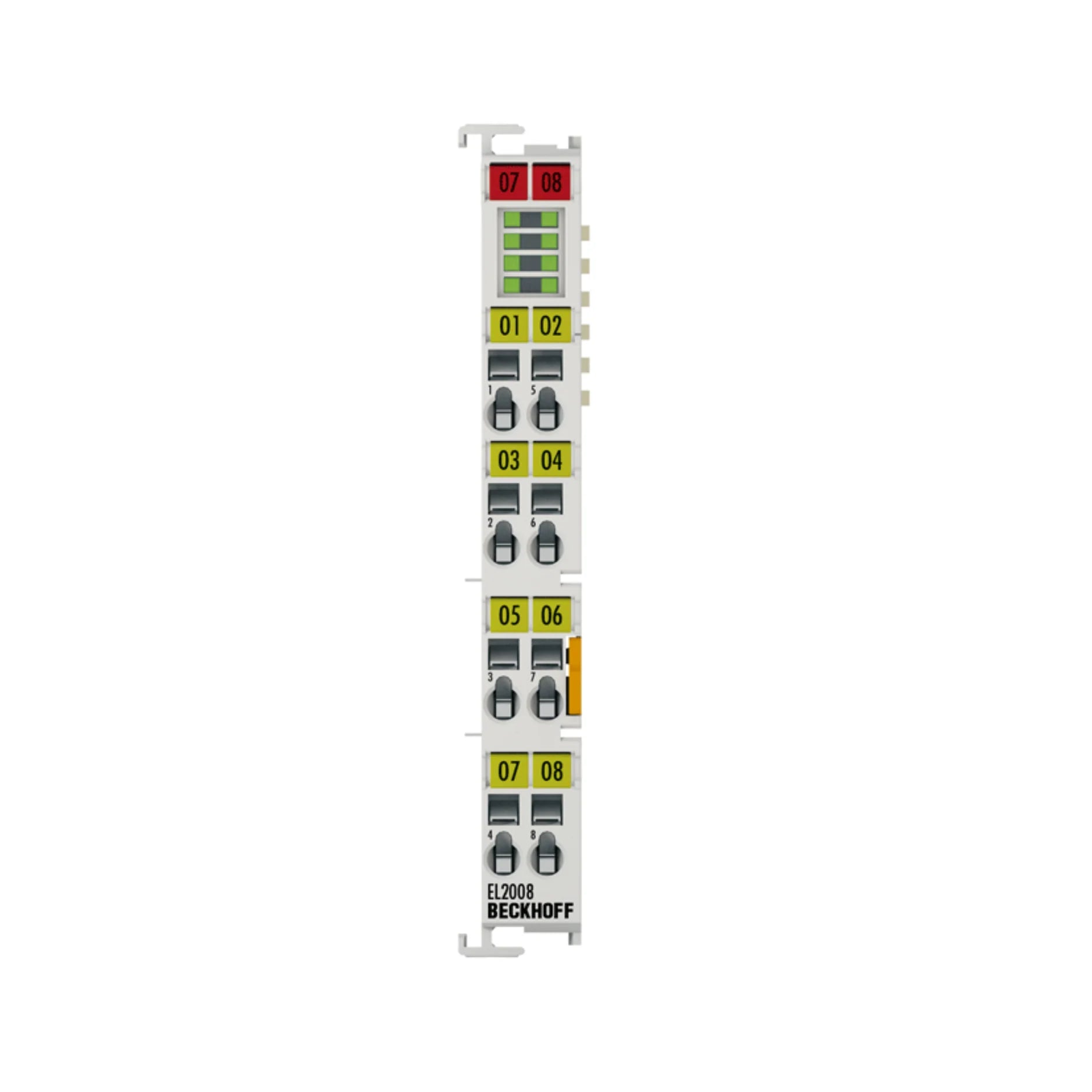

Beckhoff EL2008

SKU: EL2008

Your Price:

$120.00

Order in the next to get it by

10+ Available in Stock

Free Shipping on All Orders
We will beat any price
1 Year Warranty
Free shipping
Experts Aavaiable 7/24/365
30 days money-back

Beckhoff EL2008 – Overview

The Beckhoff EL2008 is an 8-channel digital output terminal for 24 V DC operation, designed for EtherCAT-based automation systems. Each channel supports up to 0.5 A continuous current and features short-circuit and reverse-polarity protection. The terminal transmits binary control signals from the controller to the actuators, ensuring reliable operation in industrial environments.

Compact and durable, the EL2008 enables efficient distribution of digital outputs within distributed I/O architectures and mounts directly on a 35 mm DIN rail.

Key Features

Eight digital output channels (24 V DC)
Maximum 0.5 A per channel
Short-circuit and reverse-polarity protection
Supports resistive, inductive, and lamp loads
Electrical isolation: 500 V between E-bus and field potential
Fast switching times (TON ≈ 60 µs, TOFF ≈ 300 µs)
Compact 12 mm width, DIN-rail mountable
LED indicators for each channel for easy status monitoring

Technical Specifications

Part Numbers:
– EL2008
– EL 2008
Number of Outputs: 8
Nominal Voltage: 24 V DC (–15% / +20%)
Maximum Output Current: 0.5 A per channel
Short-Circuit Current: < 2 A typical
Switching Times: TON ≈ 60 µs, TOFF ≈ 300 µs
Electrical Isolation: 500 V (E-bus / field potential)
Current Consumption (E-bus): Approx. 110 mA
Current Consumption (Power Contacts): Typical 60 mA + load
Operating Temperature: –25 °C to +60 °C
Storage Temperature: –40 °C to +85 °C
Protection Rating: IP20
Mounting: DIN-rail (35 mm)
Manufacturer: Beckhoff Automation
Weight: 0.10 – 0.23 kg (0.22 – 0.50 lb)
Packed dimensions: 12 × 7 × 6 cm (4.7 × 2.8 × 2.4 in)

Applications

Digital control of actuators in automation systems
Distributed EtherCAT I/O in control cabinets
Compact machine and process control setups
Industrial environments requiring robust digital outputs

Why Choose Beckhoff EL2008

Eight reliable outputs in a slim, compact housing
Integrated protection against short-circuit and polarity reversal
High-speed output switching for responsive control
Space-saving design ideal for modular automation systems

Order Now

The Beckhoff EL2008 8-Channel Digital Output Terminal is available for order and ships worldwide.
