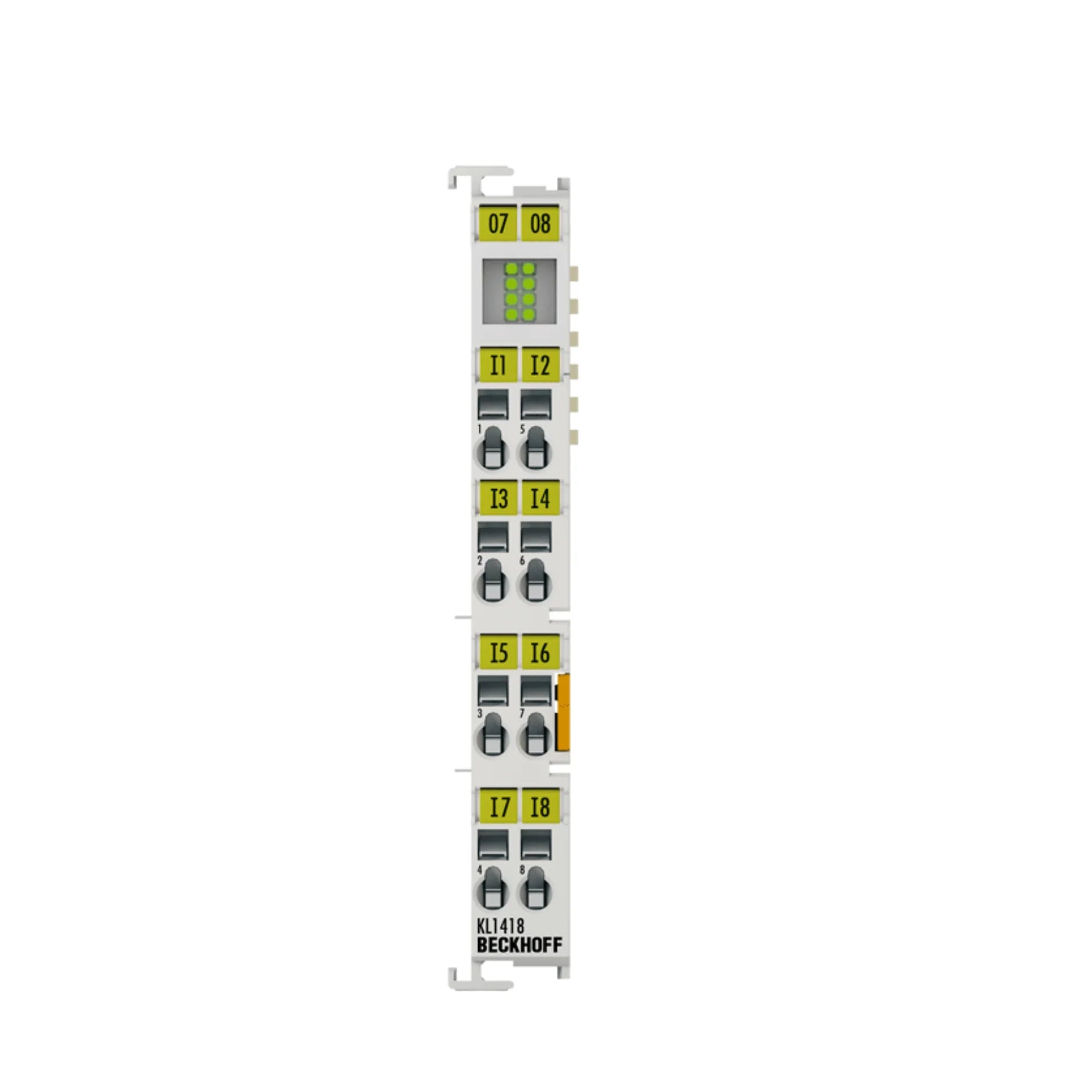

Beckhoff KL1418 – Overview

The Beckhoff KL1418 is an 8-channel digital input terminal designed for 24 V DC signal acquisition in automation systems. It features a typical input filter time of 0.2 ms, enabling very fast signal detection, and provides electrical isolation up to 500 V between the K-Bus and field potential.
The module fits modular control cabinets offering compact, high-density signal acquisition.

Key Features

Eight independent digital input channels at 24 V DC
Ultra-fast input filter: ~0.2 ms for rapid signal switching
Input specification Type 1/3 according to IEC 61131-2
Approximate input current: 3 mA typical
Connection technology: 1-wire for simplified wiring
LEDs for each input channel indicate signal status
Compact width (~12 mm), suitable for dense control panel mounting
Electrical isolation: 500 V between K-Bus and field wiring

Technical Specifications

Part Numbers:
– KL1418
– KL 1418
Number of Inputs: 8 channels
Nominal Voltage: 24 V DC (-15% / +20%)
Signal “0” Voltage: –3 V … +5 V
Signal “1” Voltage: 11 V … 30 V
Input Filter (typical): 0.2 ms
Typical Input Current: 3 mA per channel
Current Consumption (K-Bus): ~5 mA
Electrical Isolation: 500 V (K-Bus / field)
Bit Width in Process Image: 8 input bits
Housing Width: ~12 mm
Weight: Approx. 55 g
Operating Temperature: –25 °C … +60 °C
Storage Temperature: –40 °C … +85 °C
Protection Rating: IP20
Mounting: 35 mm DIN-rail
Manufacturer: Beckhoff Automation

Applications

High-speed digital input acquisition in automation systems
Signal interface for sensors in compact control panels
Distributed I/O systems requiring fast response and isolation
Machine control where signal detection speed is critical

Why Choose Beckhoff KL1418

High-density 8-channel input in a slim module saves panel space
Ultra-fast filtering (~0.2 ms) ideal for critical signal detection
Strong electrical isolation for industrial environment reliability
Easy wiring with 1-wire connection and standard DIN-rail mounting

Order Now

The Beckhoff KL1418 8-Channel Digital Input Terminal is available for order and ships worldwide.
