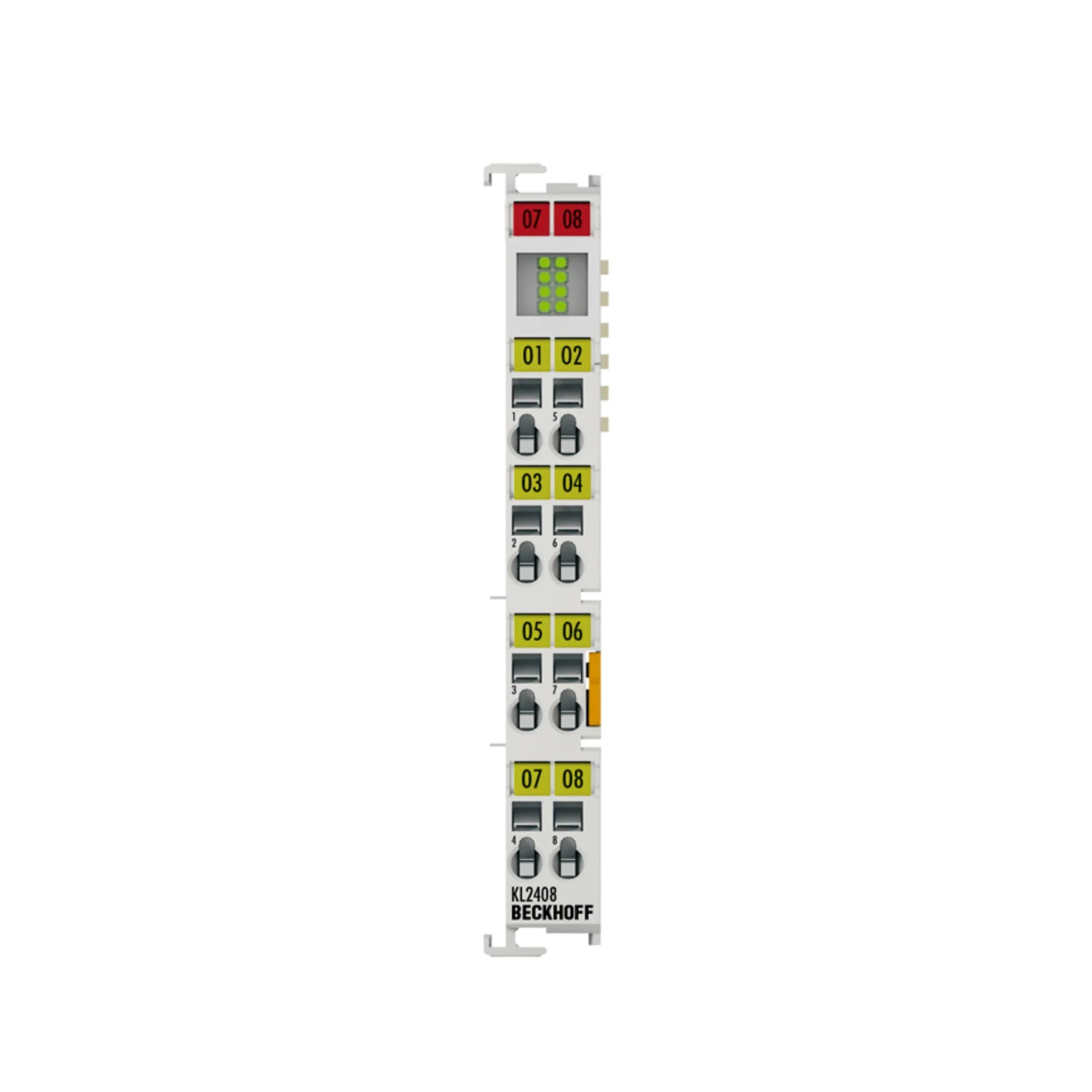

Beckhoff KL2408 – Overview

The Beckhoff KL2408 is an 8-channel digital output bus terminal that connects binary control signals from an automation device to actuators in the field. Each channel provides 0.5 A continuous output current at 24 V DC, with built-in protection against overload, short circuit, and reverse polarity.

Designed for space-saving installations, the KL2408 mounts on a 35 mm DIN rail and provides reliable digital switching in distributed I/O systems using the K-Bus connection system.

Key Features

8 digital output channels (positive switching)
Rated voltage: 24 V DC (–15% / +20%)
0.5 A maximum current per channel
Short-circuit and overload protection
Reverse polarity protection on power contacts
500 V electrical isolation (K-Bus to field)
1-wire connection technology for simplified wiring
LED indicators for each channel for easy diagnostics
Compact design for dense control cabinets

Technical Specifications

Part Numbers:
– KL2408
– KL 2408
Output Type: Digital, 8 channels
Connection Technology: 1-wire
Nominal Voltage: 24 V DC (–15% / +20%)
Max Output Current (per channel): 0.5 A
Load Type: Ohmic, inductive, or lamp load
Reverse Polarity Protection: Yes
Short-Circuit Current: < 2 A
Breaking Energy (per channel): < 150 mJ
Electrical Isolation: 500 V (between K-Bus and field level)
Current Consumption (K-Bus): Typical 18 mA
Current Consumption (Power Contacts): Typical 60 mA + load current
Bit Width in Process Image: 8 outputs
Configuration: Automatic recognition, no addressing required
Dimensions (W × H × D): 12 × 100 × 68 mm
Operating Temperature: –25 °C to +60 °C
Storage Temperature: –40 °C to +85 °C
Protection Rating: IP20
Mounting: DIN-rail (35 mm)
Manufacturer: Beckhoff Automation
Weight: 0.10 – 0.23 kg (0.22 – 0.50 lb)
Packed dimensions: 12 × 7 × 6 cm (4.7 × 2.8 × 2.4 in)

Applications

Digital control of actuators in industrial panels
Distributed automation systems using K-Bus terminals
Compact OEM machines requiring efficient wiring
Reliable signal switching in industrial environments

Why Choose Beckhoff KL2408

Eight protected digital outputs in a compact terminal
Simplified wiring with 1-wire connection
Short-circuit and reverse polarity protection
Proven Beckhoff reliability and industrial design

Order Now

The Beckhoff KL2408 8-Channel Digital Output Terminal is available for order and ships worldwide.
