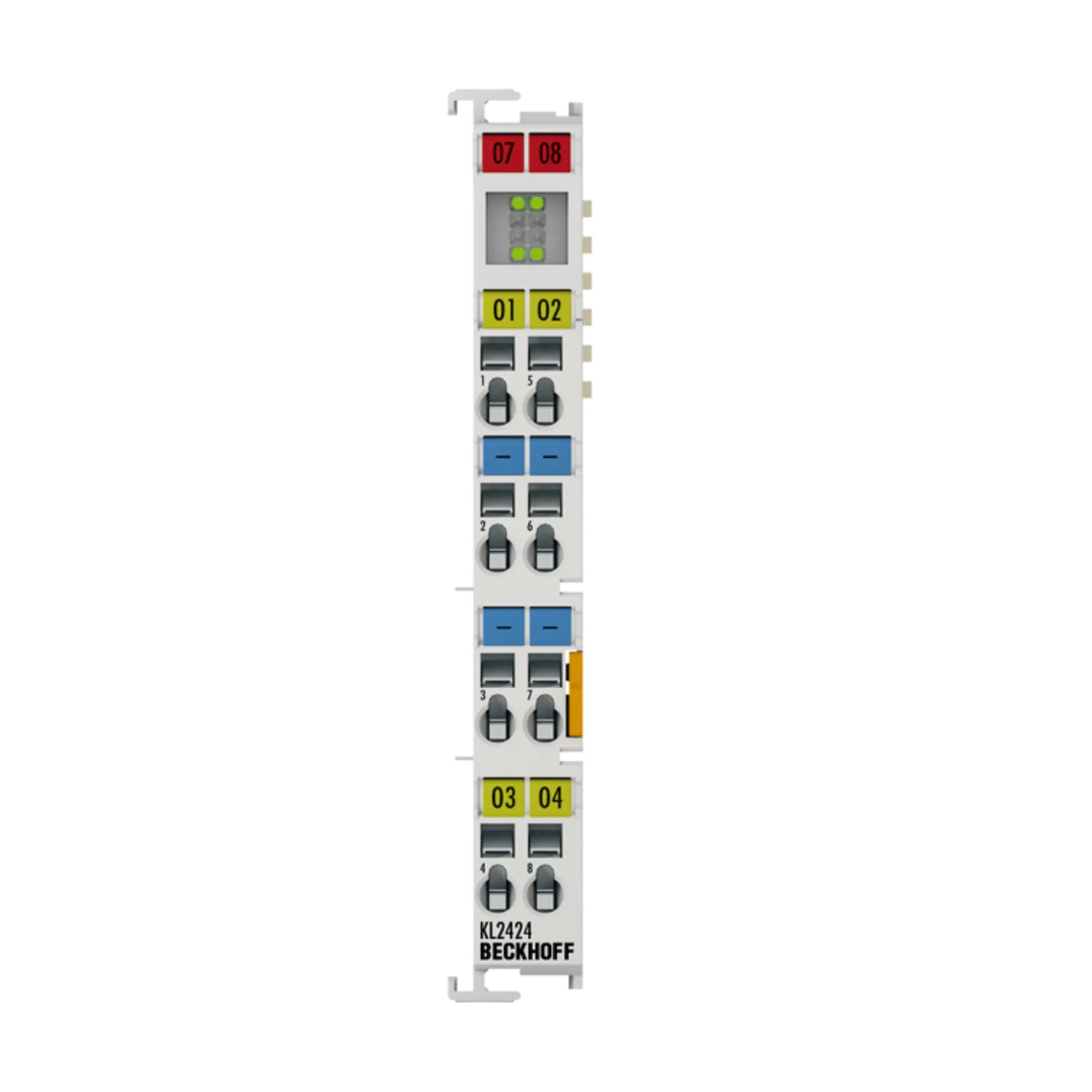

Beckhoff KL2424 4-channel digital output terminal 24 V DC 2 A

Beckhoff KL2424

Your Price:
$290.00
Add to wishlist
Checkout Secure
Order in the next to get it by

10+ Available in Stock

  • Image of Free Shipping on All Orders

    Free Shipping on All Orders
  • Image of 1 Year Warranty

    We will beat any price

    1 Year Warranty
  • Image of Experts Aavaiable 7/24/365

    Free shipping

    Experts Aavaiable 7/24/365
  • Image of 30 days money-back

    30 days money-back

Beckhoff KL2424 – Overview

The Beckhoff KL2424 is a 4-channel digital output terminal designed to drive 24 V DC loads with up to 2 A short-circuit-proof current per channel. It provides full galvanic isolation between the K-bus and field potentials, LED channel status indication, and a compact housing for space-efficient installation in modular control systems.

Key Features

  • Four digital output channels for 24 V DC loads

  • Up to 2.0 A short-circuit-proof current per channel

  • Reverse voltage protection

  • LED indicators for each channel

  • 500 V isolation between K-bus and field potential

  • Compact width (~12 mm) for high-density cabinets

Technical Specifications

  • Part Number: KL2424

  • Number of Outputs: 4

  • Nominal Voltage: 24 V DC (-15% / +20%)

  • Max. Output Current: 2.0 A (short-circuit-proof) per channel

  • Short-Circuit Current: < 70 A

  • Breaking Energy: < 1.7 J per channel

  • Connection Technology: 2-wire

  • Electrical Isolation: 500 V (K-bus / field potential)

  • Current Consumption (Power Contacts): typ. 30 mA + load

  • Current Consumption (K-bus): typ. 9 mA

  • Bit Width in Process Image: 4 output bits

  • Operating Temperature: -25 °C … +60 °C

  • Storage Temperature: -40 °C … +85 °C

  • Protection Rating: IP20

  • Housing Dimensions (W × H × D): Approx. 12 mm × 100 mm × 68 mm

  • Weight: Approx. 70 g

  • Mounting: 35 mm DIN-rail

  • Manufacturer: Beckhoff Automation

Applications

  • Driving actuators, solenoids, lamp loads or other 24 V DC devices in automation systems

  • Compact control cabinet designs where space is limited

  • Modular I/O systems requiring high-current digital outputs

  • Machine automation where reliable, protected switching is required

Why Choose Beckhoff KL2424

  • High current capacity (2 A per channel) in a slim module for efficient panel space use

  • Robust design with galvanic isolation protects both system and field loads

  • Clear LED indication on each channel for quick diagnostics

  • Trusted industrial-grade product from Beckhoff Automation with global shipping availability

Order Now

The Beckhoff KL2424 4-Channel Digital Output Terminal is available for order and ships worldwide.



New & Genuine Products – Factory Sealed At PLCpartssolution, all our products are 100% new, genuine, and come in original factory-sealed packaging. We guarantee authentic components that meet the highest industry standards for performance and reliability.
1-Year Warranty Included All new products sold by PLCpartssolution come with a 1-year warranty. We stand behind the quality and reliability of our parts, ensuring coverage against manufacturing defects under normal operating conditions.
Disclaimer: PLCpartssolution is an independent supplier of surplus and refurbished industrial automation products. We are not an authorized distributor, reseller, or representative of the brands listed on this website. All trademarks, brand names, and logos are the property of their respective owners. PLCpartssolution is not affiliated with, endorsed by, or approved by ABB, Fanuc, B&R, Rockwell Automation, Schneider Electric, Siemens, or any other manufacturers mentioned.
