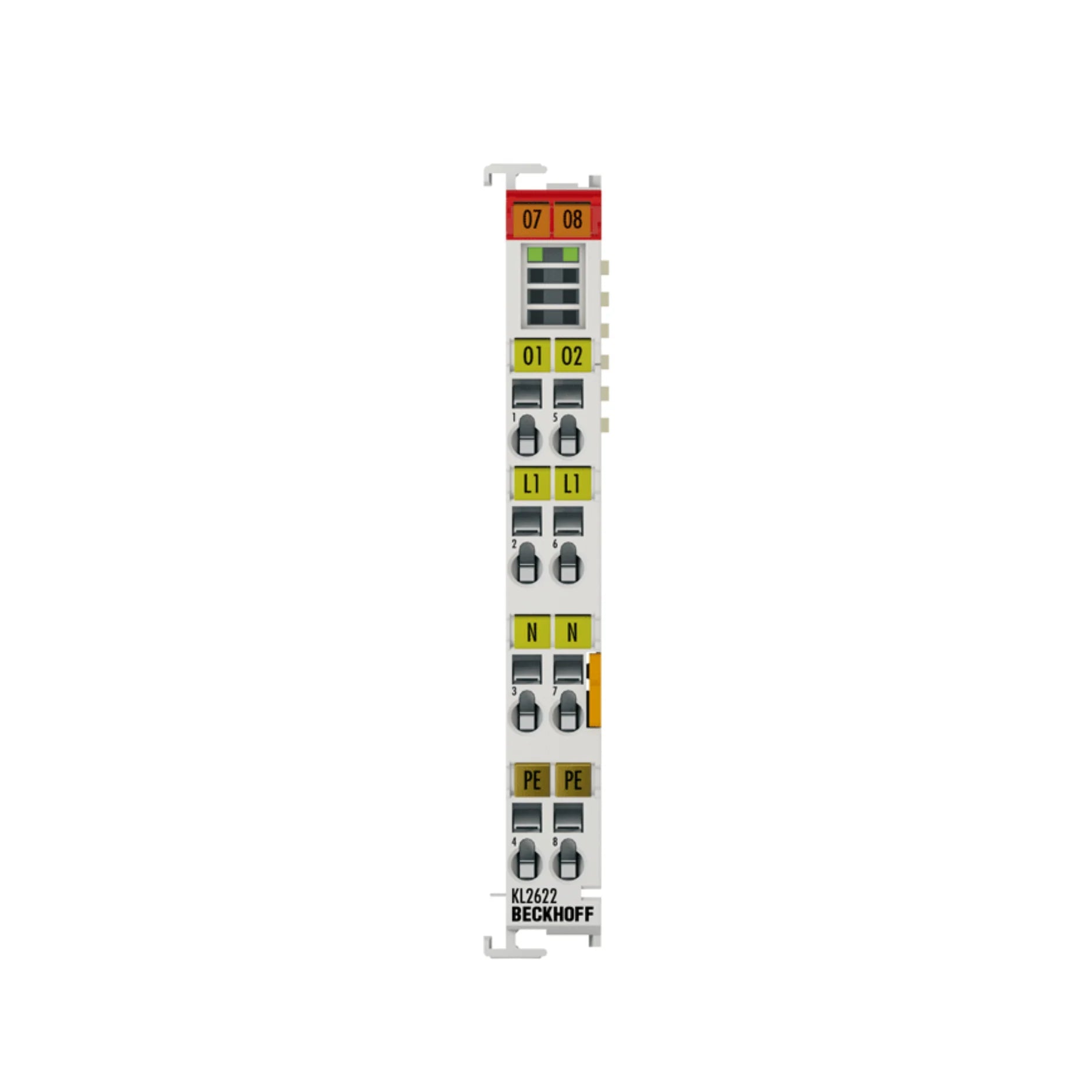

Beckhoff KL2622 2-channel relay output terminal 230 V AC 30 V DC

Beckhoff KL2622

SKU: KL2622
Your Price:
$124.00
Add to wishlist
Checkout Secure
Order in the next to get it by

10+ Available in Stock

  • Image of Free Shipping on All Orders

    Free Shipping on All Orders
  • Image of 1 Year Warranty

    We will beat any price

    1 Year Warranty
  • Image of Experts Aavaiable 7/24/365

    Free shipping

    Experts Aavaiable 7/24/365
  • Image of 30 days money-back

    30 days money-back

Beckhoff KL2622 – Overview

The Beckhoff KL2622 is a 2-channel relay output terminal with potential-free contacts, designed to switch mains or control voltages up to 230 V AC or 30 V DC. Each channel supports up to 5 A for ohmic loads, or 2 A for inductive loads, making this terminal suitable for direct control of actuators, lamps, or other switching loads in automation systems.

Key Features

  • Two relay outputs (make contacts), completely potential-free

  • Up to 5 A switching current per channel (ohmic loads)

  • Supports both 230 V AC and 30 V DC nominal voltages

  • Compact 12 mm housing width for high-density panel mounting

  • Signal LEDs for each channel for quick diagnostics

  • 500 V electrical isolation between K-bus and field potentials

  • DIN-rail mountable for efficient control cabinet integration

Technical Specifications

  • Part Number: KL2622

  • Number of Outputs: 2 (relay make contacts)

  • Nominal Voltage: 230 V AC or 30 V DC

  • Max. Output Current (ohmic): 5 A per channel

  • Max. Output Current (inductive): 2 A per channel

  • Minimum Permitted Load: 10 mA at 5 V DC

  • Electrical Isolation: 500 V (K-bus / field potential)

  • Current Consumption (K-bus): approx. 85 mA typical

  • Bit Width in Process Image: 2 output bits

  • Operating Temperature: -25 °C … +60 °C

  • Storage Temperature: -40 °C … +85 °C

  • Protection Rating: IP20

  • Housing Dimensions (W×H×D): 12 mm × 100 mm × 68 mm

  • Weight: Approx. 80 g

  • Mounting: 35 mm DIN-rail

  • Manufacturer: Beckhoff Automation

Applications

  • Switching mains or control voltages in industrial automation

  • Controlling actuators, lamps, solenoids or other loads up to 5 A

  • Panels where compact high-density output modules are needed

  • Modular I/O systems using Bus Terminal architecture

Why Choose Beckhoff KL2622

  • Compact dual-relay output module with high current capacity for automation loads

  • Potential-free contacts enable flexible wiring and safe network integration

  • High performance and reliable switching in a trusted industrial brand

  • Efficient use of space with 12 mm width, ideal for dense control cabinets

Order Now

The Beckhoff KL2622 2-Channel Relay Output Terminal is available for order and ships worldwide.



New & Genuine Products – Factory Sealed At PLCpartssolution, all our products are 100% new, genuine, and come in original factory-sealed packaging. We guarantee authentic components that meet the highest industry standards for performance and reliability.
1-Year Warranty Included All new products sold by PLCpartssolution come with a 1-year warranty. We stand behind the quality and reliability of our parts, ensuring coverage against manufacturing defects under normal operating conditions.
Disclaimer: PLCpartssolution is an independent supplier of surplus and refurbished industrial automation products. We are not an authorized distributor, reseller, or representative of the brands listed on this website. All trademarks, brand names, and logos are the property of their respective owners. PLCpartssolution is not affiliated with, endorsed by, or approved by ABB, Fanuc, B&R, Rockwell Automation, Schneider Electric, Siemens, or any other manufacturers mentioned.
