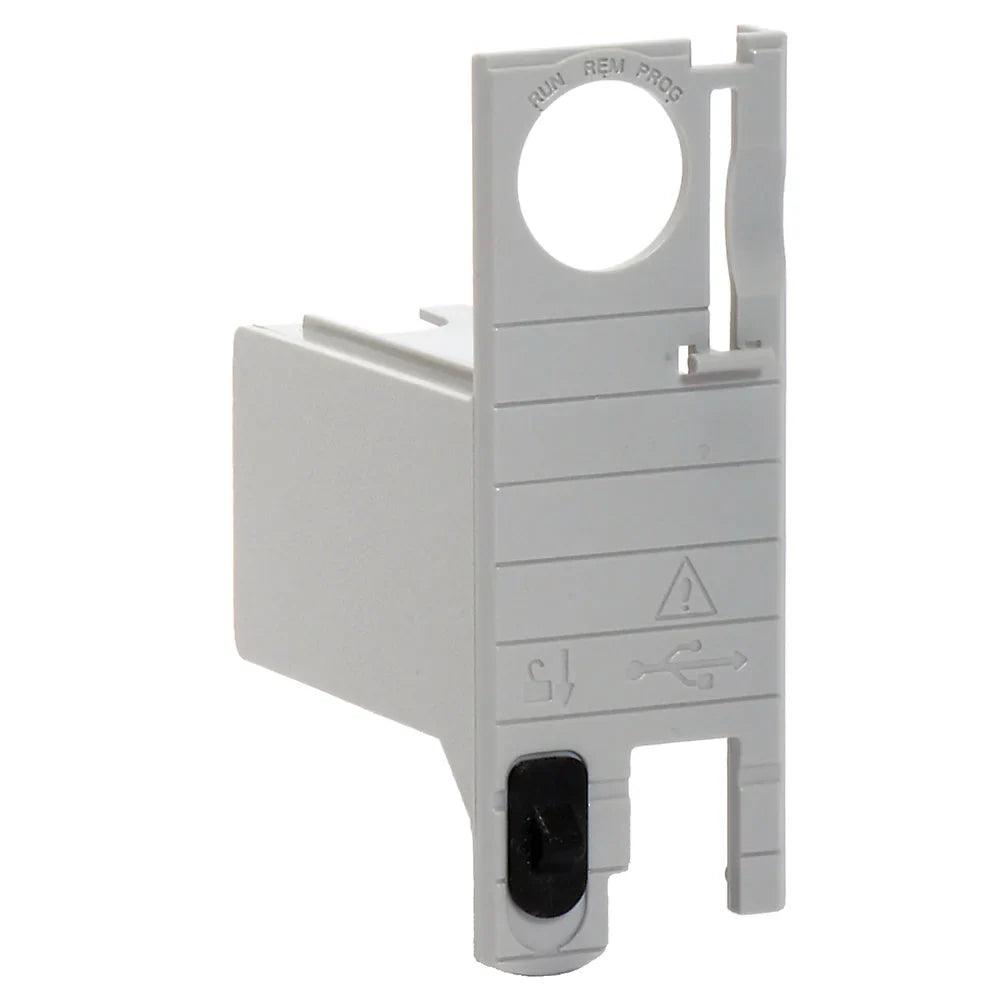

Allen-Bradley 1756-ESMCAP energy storage module, capacitor-based backup for ControlLogix 5580 controllers, battery-free memory retention.

Allen-Bradley 1756-ESMCAP

SKU: 1756-ESMCAP
Your Price:
$699.00
Add to wishlist
Checkout Secure
Order in the next to get it by

10+ Available in Stock

  • Image of Free Shipping on All Orders

    Free Shipping on All Orders
  • Image of 1 Year Warranty

    We will beat any price

    1 Year Warranty
  • Image of Experts Aavaiable 7/24/365

    Free shipping

    Experts Aavaiable 7/24/365
  • Image of 30 days money-back

    30 days money-back

Allen-Bradley 1756-ESMCAP | Capacitor-Based Energy Storage Module for ControlLogix 5580 Controllers

Overview

The Allen-Bradley 1756-ESMCAP is a capacitor-based energy storage module designed for use with ControlLogix 5580 controllers. Unlike traditional battery backups, it provides a maintenance-free solution to retain controller memory during power loss. This module is an environmentally friendly, long-life alternative to lithium batteries.

Key Features

  • Compatible with 5580 Controllers – Supports models such as 1756-L81E, L83E, L85E, etc.

  • Capacitor-Based Design – No battery maintenance or replacement needed

  • Retains Controller Memory – Ensures safe shutdown and data retention during power loss

  • Environmentally Friendly – No hazardous battery disposal

  • Compact & Easy to Install – Plugs directly into the controller

  • Maintenance-Free Operation – Long service life without user intervention

  • Hot-Swappable – Install without shutting down the system

Technical Specifications

  • Catalog Number: 1756-ESMCAP

  • Device Type: Energy storage module (capacitor)

  • Application: ControlLogix 5580 controllers

  • Installation: Direct plug-in to controller housing

  • Backup Duration: Sufficient for storing critical data on power loss

  • Recharge Time: Automatically recharges when power is restored

  • Maintenance Requirement: None

  • Operating Temperature: 0°C to +60°C (32°F to 140°F)

  • Storage Temperature: -40°C to +85°C (-40°F to +185°F)

  • Certifications: UL, CE, CSA, RoHS

Applications

  • Controller Memory Backup

  • Battery-Free Industrial Automation Systems

  • Environmentally Regulated Facilities

  • High-Reliability Manufacturing Systems

  • ControlLogix Redundancy and High Availability

Why Choose the 1756-ESMCAP?

  • No Battery Maintenance – Eliminate periodic battery replacement

  • Reliable Backup – Keeps data secure during power interruptions

  • Environmentally Safe – Complies with global environmental standards

  • Long-Life Design – Provides consistent, dependable operation

  • Easy Integration – Installs quickly into any 5580 controller

Order Now

In stock and ready for global shipping.

New & Genuine Products – Factory Sealed At PLCpartssolution, all our products are 100% new, genuine, and come in original factory-sealed packaging. We guarantee authentic components that meet the highest industry standards for performance and reliability.
1-Year Warranty Included All new products sold by PLCpartssolution come with a 1-year warranty. We stand behind the quality and reliability of our parts, ensuring coverage against manufacturing defects under normal operating conditions.
Disclaimer: PLCpartssolution is an independent supplier of surplus and refurbished industrial automation products. We are not an authorized distributor, reseller, or representative of the brands listed on this website. All trademarks, brand names, and logos are the property of their respective owners. PLCpartssolution is not affiliated with, endorsed by, or approved by ABB, Fanuc, B&R, Rockwell Automation, Schneider Electric, Siemens, or any other manufacturers mentioned.
