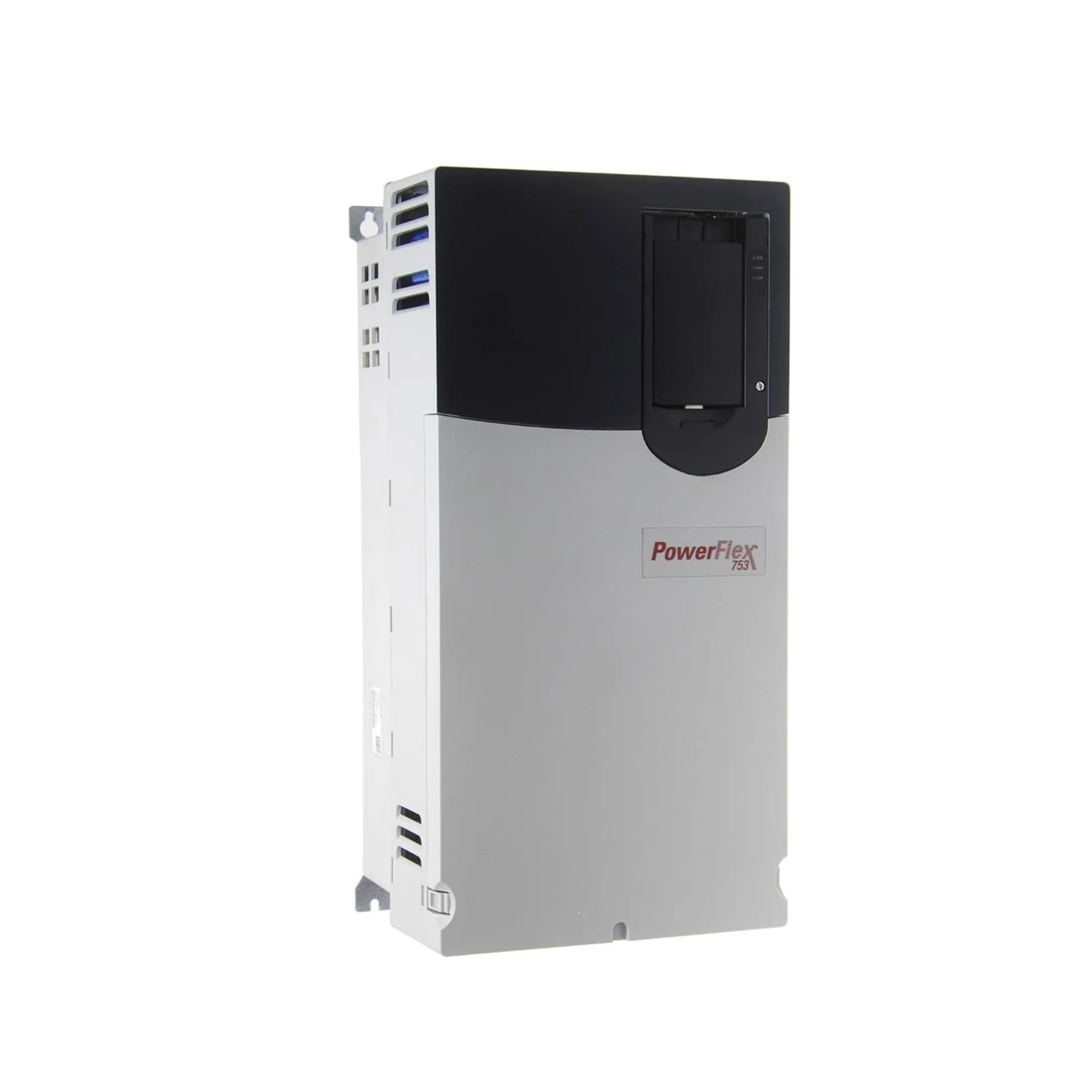

Allen-Bradley 20F11ND096AA0NNNNN
Overview
The Allen-Bradley 20F11ND096AA0NNNNN is a PowerFlex 753 AC drive engineered for 480V AC three-phase input, delivering up to 96 Amps of output current, supporting 75 HP normal duty and 60 HP heavy duty applications. Designed with embedded I/O, air cooling, and a panel mount Frame 5 enclosure, this drive features an open-type IP20 chassis, built-in EMC filter, and DB transistor for braking. Ideal for demanding industrial applications.
Key Features
-
Input Voltage: 480V AC, 3-phase
-
Output Current: 96 Amps
-
Power Rating: 75 HP (Normal Duty) / 60 HP (Heavy Duty)
-
Cooling Method: Air cooled
-
Mounting: Panel mount
-
Enclosure Type: Open Type (IP20)
-
Embedded I/O: Standard built-in
-
Filter: EMC Filter included
-
Braking: Dynamic Brake (DB) Transistor included
-
HIM Module: Not included (Blank)
Technical Specifications
-
Catalog Number: 20F11ND096AA0NNNNN
-
Series: PowerFlex 753
-
Frame Size: 5
-
Control Interface: Embedded I/O
-
Power Connection: AC input with DC terminals
-
Ambient Temperature Range: -10°C to +50°C (operating)
-
Certifications: UL, CE, cUL, RoHS
-
Cooling Method: Internal fan, air-cooled
-
HIM: Not included (option to add separately)
Applications
-
Conveyors and material handling
-
Pumps and fans in HVAC or water treatment
-
Industrial mixers and extruders
-
Packaging and bottling systems
-
Heavy-duty process control in manufacturing
Why Choose the 20F11ND096AA0NNNNN
-
High Power Handling: Up to 75 HP for robust motor control
-
Integrated Features: Built-in I/O and braking capabilities
-
Filtered Design: Reduces electrical noise in sensitive environments
-
Flexible Mounting: Standard panel-mount configuration
-
Reliable Performance: Designed for continuous industrial duty
Order Now
The Allen-Bradley 20F11ND096AA0NNNNN PowerFlex 753 AC drive is available and ships worldwide.
