Allen-Bradley 20G11RC011JA0NNNNN
Overview

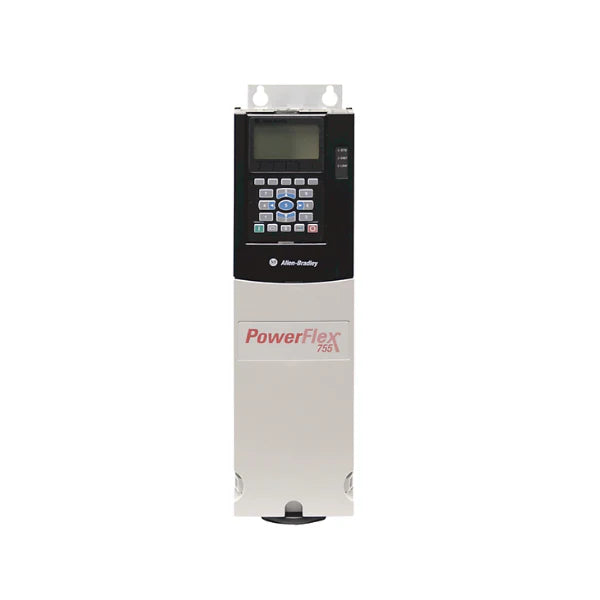

The Allen-Bradley 20G11RC011JA0NNNNN is a PowerFlex 755 AC packaged drive, designed for use in 400V three-phase systems. It delivers 11.5 A output current, supporting motors rated up to 5.5 kW (Normal Duty) or 4 kW (Heavy Duty). This compact, Frame 1, air-cooled drive includes an internal EMC filter, CM jumper, and DB transistor for braking. It comes in an open-type IP00 enclosure and does not include a HIM (Human Interface Module).
Key Features
-
Voltage: 400V AC, 3-phase
-
Output Current: 11.5 A
-
Power Rating:
-
5.5 kW (Normal Duty)
-
4 kW (Heavy Duty)
-
-
Frame Size: Frame 1
-
Cooling: Air cooled
-
Enclosure: Open type (IP00)
-
Input Type: AC with precharge
-
EMC Filtering: Internal
-
Dynamic Braking: DB transistor installed
-
HIM Module: Not included (blank front)
-
Control Modes: V/Hz, sensorless vector, full vector control
-
Motor Compatibility: Induction and permanent magnet motors
Technical Specifications
-
Catalog Number: 20G11RC011JA0NNNNN
-
Series: PowerFlex 755
-
Mounting: Panel mount
-
Frequency Range: 0–500 Hz
-
Ambient Operating Temperature: 0°C to 50°C (up to 70°C with derating)
-
Certifications: UL, cUL, CE, RoHS
-
Communication: Supports optional communication adapters (EtherNet/IP, etc.)
-
Brand: Allen-Bradley
-
Sub Brand: PowerFlex®
Applications
-
Material handling and conveyor systems
-
Packaging equipment
-
Fans, pumps, and mixers
-
Machine-level motion and speed control
-
OEMs requiring compact high-performance drives
Why Choose the 20G11RC011JA0NNNNN
-
Compact and efficient drive with high-performance output
-
Built-in EMC filter and DB transistor reduce installation time
-
Flexible motor control options including vector and V/Hz
-
Ideal for OEM and industrial panel applications
Order Now
The Allen-Bradley 20G11RC011JA0NNNNN PowerFlex 755 drive is in stock and ready to ship worldwide.
