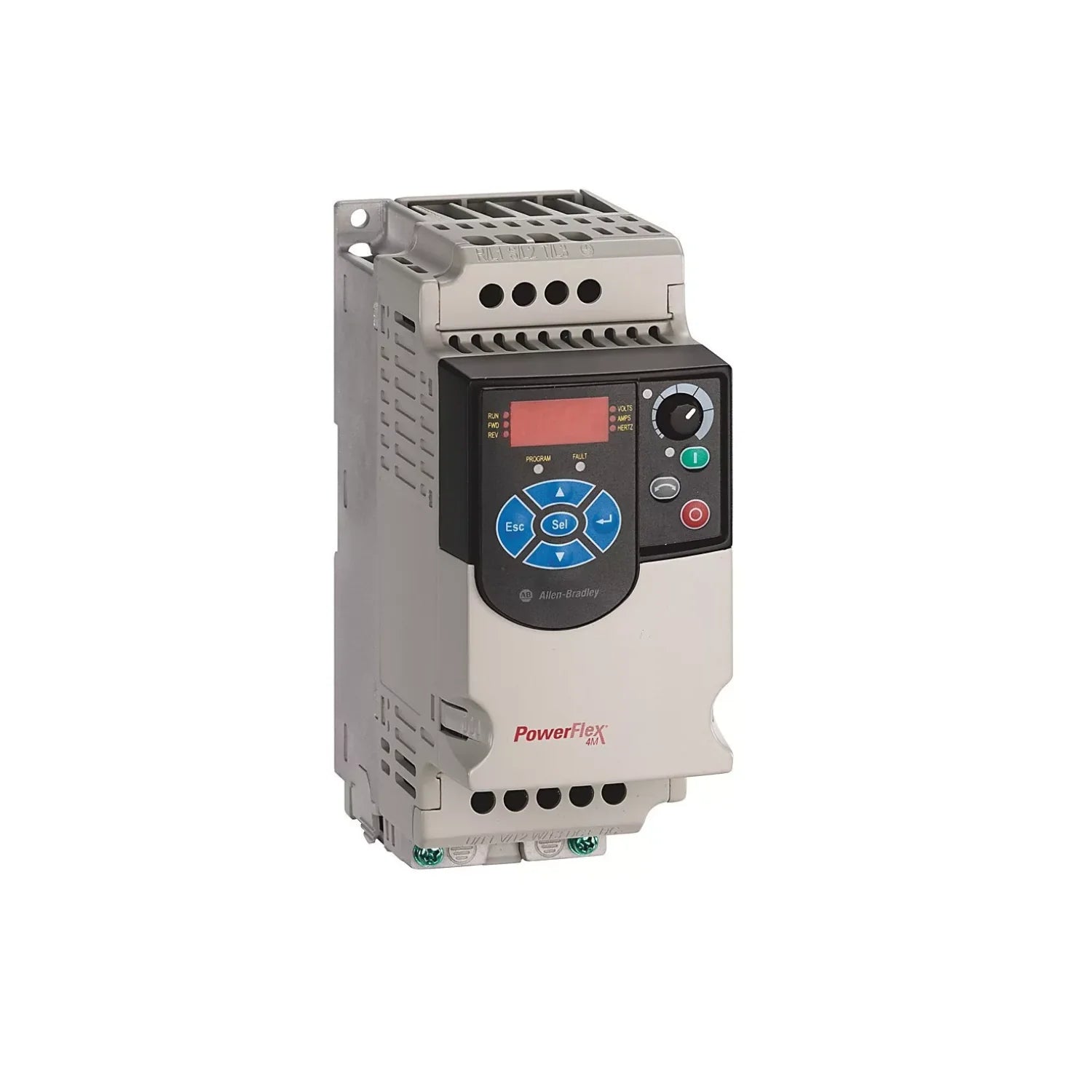

Allen-Bradley 22F-A2P5N103

Overview

The Allen-Bradley 22F-A2P5N103 is a compact and cost-effective PowerFlex 4M AC drive, engineered for low-horsepower motor control applications. It delivers 0.5 HP (0.37 kW) of output power, supports 240V AC single-phase input, and features an IP20 open frame design, making it ideal for panel installation.

Equipped with a fixed digital keypad and LED display, the drive provides intuitive local control and monitoring. This model does not include a CE filter or dynamic braking circuit, streamlining installation for basic applications.


Key Features

  • Power Rating: 0.5 HP / 0.37 kW

  • Input Voltage: 240V AC, single phase

  • Output Current: 2.5 Amps

  • Drive Family: PowerFlex 4M

  • Frame Size: A

  • Enclosure Type: IP20 (open-style)

  • User Interface: LED display with fixed digital keypad

  • EMC Filter: No CE-compliant filter

  • Braking Option: No internal brake chopper

  • Installation: DIN rail or panel mount


Technical Specifications

  • Catalog Number: 22F-A2P5N103

  • Input Frequency: 50/60 Hz

  • Output Frequency Range: 0–400 Hz

  • Control Method: V/Hz

  • Ambient Temperature Range: -10°C to +50°C (no derating)

  • Dimensions (HxWxD): ~142 x 72 x 142 mm

  • Certifications: UL, cUL, RoHS

  • Communication Options: Add-on modules available (optional)


Applications

  • Small pumps and fans

  • Conveyors

  • Mixers and agitators

  • Packaging equipment

  • Light-duty machinery with fixed speed ranges


Why Choose the 22F-A2P5N103

  • Compact & Reliable: Ideal for OEMs and space-constrained panels

  • Quick Setup: Fixed keypad and LED simplify configuration

  • Cost-Effective: Streamlined for essential VFD applications

  • Flexible Mounting: DIN rail or surface panel compatibility

  • Rockwell Quality: Compatible with broader PowerFlex family solutions


Order Now

The Allen-Bradley 22F-A2P5N103 PowerFlex 4M AC drive is available and ships worldwide.

New & Genuine Products – Factory Sealed At PLCpartssolution, all our products are 100% new, genuine, and come in original factory-sealed packaging. We guarantee authentic components that meet the highest industry standards for performance and reliability.
1-Year Warranty Included All new products sold by PLCpartssolution come with a 1-year warranty. We stand behind the quality and reliability of our parts, ensuring coverage against manufacturing defects under normal operating conditions.
Disclaimer: PLCpartssolution is an independent supplier of surplus and refurbished industrial automation products. We are not an authorized distributor, reseller, or representative of the brands listed on this website. All trademarks, brand names, and logos are the property of their respective owners. PLCpartssolution is not affiliated with, endorsed by, or approved by ABB, Fanuc, B&R, Rockwell Automation, Schneider Electric, Siemens, or any other manufacturers mentioned.

Description

Allen-Bradley 22F-A2P5N103

Overview

The Allen-Bradley 22F-A2P5N103 is a compact and cost-effective PowerFlex 4M AC drive, engineered for low-horsepower motor control applications. It delivers 0.5 HP (0.37 kW) of output power, supports 240V AC single-phase input, and features an IP20 open frame design, making it ideal for panel installation.

Equipped with a fixed digital keypad and LED display, the drive provides intuitive local control and monitoring. This model does not include a CE filter or dynamic braking circuit, streamlining installation for basic applications.


Key Features

  • Power Rating: 0.5 HP / 0.37 kW

  • Input Voltage: 240V AC, single phase

  • Output Current: 2.5 Amps

  • Drive Family: PowerFlex 4M

  • Frame Size: A

  • Enclosure Type: IP20 (open-style)

  • User Interface: LED display with fixed digital keypad

  • EMC Filter: No CE-compliant filter

  • Braking Option: No internal brake chopper

  • Installation: DIN rail or panel mount


Technical Specifications

  • Catalog Number: 22F-A2P5N103

  • Input Frequency: 50/60 Hz

  • Output Frequency Range: 0–400 Hz

  • Control Method: V/Hz

  • Ambient Temperature Range: -10°C to +50°C (no derating)

  • Dimensions (HxWxD): ~142 x 72 x 142 mm

  • Certifications: UL, cUL, RoHS

  • Communication Options: Add-on modules available (optional)


Applications

  • Small pumps and fans

  • Conveyors

  • Mixers and agitators

  • Packaging equipment

  • Light-duty machinery with fixed speed ranges


Why Choose the 22F-A2P5N103

  • Compact & Reliable: Ideal for OEMs and space-constrained panels

  • Quick Setup: Fixed keypad and LED simplify configuration

  • Cost-Effective: Streamlined for essential VFD applications

  • Flexible Mounting: DIN rail or surface panel compatibility

  • Rockwell Quality: Compatible with broader PowerFlex family solutions


Order Now

The Allen-Bradley 22F-A2P5N103 PowerFlex 4M AC drive is available and ships worldwide.
