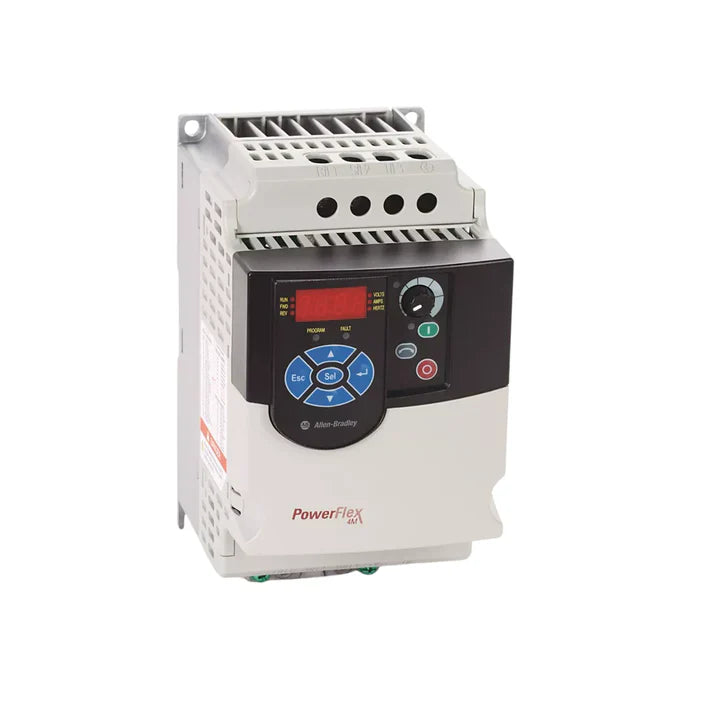

Allen-Bradley 22F-D024N114 PowerFlex 4M AC drive, 15 HP, 480V, Frame C, IP20, LED, CE filter, RS485

Allen-Bradley 22F-D024N114

SKU: 22F-D024N114
Your Price:
$1,580.00
Add to wishlist
Checkout Secure
Order in the next to get it by

10+ Available in Stock

  • Image of Free Shipping on All Orders

    Free Shipping on All Orders
  • Image of 1 Year Warranty

    We will beat any price

    1 Year Warranty
  • Image of Experts Aavaiable 7/24/365

    Free shipping

    Experts Aavaiable 7/24/365
  • Image of 30 days money-back

    30 days money-back

Allen-Bradley 22F-D024N114

Overview

The Allen-Bradley 22F-D024N114 is a high-performance PowerFlex 4M AC drive engineered for reliable three-phase motor control. With a 15 HP (11 kW) power rating and 24 A output, this Frame Size C model operates on 480V AC input. Designed with a built-in CE compliant filter, RS485 communication, and a fixed digital keypad with LED display, it's an ideal solution for demanding applications requiring compact performance and global standards compliance.

Key Features

  • Power Rating: 11 kW (15 HP)

  • Input Voltage: 380–480V AC, Three Phase

  • Output Current: 24 A

  • Frame Size: C

  • Display: LED with fixed digital keypad

  • Enclosure Type: IP20 / NEMA Type Open

  • Filter: Internal CE compliant filter

  • Communication: RS485

  • Control Method: V/Hz (Volts per Hertz)

Technical Specifications

  • Catalog Number: 22F-D024N114

  • Drive Family: PowerFlex 4M

  • Frequency Range: 0–400 Hz

  • Ambient Temp Range: -10°C to +50°C

  • Mounting Orientation: Vertical panel mount

  • Certifications: CE, UL, cUL, RoHS

  • Protection Features: Overvoltage, undervoltage, overload, short-circuit

  • Communication Protocol: RS485 (Modbus RTU)

Applications

  • Pumps, compressors, and blowers

  • Industrial fans and HVAC systems

  • Conveyors and material handling

  • Packaging and processing machines

  • OEM machinery requiring compact motor control

Why Choose the 22F-D024N114

  • High Capacity in Compact Form: 15 HP output in Frame C

  • CE Compliant Filter: Meets EMC standards out of the box

  • User-Friendly Display: LED with built-in keypad

  • Flexible Connectivity: Standard RS485 for remote integration

  • Reliable Performance: Part of the trusted PowerFlex 4M series

Order Now

The Allen-Bradley 22F-D024N114 PowerFlex 4M AC drive is available and ships worldwide.



New & Genuine Products – Factory Sealed At PLCpartssolution, all our products are 100% new, genuine, and come in original factory-sealed packaging. We guarantee authentic components that meet the highest industry standards for performance and reliability.
1-Year Warranty Included All new products sold by PLCpartssolution come with a 1-year warranty. We stand behind the quality and reliability of our parts, ensuring coverage against manufacturing defects under normal operating conditions.
Disclaimer: PLCpartssolution is an independent supplier of surplus and refurbished industrial automation products. We are not an authorized distributor, reseller, or representative of the brands listed on this website. All trademarks, brand names, and logos are the property of their respective owners. PLCpartssolution is not affiliated with, endorsed by, or approved by ABB, Fanuc, B&R, Rockwell Automation, Schneider Electric, Siemens, or any other manufacturers mentioned.
