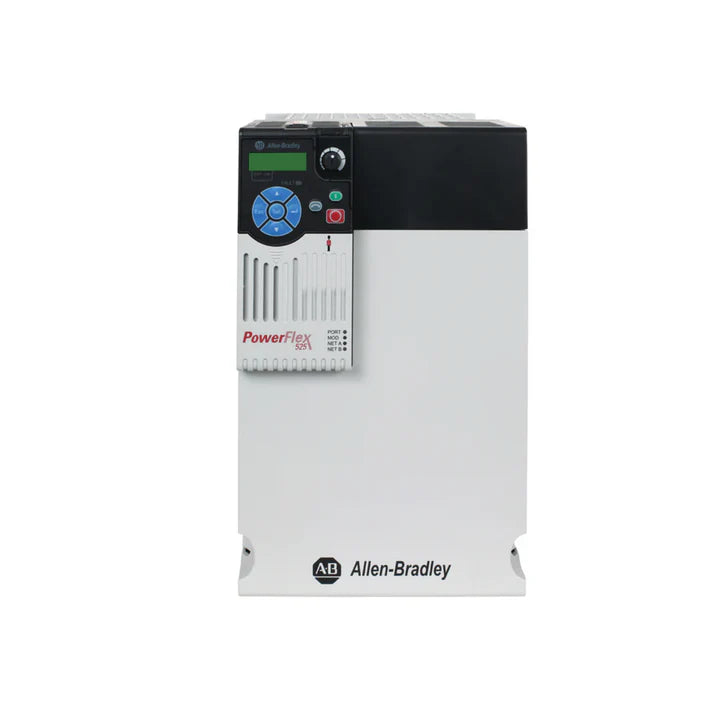

Allen-Bradley 25B-B062N104

Overview

The Allen-Bradley 25B-B062N104 is a high-capacity PowerFlex 525 AC drive built for advanced motor control in industrial automation. It operates on 240V AC, 3-phase input, delivering up to 62.1A output current, supporting motors up to 20 HP (15 kW) Normal Duty and 15 HP (11 kW) Heavy Duty. This model includes embedded EtherNet/IP and Safe Torque-Off (STO) safety functionality. Housed in a Frame E, IP20 open-type enclosure, it comes without an EMC filter, offering flexibility in system design.


Key Features

  • Power Rating:

    • 20 HP (15 kW) Normal Duty

    • 15 HP (11 kW) Heavy Duty

  • Input Voltage: 240V AC, 3-phase

  • Output Current: 62.1 Amps

  • Frame Size: E

  • Enclosure: IP20 / NEMA Open Type

  • Filter: No internal EMC filter

  • Brake IGBT: Included

  • Embedded Communications: EtherNet/IP, DSI, USB

  • Safety Function: Safe Torque-Off (STO) – SIL2, Cat 3

  • Control Modes: V/Hz, Sensorless Vector, Closed-Loop Vector, Permanent Magnet Motor Control


Technical Specifications

  • Catalog Number: 25B-B062N104

  • Series: PowerFlex 525

  • Frequency Range: 0–500 Hz

  • Cooling: Integral fan

  • Mounting: Panel mount

  • Ambient Operating Temperature: -20°C to +50°C

  • Certifications: UL, cUL, CE, RoHS, TUV

  • Programming: Connected Components Workbench (CCW), keypad, or external interfaces


Applications

  • High-power conveyors and pumps

  • Heavy-duty industrial machines

  • HVAC systems

  • OEM equipment requiring advanced motor control and Ethernet communication


Why Choose the 25B-B062N104

  • Handles high current and power loads in demanding environments

  • Built-in EtherNet/IP and STO simplify control and safety integration

  • Versatile motor control options including PM motor support

  • Space-saving design with wide application flexibility


Order Now

The Allen-Bradley 25B-B062N104 PowerFlex 525 AC drive is available and ships worldwide.

New & Genuine Products – Factory Sealed At PLCpartssolution, all our products are 100% new, genuine, and come in original factory-sealed packaging. We guarantee authentic components that meet the highest industry standards for performance and reliability.
1-Year Warranty Included All new products sold by PLCpartssolution come with a 1-year warranty. We stand behind the quality and reliability of our parts, ensuring coverage against manufacturing defects under normal operating conditions.
Disclaimer: PLCpartssolution is an independent supplier of surplus and refurbished industrial automation products. We are not an authorized distributor, reseller, or representative of the brands listed on this website. All trademarks, brand names, and logos are the property of their respective owners. PLCpartssolution is not affiliated with, endorsed by, or approved by ABB, Fanuc, B&R, Rockwell Automation, Schneider Electric, Siemens, or any other manufacturers mentioned.
