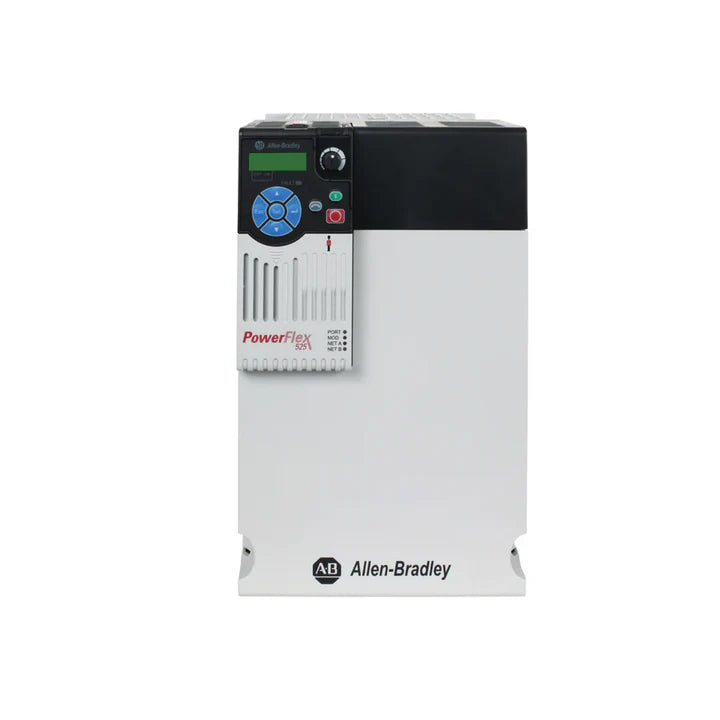

Allen-Bradley 25B-E027N104

Overview

The Allen-Bradley 25B-E027N104 is a PowerFlex 525 AC drive designed for high-performance and safety-critical motor control. It operates on 600V AC 3-phase input, delivers 27A output current, and supports motors up to 25 HP (18.5 kW). This model is housed in a Frame E, IP20 open-type enclosure, includes an integrated brake IGBT, and supports a wide range of motor control strategies including V/Hz, sensorless vector, closed-loop vector, and permanent magnet motor control. Embedded Safe Torque-Off (STO) functionality is certified to SIL2 / Cat 3.


Key Features

  • Power Rating: 25 HP (18.5 kW)

  • Input Voltage: 600V AC, 3-phase

  • Output Current: 27 Amps

  • Frame Size: E

  • Enclosure: IP20 / NEMA Type Open

  • Brake IGBT: Included

  • Safety Function: Safe Torque-Off (SIL2, Cat 3)

  • Motor Control Modes:

    • Volts per Hertz (V/Hz)

    • Sensorless Vector

    • Closed-loop Vector

    • Permanent Magnet Motor Control

  • Mounting Style: Panel mount

  • Keypad: Fixed LED keypad included (optional LCD available)


Technical Specifications

  • Catalog Number: 25B-E027N104

  • Series: PowerFlex 525

  • Frequency Range: 0–500 Hz

  • Cooling Method: Integral fan

  • Ambient Operating Temperature: -20°C to +50°C

  • Certifications: UL, cUL, CE, RoHS, TUV

  • Communications: Embedded EtherNet/IP, USB, DSI

  • Programming Interfaces: Connected Components Workbench (CCW), keypad, USB


Applications

  • Pumps, blowers, and fans

  • High-power material handling systems

  • OEM equipment with 600V motor requirements

  • Industrial systems requiring STO and braking capabilities


Why Choose the 25B-E027N104

  • Efficient 600V solution for 25 HP motor control

  • Integrated STO and brake IGBT for advanced safety and stopping

  • Multiple control modes including permanent magnet motors

  • Seamless EtherNet/IP connectivity and flexible programming options


Order Now

The Allen-Bradley 25B-E027N104 PowerFlex 525 AC drive is in stock and ships worldwide.

New & Genuine Products – Factory Sealed At PLCpartssolution, all our products are 100% new, genuine, and come in original factory-sealed packaging. We guarantee authentic components that meet the highest industry standards for performance and reliability.
1-Year Warranty Included All new products sold by PLCpartssolution come with a 1-year warranty. We stand behind the quality and reliability of our parts, ensuring coverage against manufacturing defects under normal operating conditions.
Disclaimer: PLCpartssolution is an independent supplier of surplus and refurbished industrial automation products. We are not an authorized distributor, reseller, or representative of the brands listed on this website. All trademarks, brand names, and logos are the property of their respective owners. PLCpartssolution is not affiliated with, endorsed by, or approved by ABB, Fanuc, B&R, Rockwell Automation, Schneider Electric, Siemens, or any other manufacturers mentioned.

Description

Allen-Bradley 25B-E027N104

Overview

The Allen-Bradley 25B-E027N104 is a PowerFlex 525 AC drive designed for high-performance and safety-critical motor control. It operates on 600V AC 3-phase input, delivers 27A output current, and supports motors up to 25 HP (18.5 kW). This model is housed in a Frame E, IP20 open-type enclosure, includes an integrated brake IGBT, and supports a wide range of motor control strategies including V/Hz, sensorless vector, closed-loop vector, and permanent magnet motor control. Embedded Safe Torque-Off (STO) functionality is certified to SIL2 / Cat 3.


Key Features

  • Power Rating: 25 HP (18.5 kW)

  • Input Voltage: 600V AC, 3-phase

  • Output Current: 27 Amps

  • Frame Size: E

  • Enclosure: IP20 / NEMA Type Open

  • Brake IGBT: Included

  • Safety Function: Safe Torque-Off (SIL2, Cat 3)

  • Motor Control Modes:

    • Volts per Hertz (V/Hz)

    • Sensorless Vector

    • Closed-loop Vector

    • Permanent Magnet Motor Control

  • Mounting Style: Panel mount

  • Keypad: Fixed LED keypad included (optional LCD available)


Technical Specifications

  • Catalog Number: 25B-E027N104

  • Series: PowerFlex 525

  • Frequency Range: 0–500 Hz

  • Cooling Method: Integral fan

  • Ambient Operating Temperature: -20°C to +50°C

  • Certifications: UL, cUL, CE, RoHS, TUV

  • Communications: Embedded EtherNet/IP, USB, DSI

  • Programming Interfaces: Connected Components Workbench (CCW), keypad, USB


Applications

  • Pumps, blowers, and fans

  • High-power material handling systems

  • OEM equipment with 600V motor requirements

  • Industrial systems requiring STO and braking capabilities


Why Choose the 25B-E027N104

  • Efficient 600V solution for 25 HP motor control

  • Integrated STO and brake IGBT for advanced safety and stopping

  • Multiple control modes including permanent magnet motors

  • Seamless EtherNet/IP connectivity and flexible programming options


Order Now

The Allen-Bradley 25B-E027N104 PowerFlex 525 AC drive is in stock and ships worldwide.
