Allen-Bradley 25B-E0P9N104
Overview

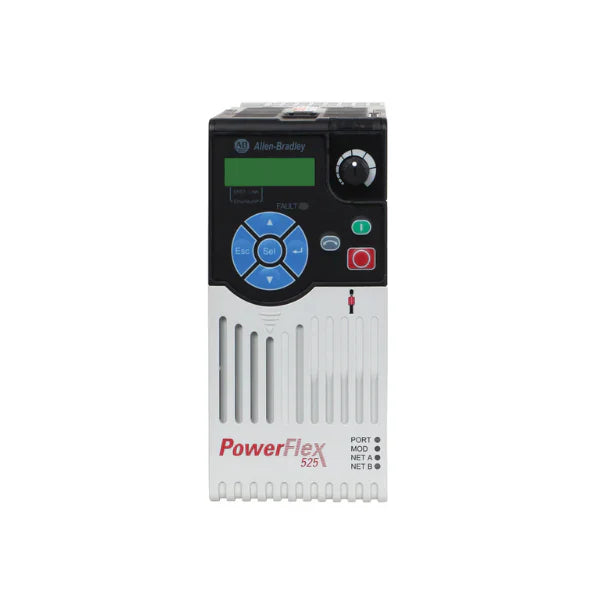

The Allen-Bradley 25B-E0P9N104 is a PowerFlex 525 AC drive engineered for compact, high-efficiency motor control. This model supports 600V AC 3-phase input, provides 0.9A output, and drives motors up to 0.5 HP (0.4 kW). It features advanced motor control modes including V/Hz, sensorless vector, closed-loop vector, and permanent magnet motor control. With built-in Safe Torque-Off (STO) functionality certified to SIL2 / Cat 3, and an integrated brake IGBT, this drive offers exceptional performance in a Frame A, IP20 open-type enclosure.
Key Features
-
Power Rating: 0.5 HP (0.4 kW)
-
Input Voltage: 600V AC, 3-phase
-
Output Current: 0.9 Amps
-
Frame Size: A
-
Enclosure Type: IP20 / NEMA Open
-
Brake IGBT: Included
-
Safety Function: Safe Torque-Off (SIL2, Cat 3)
-
Control Modes:
-
V/Hz (Volts per Hertz)
-
Sensorless Vector
-
Closed-loop Vector
-
Permanent Magnet Motor Control
-
-
Mounting: Panel mount
-
Display: Fixed LED keypad
Technical Specifications
-
Catalog Number: 25B-E0P9N104
-
Series: PowerFlex 525
-
Frequency Range: 0–500 Hz
-
Cooling Method: Fan-cooled
-
Operating Temperature: -20°C to +50°C
-
Certifications: UL, cUL, CE, RoHS, TUV
-
Communications: Embedded EtherNet/IP, USB, DSI
-
Programming Tools: Connected Components Workbench (CCW), USB, keypad
Applications
-
Small conveyors, fans, and mixers
-
OEM machinery with limited panel space
-
Safety-integrated control systems
-
General industrial motor control at 600V
Why Choose the 25B-E0P9N104
-
Compact, efficient 600V drive for fractional HP motors
-
STO safety integrated for enhanced protection
-
Brake IGBT supports dynamic motor stopping
-
Advanced motor control options with high performance in a small frame
Order Now
The Allen-Bradley 25B-E0P9N104 PowerFlex 525 AC drive is available and ships worldwide.
