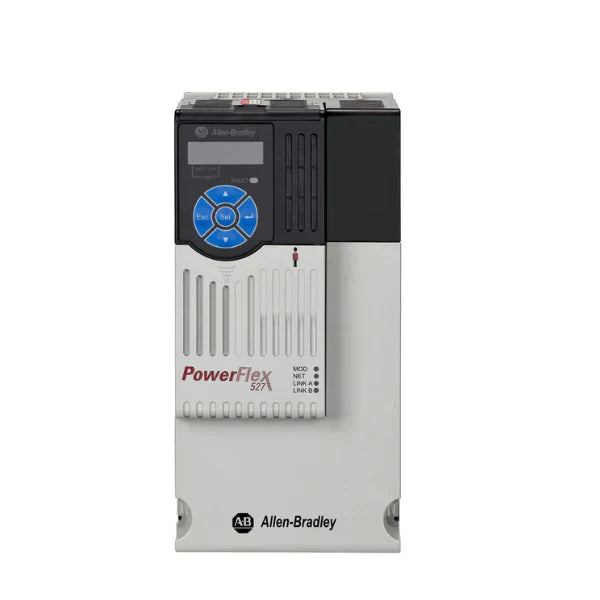

Allen-Bradley 25C-D017N114
Overview
The Allen-Bradley 25C-D017N114 is a PowerFlex 527 AC drive engineered for precision motor control in Logix-based automation systems. Delivering 7.5 kW (10 HP) at 480V three-phase input, it supports both Normal and Heavy Duty applications with a 17 A output current. This Frame C model includes dual-port embedded EtherNet/IP, Safe Torque Off (STO) for integrated safety, and a built-in EMC filter, all within an IP20/NEMA Open Type enclosure for flexible and compliant installation.
Key Features
-
Power Rating: 7.5 kW (10 HP) ND / HD
-
Input Voltage: 480V AC, 3-phase
-
Output Current: 17 A
-
Frame Size: C
-
Mounting Type: Panel
-
Enclosure Rating: IP20 / NEMA Open Type
-
Safety Function: Integrated STO (Safe Torque Off)
-
Networking: Dual-port embedded EtherNet/IP
-
Filter: Built-in EMC compliant filter
-
Control Modes: V/Hz, Sensorless Vector
-
Display: External HIM (optional)
Technical Specifications
-
Catalog Number: 25C-D017N114
-
Drive Family: PowerFlex 527
-
Cooling Method: Fan-cooled
-
Operating Temp Range: -10°C to +50°C
-
Protective Features: Overload, undervoltage, short-circuit, overtemperature
-
Certifications: CE, UL, cUL, RoHS
-
Power Factor: ≥ 0.95
-
Integration Platform: Studio 5000 Logix Designer
Applications
-
Industrial conveyors and pumps
-
Packaging and processing equipment
-
Machines with integrated safety needs
-
EtherNet/IP-connected automation systems
-
Noise-sensitive environments requiring EMC filtering
Why Choose the 25C-D017N114
-
Integrated EMC Filter: Reduces electrical noise
-
STO Safety Function: Protects personnel and equipment
-
Dual-Port EtherNet/IP: Simplifies communication architecture
-
Logix Integration: Streamlined setup and programming
-
Industrial Durability: Built for continuous, high-performance use
Order Now
The Allen-Bradley 25C-D017N114 PowerFlex 527 AC drive is available and ships worldwide.
Description
Allen-Bradley 25C-D017N114
Overview
The Allen-Bradley 25C-D017N114 is a PowerFlex 527 AC drive engineered for precision motor control in Logix-based automation systems. Delivering 7.5 kW (10 HP) at 480V three-phase input, it supports both Normal and Heavy Duty applications with a 17 A output current. This Frame C model includes dual-port embedded EtherNet/IP, Safe Torque Off (STO) for integrated safety, and a built-in EMC filter, all within an IP20/NEMA Open Type enclosure for flexible and compliant installation.
Key Features
-
Power Rating: 7.5 kW (10 HP) ND / HD
-
Input Voltage: 480V AC, 3-phase
-
Output Current: 17 A
-
Frame Size: C
-
Mounting Type: Panel
-
Enclosure Rating: IP20 / NEMA Open Type
-
Safety Function: Integrated STO (Safe Torque Off)
-
Networking: Dual-port embedded EtherNet/IP
-
Filter: Built-in EMC compliant filter
-
Control Modes: V/Hz, Sensorless Vector
-
Display: External HIM (optional)
Technical Specifications
-
Catalog Number: 25C-D017N114
-
Drive Family: PowerFlex 527
-
Cooling Method: Fan-cooled
-
Operating Temp Range: -10°C to +50°C
-
Protective Features: Overload, undervoltage, short-circuit, overtemperature
-
Certifications: CE, UL, cUL, RoHS
-
Power Factor: ≥ 0.95
-
Integration Platform: Studio 5000 Logix Designer
Applications
-
Industrial conveyors and pumps
-
Packaging and processing equipment
-
Machines with integrated safety needs
-
EtherNet/IP-connected automation systems
-
Noise-sensitive environments requiring EMC filtering
Why Choose the 25C-D017N114
-
Integrated EMC Filter: Reduces electrical noise
-
STO Safety Function: Protects personnel and equipment
-
Dual-Port EtherNet/IP: Simplifies communication architecture
-
Logix Integration: Streamlined setup and programming
-
Industrial Durability: Built for continuous, high-performance use
Order Now
The Allen-Bradley 25C-D017N114 PowerFlex 527 AC drive is available and ships worldwide.
