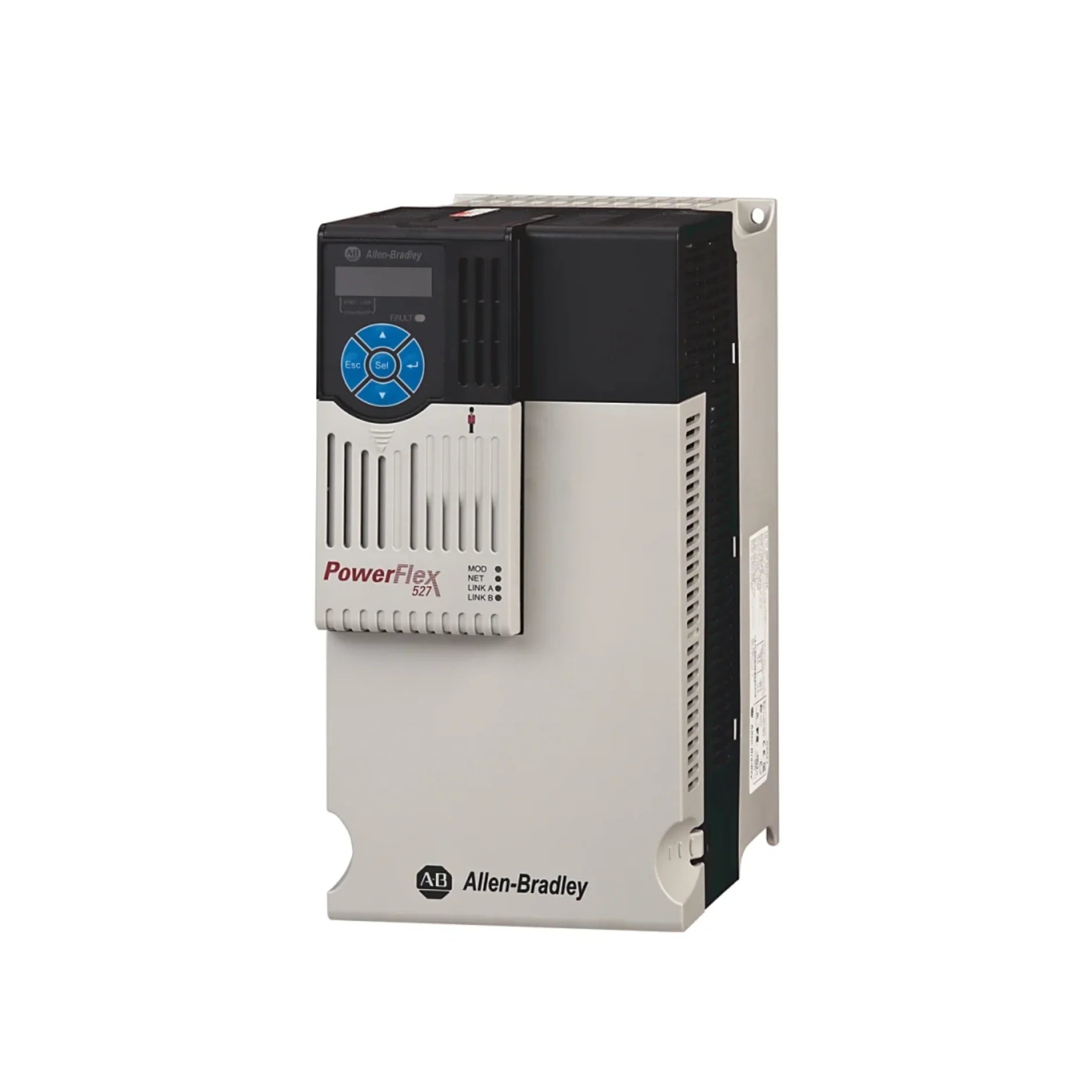

Allen-Bradley 25C-D024N114

SKU: 25C-D024N114
Your Price:
$2,890.00
Add to wishlist
Checkout Secure
Order in the next to get it by

10+ Available in Stock

  • Image of Free Shipping on All Orders

    Free Shipping on All Orders
  • Image of 1 Year Warranty

    We will beat any price

    1 Year Warranty
  • Image of Experts Aavaiable 7/24/365

    Free shipping

    Experts Aavaiable 7/24/365
  • Image of 30 days money-back

    30 days money-back

Allen-Bradley 25C-D024N114

Overview

The Allen-Bradley 25C-D024N114 is a robust PowerFlex 527 AC drive engineered for high-performance industrial motor control. With an output of 11 kW (15 HP) and 24 A, this Frame D drive operates on 480V three-phase input and supports both Normal and Heavy Duty ratings. It includes dual-port embedded EtherNet/IP, Safe Torque Off (STO) safety, and a built-in EMC filter, all within a compact IP20/NEMA Open Type housing, making it ideal for advanced automation systems.


Key Features

  • Power Rating: 11 kW (15 HP) ND / HD

  • Input Voltage: 480V AC, 3-phase

  • Output Current: 24 A

  • Frame Size: D

  • Mounting Style: Panel

  • Enclosure Type: IP20 / NEMA Open Type

  • Safety Feature: Integrated STO (Safe Torque Off)

  • Network Interface: Embedded dual-port EtherNet/IP

  • Filter: Internal EMC filter

  • Control Modes: V/Hz, Sensorless Vector

  • HIM Module: Optional (external)


Technical Specifications

  • Catalog Number: 25C-D024N114

  • Drive Family: PowerFlex 527

  • Cooling Method: Fan-cooled

  • Operating Temperature: -10°C to +50°C

  • Protection Functions: Overload, undervoltage, overtemperature, short-circuit

  • Certifications: UL, CE, cUL, RoHS

  • Power Factor: ≥ 0.95

  • Configuration Software: Studio 5000 Logix Designer


Applications

  • Heavy-duty conveyor systems

  • Pump and fan control

  • Automated manufacturing lines

  • Machinery requiring integrated safety

  • Systems in low-EMI industrial environments


Why Choose the 25C-D024N114

  • High Power Density: Supports up to 15 HP in Frame D

  • Integrated Safety: STO ensures operator and machine protection

  • Dual-Port Networking: Simplifies EtherNet/IP topology

  • EMC Filter Built-In: Meets industrial compliance standards

  • Logix Ready: Tight integration with Rockwell control systems


Order Now

The Allen-Bradley 25C-D024N114 PowerFlex 527 AC drive is available and ships worldwide.


New & Genuine Products – Factory Sealed At PLCpartssolution, all our products are 100% new, genuine, and come in original factory-sealed packaging. We guarantee authentic components that meet the highest industry standards for performance and reliability.
1-Year Warranty Included All new products sold by PLCpartssolution come with a 1-year warranty. We stand behind the quality and reliability of our parts, ensuring coverage against manufacturing defects under normal operating conditions.
Disclaimer: PLCpartssolution is an independent supplier of surplus and refurbished industrial automation products. We are not an authorized distributor, reseller, or representative of the brands listed on this website. All trademarks, brand names, and logos are the property of their respective owners. PLCpartssolution is not affiliated with, endorsed by, or approved by ABB, Fanuc, B&R, Rockwell Automation, Schneider Electric, Siemens, or any other manufacturers mentioned.
