Allen-Bradley 25B-E019N104 | High-Voltage AC Drive with Embedded EtherNet/IP and Safety
Overview

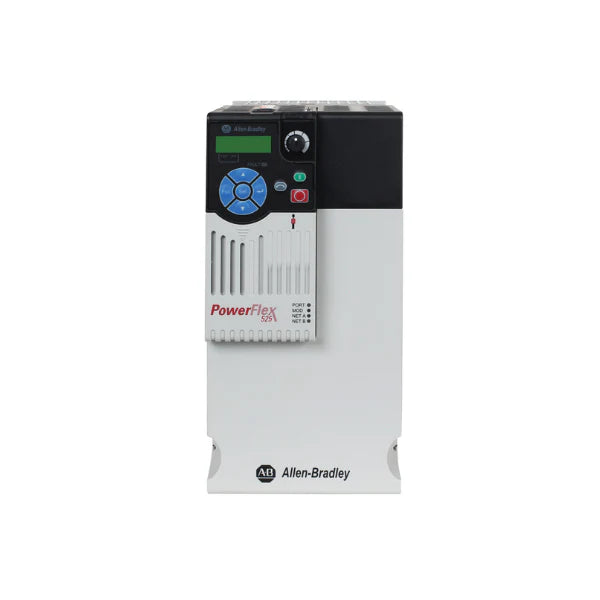

The Allen-Bradley 25B-E019N104 is a PowerFlex 525 variable frequency drive (VFD) designed for high-voltage 600V AC, 3-phase motor control applications. With an output capacity of 15 HP (11 kW) in both normal and heavy-duty use, this Frame D model integrates EtherNet/IP communications and Safe Torque Off (STO) functionality. It offers a compact, network-ready solution for demanding industrial applications without a built-in EMC filter.
Key Features
-
Input Voltage: 600V AC, 3-phase
-
Output Current: 19 Amps
-
Motor Power Rating:
-
11 kW / 15 HP (Normal & Heavy Duty)
-
-
Frame Size: D
-
Enclosure: IP20 / NEMA Open Type
-
Communications: Embedded EtherNet/IP and DSI
-
Functional Safety: Safe Torque Off (STO)
-
EMC Filter: Not included (no CE filter)
-
Control Modes:
-
Volts-per-Hertz (V/Hz)
-
Sensorless Vector Control
-
Closed Loop Vector Control (with optional encoder card)
-
-
User Interface: Integrated LCD keypad
-
USB Port: Built-in for easy configuration
-
Programming Software: Studio 5000, Connected Components Workbench (CCW)
-
Mounting Options: Panel or DIN rail
Technical Specifications
-
Catalog Number: 25B-E019N104
-
Frequency Range: 0–500 Hz
-
Input Frequency: 47–63 Hz
-
Digital Inputs: 7
-
Analog Inputs: 2
-
Relay Outputs: 1
-
Analog Outputs: 1
-
Ambient Temperature: -20°C to 50°C
-
Certifications: UL, cUL, CE (excluding EMC), RoHS
Applications
-
High-power conveyors
-
Large fans and blowers
-
Pump systems
-
Material handling equipment
-
Heavy industrial machinery
Why Choose the 25B-E019N104?
-
Supports high-voltage 600V systems with compact footprint
-
Embedded EtherNet/IP for seamless network integration
-
STO improves machine safety without additional wiring
-
Ideal for both normal and heavy-duty motor control
-
Backed by Rockwell Automation’s performance and reliability
Order Now
Now available and shipping globally.
