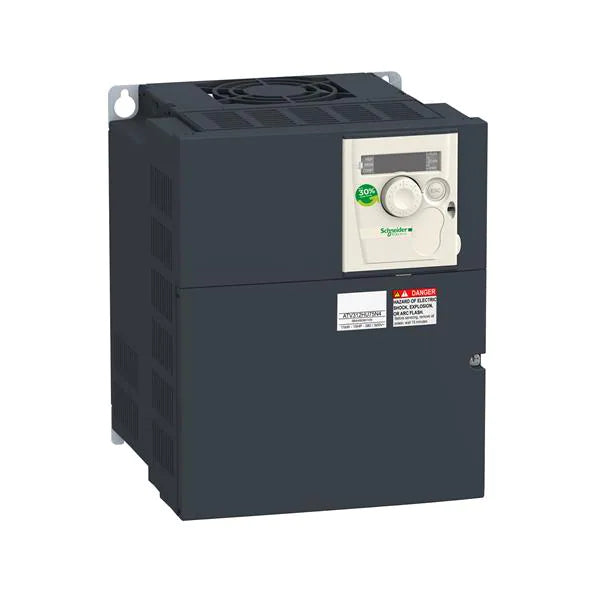

Schneider Electric ATV312HU55N4

SKU: ATV312HU55N4
Your Price:
$1,210.00
Add to wishlist
Checkout Secure
Order in the next to get it by

10+ Available in Stock

  • Image of Free Shipping on All Orders

    Free Shipping on All Orders
  • Image of 1 Year Warranty

    We will beat any price

    1 Year Warranty
  • Image of Experts Aavaiable 7/24/365

    Free shipping

    Experts Aavaiable 7/24/365
  • Image of 30 days money-back

    30 days money-back

Schneider Electric ATV312HU55N4

Overview

The Schneider Electric ATV312HU55N4 is a compact variable speed drive from the Altivar 312 series, designed to control motors up to 5.5 kW (7.5 HP) on a 3-phase 380–500 V supply. Engineered for OEM and general-purpose industrial use, it offers high performance, flexible installation, and simplified integration.


Key Features

  • Series: Altivar 312

  • Power Rating: 5.5 kW / 7.5 HP

  • Input Voltage: 3-phase, 380–500 V ±10%

  • Enclosure: IP20 (panel mounting)

  • Control Modes: V/F, sensorless vector control

  • Integrated Functions: PID control, braking, motor auto-tuning

  • Communication Protocols: Modbus, CANopen (integrated)

  • Display Interface: Optional remote keypad with LCD

  • Motor Types: Asynchronous motors


Technical Specifications

  • Model Number: ATV312HU55N4

  • Output Current: 13 A

  • Frequency Range: 0.5 to 500 Hz

  • Overload Capacity: 150% for 60 s

  • Switching Frequency: Adjustable up to 16 kHz

  • Cooling Method: Integrated fan

  • Dimensions (H×W×D): Approx. 232 × 130 × 152 mm

  • Weight: ~3.4 kg

  • Operating Temperature: –10 °C to 50 °C

  • Certifications: CE, UL, CSA, EAC


Applications

  • Conveyors and material handling

  • HVAC systems and small pumps

  • Packaging and bottling machines

  • Light-duty machine control

  • OEM equipment requiring compact drives


Why Choose the ATV312HU55N4

  • Compact and Versatile: Ideal for space-constrained panels

  • Easy to Configure: Built-in functions simplify setup

  • Reliable Operation: Designed for industrial environments

  • Integrated Communication: Modbus and CANopen ready

  • Energy Efficiency: Supports motor performance optimization


Order Now

The Schneider Electric ATV312HU55N4 is a reliable, compact drive for standard motor control in a wide range of applications. Available for global shipment.



New & Genuine Products – Factory Sealed At PLCpartssolution, all our products are 100% new, genuine, and come in original factory-sealed packaging. We guarantee authentic components that meet the highest industry standards for performance and reliability.
1-Year Warranty Included All new products sold by PLCpartssolution come with a 1-year warranty. We stand behind the quality and reliability of our parts, ensuring coverage against manufacturing defects under normal operating conditions.
Disclaimer: PLCpartssolution is an independent supplier of surplus and refurbished industrial automation products. We are not an authorized distributor, reseller, or representative of the brands listed on this website. All trademarks, brand names, and logos are the property of their respective owners. PLCpartssolution is not affiliated with, endorsed by, or approved by ABB, Fanuc, B&R, Rockwell Automation, Schneider Electric, Siemens, or any other manufacturers mentioned.

Description

Schneider Electric ATV312HU55N4

Overview

The Schneider Electric ATV312HU55N4 is a compact variable speed drive from the Altivar 312 series, designed to control motors up to 5.5 kW (7.5 HP) on a 3-phase 380–500 V supply. Engineered for OEM and general-purpose industrial use, it offers high performance, flexible installation, and simplified integration.


Key Features

  • Series: Altivar 312

  • Power Rating: 5.5 kW / 7.5 HP

  • Input Voltage: 3-phase, 380–500 V ±10%

  • Enclosure: IP20 (panel mounting)

  • Control Modes: V/F, sensorless vector control

  • Integrated Functions: PID control, braking, motor auto-tuning

  • Communication Protocols: Modbus, CANopen (integrated)

  • Display Interface: Optional remote keypad with LCD

  • Motor Types: Asynchronous motors


Technical Specifications

  • Model Number: ATV312HU55N4

  • Output Current: 13 A

  • Frequency Range: 0.5 to 500 Hz

  • Overload Capacity: 150% for 60 s

  • Switching Frequency: Adjustable up to 16 kHz

  • Cooling Method: Integrated fan

  • Dimensions (H×W×D): Approx. 232 × 130 × 152 mm

  • Weight: ~3.4 kg

  • Operating Temperature: –10 °C to 50 °C

  • Certifications: CE, UL, CSA, EAC


Applications

  • Conveyors and material handling

  • HVAC systems and small pumps

  • Packaging and bottling machines

  • Light-duty machine control

  • OEM equipment requiring compact drives


Why Choose the ATV312HU55N4

  • Compact and Versatile: Ideal for space-constrained panels

  • Easy to Configure: Built-in functions simplify setup

  • Reliable Operation: Designed for industrial environments

  • Integrated Communication: Modbus and CANopen ready

  • Energy Efficiency: Supports motor performance optimization


Order Now

The Schneider Electric ATV312HU55N4 is a reliable, compact drive for standard motor control in a wide range of applications. Available for global shipment.



Condition

New & Genuine Products – Factory Sealed At PLCpartssolution, all our products are 100% new, genuine, and come in original factory-sealed packaging. We guarantee authentic components that meet the highest industry standards for performance and reliability.

Warranty

1-Year Warranty Included All new products sold by PLCpartssolution come with a 1-year warranty. We stand behind the quality and reliability of our parts, ensuring coverage against manufacturing defects under normal operating conditions.

Disclaimer

Disclaimer: PLCpartssolution is an independent supplier of surplus and refurbished industrial automation products. We are not an authorized distributor, reseller, or representative of the brands listed on this website. All trademarks, brand names, and logos are the property of their respective owners. PLCpartssolution is not affiliated with, endorsed by, or approved by ABB, Fanuc, B&R, Rockwell Automation, Schneider Electric, Siemens, or any other manufacturers mentioned.
