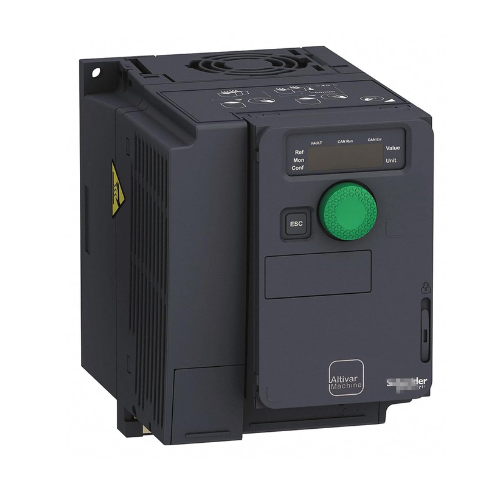

Schneider Electric ATV320D11N4C
Overview
The Schneider Electric ATV320D11N4C is a compact variable frequency drive (VFD) from the Altivar 320 series, rated at 1.1 kW (1.5 HP) and designed for use in harsh industrial environments. It supports three-phase 380–500 V input, features a rugged IP66 enclosure, and is suitable for wall-mounting in decentralized motor control systems. This model is ideal for applications requiring durability, flexibility, and reliable performance.
Key Features
-
Power Rating: 1.1 kW / 1.5 HP
-
Input Voltage: 380–500 V AC, three-phase
-
Output Frequency: 0.1 to 599 Hz
-
Control Modes:
-
V/Hz control
-
Sensorless flux vector control
-
-
Integrated Functions:
-
Safe Torque Off (STO)
-
Modbus and CANopen communication
-
-
Enclosure Rating: IP66 (dust-tight, water-resistant)
-
Mounting Type: Wall mount
-
Cooling Method: Natural convection
Technical Specifications
-
Catalog Number: ATV320D11N4C
-
Nominal Output Current: 3.4 A
-
Switching Frequency: Adjustable from 2 to 16 kHz
-
Motor Types Supported: Asynchronous and synchronous
-
Ambient Temperature Range: -10°C to +50°C (no derating)
-
Storage Temperature: -25°C to +70°C
-
Dimensions:
-
Width: 180 mm
-
Height: 233 mm
-
Depth: 172 mm
-
-
Weight: Approx. 4.2 kg
-
Certifications: CE, UL, CSA, EAC
Applications
-
Food and beverage processing
-
Outdoor and washdown environments
-
Packaging and conveyor systems
-
Pump and fan control
-
OEM machines operating in tough industrial conditions
Why Choose the ATV320D11N4C
-
IP66 Protection: Ideal for dusty or wet environments
-
Compact and Rugged: Space-saving, durable design for harsh conditions
-
Versatile Control: Suitable for a variety of motor types and applications
-
Built-In Safety: STO function for enhanced protection
-
Flexible Communication: Integrated Modbus and CANopen protocols
Order Now
The Schneider Electric ATV320D11N4C Altivar 320 variable speed drive is available and ships worldwide.
